11kw Ore Washing Plant / Mobile Silica Sand Washing Plant 40-140t/H Capacity
11kw Ore Washing Plant / Mobile Silica Sand Washing Plant 40-140t/H Capacity
11kw Ore Washing Plant / Mobile Silica Sand Washing Plant 40-140t/H Capacity
11kw Ore Washing Plant / Mobile Silica Sand Washing Plant 40-140t/H Capacity
Specifications
Brand Name :
Zoneding
Model Number :
XSD2815
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days after receiving advanced payment
Packaging Details :
Standard container or as customers' requirements
Product Name :
Silica Sand Washing Machines
Model :
XSD2815
Max input size :
10mm
Capacity :
40-140t/h
Power :
11kw
Overall dimension :
3650×2660×3000mm
Flowchart :
Provide
Application :
sandstone making, dam, oil well, construction site
Description

Ore Washing Plant Mobile Sand Washing Machine Silica Sand Washer

Brief Introduction of Silica Sand Washing Machine

XSD Sand Washing Machine is a kind of water washing style equipment to match sand making machine. It can reduce the dust and stone powder which mixs with the final sand, so Sand Washing Machine can improve the quality of the sand. Sand Washing Machine can ensure cleaning and dewatering effect because of novel-style sealing structure and reliable transmission device.

Application of Silica Sand Washing Machine

Silica sand washing machine is used to remove the dust in sand. It is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

Features of Silica Sand Washing Machine

1. Novel structure to ensure that the series of products is efficient and durable, washing and dehydration effect is good;

2. The fine sand is erosion rarely, the distribution and fineness modulus of washed building sand can reach national standard;

3. Simple and reasonable structure, almost no wearing parts.

Technical parameters:

Model

Impeller diameter

(mm)

Impeller rotaing speed

(r/min)

Capacity

(t/h)

Feed size

(mm)

Weight

(t)

Power

(KW)
XSD2212 Φ2200 1-1.5 15-35 ≤10 2 5.5
XSD2612 Φ2600 1-1.5 20-50 ≤10 2.68 5.5
XSD2812 Φ2800 1-1.5 30-65 ≤10 3 7.5
XSD3015 Φ3000 1-1.5 50-80 ≤10 3.4 11
XSD3215 Φ3200 1-1.5 80-120 ≤10 3.9 11
XSD3615 Φ3600 1-1.5 120-180 ≤10 4.5 15

Note: No further notice if the technical parameters change .

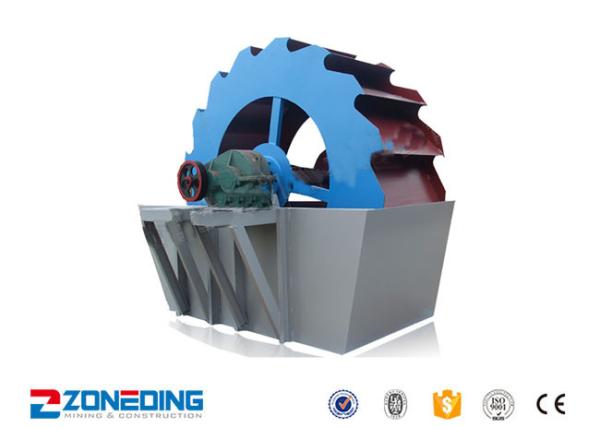

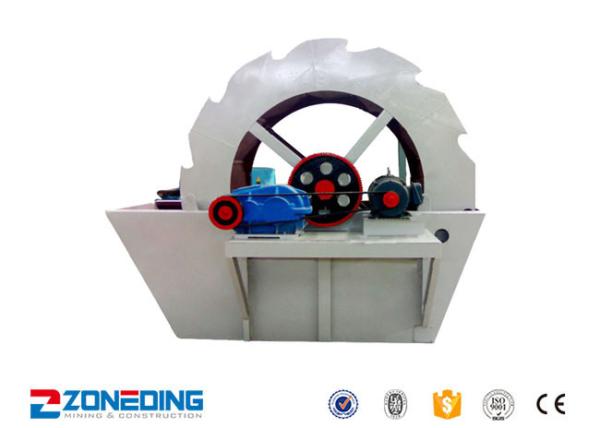

Product Picture Show:

11kw Ore Washing Plant / Mobile Silica Sand Washing Plant 40-140t/H Capacity
