Customized Color Rotary Drying Equipment 7.5×4 Kw Power CE Approval
Customized Color Rotary Drying Equipment 7.5×4 Kw Power CE Approval
Customized Color Rotary Drying Equipment 7.5×4 Kw Power CE Approval
Customized Color Rotary Drying Equipment 7.5×4 Kw Power CE Approval
Specifications
Brand Name :
Zoneding
Model Number :
2.7x7
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Three Cylinder Industrial Drying Equipment
Model :
2.7x7
Outer cylinder diameter :
2.7m
Outer cylinder length :
7m
Cylinder volume :
40.5m³
Cylinder rotary speed :
3-10r/min
Power :
7.5×4kw
condition :
new
Color :
Customerized
Machine type :
Rotary drying equipment
Description

Triple Pass Rotary Drum Dryer Industrial Drying Equipment/Rotary Dryer Coal

Equipment Introduction:
The three cylinder industrial drying equipment improves the internal structure on the basis of single drum

dryer, the pre drying of wet material is added before getting into the dryer and prolong the drying time of

wet material in the dryer.

Drying Materials:

Powder, coal, sand, clay, slag, etc.

Performance Characteristics:
1. Low outlet air temperature, longer service life of dust removal equipment.

2. Sizes of lump materials, particles, and powders are less than 20mm can be dried.

3. Gear driving is not required and it’s directly driven by roller, with higher mechanical efficiency.

4. Without the phenomenon of air leakage, the sealing difficulty is totally solved, and the installation can

be finished within a few hours.

Working Principle:
Materials get into the internal rotary drum from the feeding device, to realize the downstream drying,

materials are lifted up and down constantly by the inner layer lifting plates and the heat exchange is

realized under the form of spiral moving, materials move to the other side of the inner cylinder and then

get into the middle cylinder, and materials are lifted up and moved forward in the middle cylinder, by the

way of two steps forward and one step back, materials absorb the heat both coming from the inner

cylinder and the middle cylinder, meanwhile, the drying time is prolonged, and materials reach optimum

drying status at this stage. Material move the other end of the middle cylinder and then get into the

outer cylinder, the dried materials are quickly discharged from the cylinder under the function of hot

wind.

Technical Parameters:

Model

Cylinder data

Capacity(t/h)

Cylinder rotary speed

(r/min)

Power

(kW)

Outer cylinder diameter

(m)

Outer cylinder length(m)

Cylinder volume(m3)

River

sand

Fly ash

Slag

S6203

1.6

1.8

3.6

2-3

1-2

1-2

3-10

4

S6205

2

2

6.28

4-5

2-3

3-4

3-10

5.5

S6210

2.2

2.5

9.5

8-10

4-5

6-8

3-10

7.5

S6215

2.5

2.8

13.7

12-15

7-8

10-12

3-10

11

2×4

2

4

12.56

8-12

4-6

8-10

3-10

3×2

2×5

2

5

15.7

12-15

6-7

10-13

3-10

4×2

2×6

2

6

18.84

20-25

10-17

20-27

3-10

7.5×2

2.2×4.5

2.2

4.5

17.09

14-18

7-9

12-15

3-10

5.5×2

2.5×6

2.5

6.5

31.89

23-28

10-13

20-22

3-10

5.5×4

2.7×7

2.7

7

40.5

30-35

20-25

27-45

3-10

7.5×4

2.8×6

2.8

6

36.9

30-35

15-18

25-30

3-10

5.5×4

3×6

3

6

42.39

35-40

18-20

32-35

3-10

7.5×4

3×7

3

7

49.46

40-45

20-25

35-40

3-10

7.5×4

3.2×7

3.2

7

56.26

45-50

25-30

40-45

3-10

11×4

3.2×8

3.2

8

64.3

50-55

30-35

45-50

3-10

11×4

3.6×8

3.6

8

81.38

60-70

35-40

60-65

3-10

15×4

3.8×9

3.8

9

102

70-80

40-45

70-75

3-10

15×4

4×10

4

10

125.6

90-100

45-50

80-90

3-10

18.5×4

4.2×8.5

4.2

8.5

117.7

80-100

45-60

80-90

3-10

18.5×4

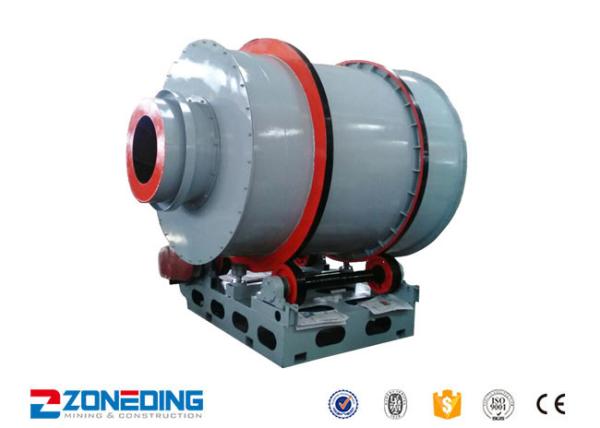

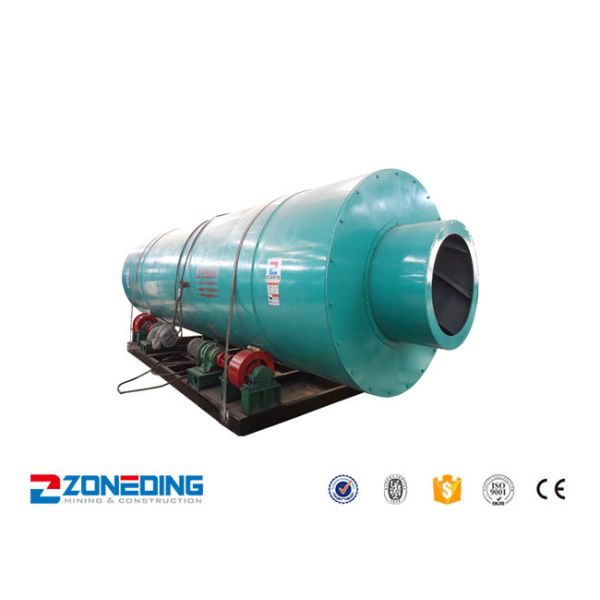

Product Picture Show :
Customized Color Rotary Drying Equipment 7.5×4 Kw Power CE Approval
