Specifications
Brand Name :
Zoneding
Model Number :
2PG900×900
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Roller Crusher
Capacity :
8-42t/h
Warranty :
quality certificate
Certificate :
ISO9001-2000
Condition :
New
Protection Method :
Spring
Description

High Pressure Roller Crusher Mine Crushing Equipment ,Double Roller Crusher For Coal

Brief Introduction:

Roll crusher is commonly used in the cement, chemical industry, electricity, metallurgy, building materials, refractory matter and other industries. Roller crusher mainly crush materials of medium hardness such as chalk, slag, coke, coal.

Working Principle:

Roller Crusher is made up of two cylinderical rolls which are installed horizontally. The two rolls rotate in different directions, materials fall on top of the rollers and enter crushing chamber under the action of roll surface friction to be crushed by the rollers, and the final product is discharged from outlet. The crushing process is continuous. The crusher has strong discharging force, so even wet materials can also be discharged.

Features of Roller Crusher:

1. Available for ore dressing, chemical, cement, refractories, abrasive, building materials industries.

2. With the more excellent effect than general stave machinery.

3. Finely crushing all kinds of ore and rock below the high, medium hardness, which can make the minimum grain size below 100 mesh.

4. Stable operation, easy maintenance, low cost and output size adjustable.

Technical Parameters:

Model

Diameter of roller

(mm)

Length of roller

(mm)

Max. feeding size

(mm)

Discharging size

(mm)

Capacity

(t/h)

 Roller number

Rotating speed

(r/min)

Power

(KW)

Weight

(t)

Overall Dimension

(L×W×H)(mm
2PG400×250 400 250 ≤25 2-8 5-10 2 180 2×5.5 1.8 1215×834×830
2PG610×400 610 400 ≤40 2-25 13-40 2 75 2×15 4.5 3600×1590×1170
2PG600×750 600 750 ≤40 2-25 60-125 2 65 2×22 6.5 3560×1910×1005
2PG900×900 900 900 ≤50 2-30 70-150 2 41 2×37 15 5665×2530×1646
2PG900×1200 900 1200 ≤50 2-30 90-120 2 41 2×45 18 5665×2830×1646

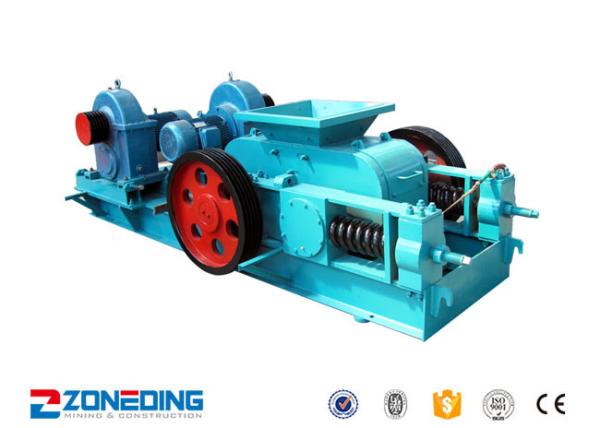

Product Picture Show :

High Pressure Mining Crusher Equipment / Double Roller Crusher For Coal
