Mining Mini Jaw Crusher Rock Jaw Crusher Production Line 90 - 110kw Power
Mining Mini Jaw Crusher Rock Jaw Crusher Production Line 90 - 110kw Power
Specifications
Brand Name :
Zoneding
Model Number :
PEV750×1100
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
production Name :
Jaw Crusher
Specification :
PEV150x250
Max Input size :
640mm
Outlet size :
80-190mm
model :
140-320t/h
Power :
90-110kw
Overall dimension :
3750×2580×3180mm
Weight :
24t
Description

Mining 150x250 Mini Jaw Crusher Rock Jaw Crusher Production Line

Application:

Stone mining, metallurgy industry,

Features:

1. The deep crushing cavity increases the feeding capacity and output capacity.

2. High crushing ratio, homogeneous final product size.

3. Adjust the discharge opening through gasket, more convenient.

4. Lubricate system is safe and reliable, easy to change the spare parts.

Brief Introduction of Jaw Crusher :

PEV Series Mining Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance strength of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry. Comparing with traditional Jaw Crusher, it has larger capacity and crushing ratio, bigger range of input size, more even product size, and easier maintenance.

Technical parameters:

Model

Max Input size

(mm)

Outlet size

(mm)

Capacity

(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight (t)

PEV400×600

340

40-80

20-65

30-37

2500×1750×1950

8.5

PEV500×750

425

45-150

45-107

45-55

3100×1980×2290

11.5

PEV600×900

510

75-180

100-200

55-75

3450×2360×2780

17

PEV750×1100

640

80-190

140-320

90-110

3750×2580×3180

24

PEV860×1100

730

100-200

200-500

110-132

4870×2850×3170

32

PEV900×1200

760

100-220

220-600

110-132

3500×2850×3290

48

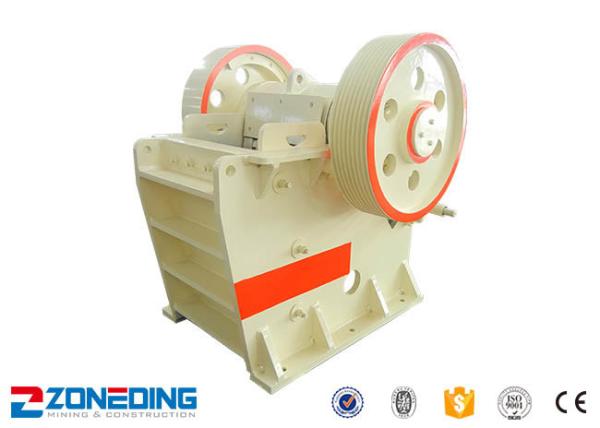

Product Picture Show:

Mining Mini Jaw Crusher Rock Jaw Crusher Production Line 90 - 110kw Power
