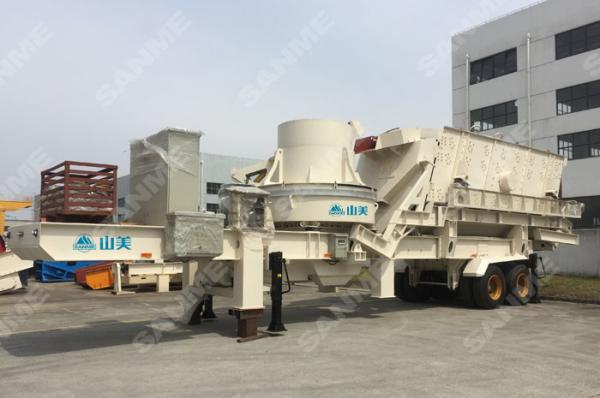

VSI Portable Crushing Plants 80-250t/H Capacity 21.6-33.2T Easy Operation
VSI Portable Crushing Plants 80-250t/H Capacity 21.6-33.2T Easy Operation
Specifications
Brand Name :
SANME
Model Number :
PP5000VSI,PP5000VSIS,PP6000VSI,PP6000VSIS,PP7000VSI,PP7000VSIS
Certification :
ISO&CE
Place of Origin :
Shanghai, China
MOQ :
Negotiate
Payment Terms :
T/T, L/C
Delivery Time :
2 months
Price :
Negotiate
Supply Ability :
30 sets per Month
Packaging Details :
Standard container, spare parts will be packed in wooden cases
Capacity(t/h) :
80-250t/h
Max feeding size :
65-80mm
Application :
Stone mining, metallurgy industry, building material, highway, railway, and chemical,etc.
Weight :
21.6-33.2T
Product Type :
VSI Crusher,Mobile crusher,Portable VSI Crusher
Raw materials :
River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.
Warranty :
1 YEAR
Description

VSI Portable Crushing Plants 80-250t/H Capacity 21.6-33.2T Easy Operation

Technology Advantages of PP Series Portable VSI Crushers:

1. High-performance VSI series Vertical Impact Crushers;

2. Vehicle-mounted feeder, vibrating screen,belt conveyor;

3. Traction steering shaft, convenient for highway transportation;

4. Vehicle mounting support, fast and convenient for installation in the site;

5. Integration of the mating motor and control box.

Working principle of PP Series Portable VSI Crushers:

Material preselected by the feeder, and the VSI impact crusher makes the sand production. A closed-circuit system is formed through the vibrating screen, which realizes materials cycle broken and can reduces processing sectors effectively. The final material is discharged by belt conveyor to make continuous crushing operations.

Structural composition:

All parts of the vertical shaft impact mobile crushing plant are fully vehicle-mounted including: solid frame, vertical shaft impact crusher, feeder, vibrating screen, belt conveyor, motors and control boxes etc.

Product Data

Model PP5000VSI PP5000VSIS PP6000VSI PP6000VSIS PP7000VSI PP7000VSIS
Transport dimensions
Length(mm) 9800 11280 11500 15470 14000 15420
Width(mm) 2490 2780 2780 2780 3300 2780
Height(mm) 4200 4100 3850 4180 4160 4250
Weight(kg) 21600 28000 22100 32600 23200 33200
Axle weight(kg) 14600 19200 15100 22300 15100 21700
King pin weight(kg) 7000 8800 7000 10300 8100 11500
VSI Crushers
Model VSI-5000 VSI-5000 VSI-6000 VSI-6000 VSI-7000 VSI-7000
Feed opening(mm) 65(80) 65(80) 70(100) 70(100) 70(100) 70(100)
Throughput capacity range(t/h) 80-150 80-150 120-250 120-250 180-350 180-350
Screen
Model 3YK1548 3YK1860 3YK2160
BELT CONVEYOR
Model B650*6.5 B800*7.2 B800*6.7 B1000*8.6 B1000x7.2 B1000x7.2
Number of Axles 1 2 2 2 3 2

PP series portable crushing plants.pdf
