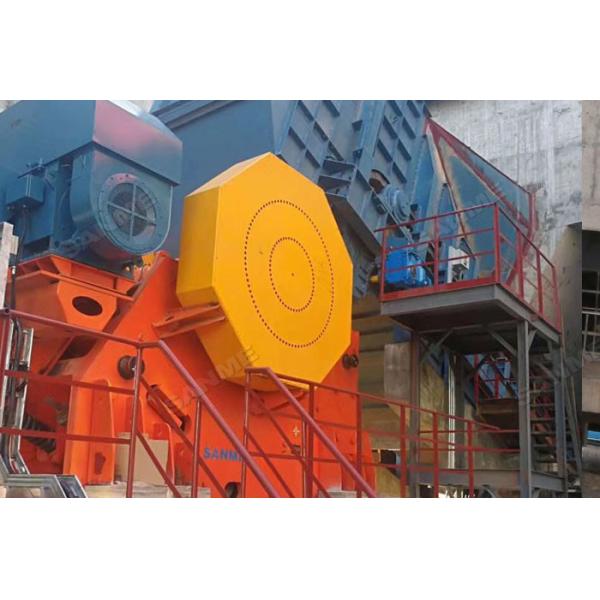

Railroad 450kw 700t/H Feeding 2100mm Jaw Rock Crusher
Main Features of Jaw Crusher:
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.
WORKING PRINCIPLE OF JC SERIES JAW CRUSHER
The motor drives belt and pulley. The movable jaw swings up and down before and after through the eccentric shaft. When the movable pushes the movable jaw plate to the fixed jaw plate, the material is crushed or split into pieces. When the movable jaw and movable jaw plate springs back in the effect of eccentric shaft, the material previously have been crushed discharges from the discharge opening of the lower part. With the motor continuously rotating, the movable jaw breaks and discharges material periodically to achieve mass production.
Technical Data of JC Series Jaw Crusher:
| Model | Size of Feed Opening(mm) | Discharge Range(mm) | Capacity(t/h) | Motor Power(kw) | Weight (Excluding Motor)(kg) |
| JC231 | 510x800 | 40-150 | 50-250 | 55-75 | 9052 |
| JC340 | 600x1020 | 60-175 | 85-300 | 75-90 | 16460 |
| JC3540 | 650x1060 | 110-225 | 120-400 | 75-90 | 16872 |
| JC440 | 760x1020 | 70-200 | 120-520 | 90-110 | 27810 |
| JC443 | 850x1100 | 80-215 | 170-625 | 110-160 | 34722 |
| JC549 | 950x1250 | 110-250 | 260-810 | 132-160 | 50308 |
| JC5149 | 1100x1250 | 160-300 | 350-900 | 132-160 | 50550 |
| JC555 | 1070x1400 | 125-250 | 360-920 | 160-200 | 58907 |
| JC5155 | 1170x1400 | 225-350 | 600-1100 | 160-200 | 60162 |
| JC649 | 1100x1250 | 125-280 | 385-920 | 160-200 | 55954 |
| JC659 | 1200x1500 | 150-350 | 400-1200 | 200-250 | 90089 |
| JC663 | 1200x1600 | 150-350 | 500-1450 | 220-250 | 90789 |
| JC771 | 1500x1800 | 150-350 | 600-1800 | 315-400 | 124413 |
| JC983 | 1800x2100 | 175-350 | 700-2100 | 355-450 | 180000 |
