CE 8.8T Jaw Rock Crusher 400-800t/H Concrete Jaw Crusher
CE 8.8T Jaw Rock Crusher 400-800t/H Concrete Jaw Crusher
Specifications
Brand Name :
TONGHUI
Model Number :
PEX
Place of Origin :
ZHEJIANG
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
30 days
Packaging Details :
The machine is first fixed with iron plates to prevent sliding during transportation,and then wrapped with packaging film.The packaging is not bumped during transporation,and then reinforced with wooden boards.
Color :
customized
Capacity :
5-1000t
Size :
According to the model
Weight :
8.8T
Condition :
New
Powered by :
Electrical motor
packaging details :
The machine is first fixed with iron plates to prevent sliding during transportation,and then wrapped with packaging film.The packaging is not bumped during transporation,and then reinforced with wooden boards.
Type :
jaw crusher rock crusher primary crusher
Description

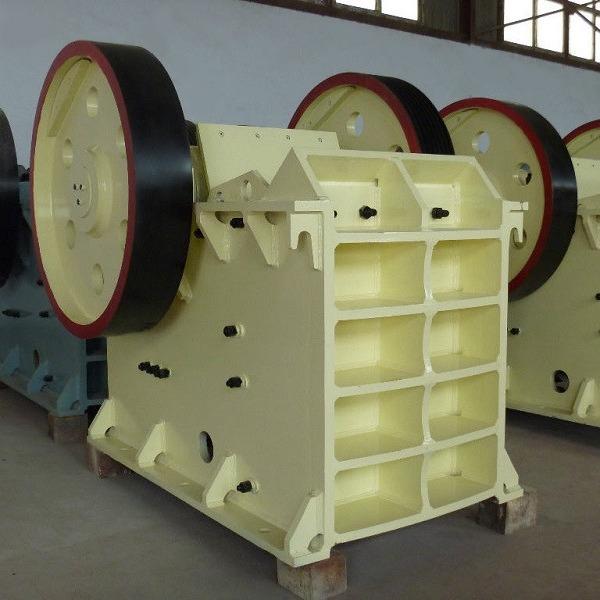

Jaw Crusher Machine Stone Crusher Rock Crushing Machine

Production Description:
Jaw Crusher Machine Stone Crusher Rock Crushing Machine is applied to fine crushing of various material of which compressive strength is less than or equal to 320Mpa, is applied to relatively small feeding material granularity and relatively small discharging gate, and is fitted for the secondary crushing. Hongji provides a complete line of stone production; the output is widely used in road, bridge, house, high building, railway highway, water project as the type of construction material, such as aggregate, foundation stone, etc.
Main Features:
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.

ModelFeed Opening SizeMax. Feed SizeCapacityPowerOverall Size(L*W*H)Weight
PEX250*400250*400mm210mm5-20t/h15kW1450*1300*1296mm2800kg
PEX250*1000250*1000mm210mm16-51t/h30kW1992*1530*1380mm6500kg
PEX250*1200250*1200mm210mm25-60t/h37kW2192*1900*1430mm7700kg
PEX300*1300300*1300mm250mm16-104t/h55kW2192*2000*1430mm9000kg
PE400*600400*600mm340mm16-55t/h30kW1565*1732*1586mm6500kg
PE500*750500*750mm420mm32-83t/h55kW1890*1916*1870mm10300kg
PE600*900600*900mm500mm48-120t/h55kW2305*1876*2298mm15500kg
PE750*1060750*1060mm630mm115-208t/h110kW2472*2450*2840mm28000kg
PE870*1060870*1060mm660mm180-210t/h110kW2660*2556*2800mm30500kg
PE900*1200900*1200mm750mm139-300t/h160kW3800*3166*3045mm46000kg
PE1200*15001200*1500mm1020mm400-800t/h220kW4800*3200*4120mm92000kg

Our Services:

Pre-Sale Service:

1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.

After-Sale Service:

1) After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.
2) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
