1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
Specifications
Max. Feed Size :
200mm
Dimension(L*W*H) :
Standard
Processing Capacity :
150-1100t/h
Voltage :
220V/380V
Applied Material :
All Kinds Of Materials
After-sale Service :
Technical Support
Description

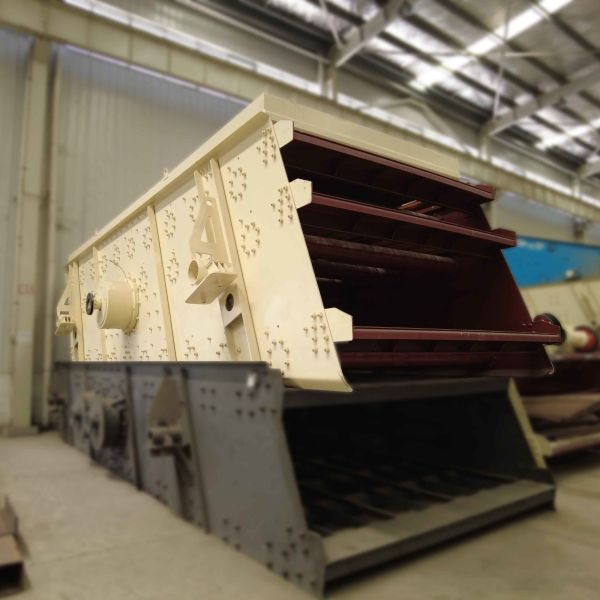

Eccentric Block Type Vibrating Screens Machine For Limestone

1100t/h Eccentric Block Type Vibrating Screen Machine For LimestoneDescription

Eccentric Block Type Vibrating Screens Machine For Limestone is a new type of vibrating screen designed by our company in combination with the optimized design of production site.According to customer demand, we can provide two-layer and three-layer series vibrating screen.It adopts cylinder type eccentric shaft excitation and eccentric block to adjust the amplitude.

Advantages

  • The vibrating screen adopts eccentric shaft and eccentric block structure, which makes the amplitude adjustable and ensures higher screening efficiency;1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
  • It can use the wire screen or polyurethane screen (tension type and modular type) with different mesh size.
  • All can be assembled with different aperture modular screen;
  • Flange side plate, beam and supporting base are connected with high-strength bolts. So that there is no welding stress existed.
  • Vibration spring with steel spring makes the vibrating screen service life longer.

  • The vibration exciter has been designed with block eccentric, external modular and integrated, and can be lubricated by oil lubrication or thin oil automatic lubrication.

Parameter

MODEL Descks Mesh Size(mm) Double
Amplitude(mm)		 Vibrating
Frequency
(r/min)		 Max. Feed Size(mm) Capacity(t/h) Power(kw)
YA2170 2/3 3-150 7/9 800 ≤200 100-750 37/45kw
YA2470 2/3 3-150 7/9 800 ≤200 150-950 37/55kw
YA3070 2/3 3-150 7/9 800 ≤200 150-1100 37/45kw
YA3080 2/3 3-150 7/9 800 ≤200 150-1100 45/55/2x30kw

1100t/h Eccentric Block Type Vibrating Screen Machine For Limestone
