600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
600m Geological Exploration Truck Mounted Drilling Machine
Specifications
Place of Origin :
CHINA
Brand Name :
OEM
Certification :
ISO,CE
Supply Ability :
Based on the detailed quotation
Packaging Details :
Wooden cases standard export package
MOQ :
1 set
Price :
Negotiation
CNC or Not :
Normal
Drilling Speed :
7M/Hour
Voltage :
380V
Dimension(L*W*H) :
5m*3.5m*5m
Drilling depth :
600m
Drilling diameter :
75-300mm
Spindle speed :
30-1050r/min
Spindle stroke :
600mm
Winch lifting :
3000kg
Drill mast height :
6.5m
Application :
Water Well Drill, Geological Exploration
Truck type :
482
Truck power :
121kw
Weight :
6T
Power :
39KW
Delivery Time :
10-20 days working days
Payment Terms :
T/T, L/C, T/T, Western Union
Description

Geological Exploration Truck Mounted Drilling Machine

Main Features

1. Drills up to 600m deep, 75-300mm diameter , trailer mounted.

2. hydraulic system: Hydraulic mast, Hydraulic spindle.

3. BW160/BW250 Mud Pump.high pressure and big flow.

4.Rig is Skid mounted,can move back-and-forth on the base.

3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.

4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.

5. It is a full set of machine with all 600m accessory can be used upon arrival.

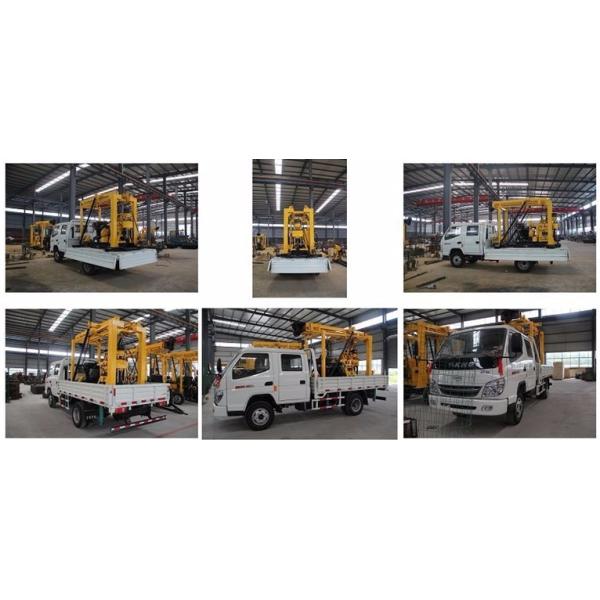

Detailed pictures

Product Application

Drill for Water well, Geological exploration / investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.

Specifications

Drilling depth

200m

600m

Drilling diameter

300-75mm

300-75mm

Drilling angle

90-75degree

90-75degree

Spinlde

Sindle speed

64-557r/min

30-1050r/min

Spindle stroke

450mm

600mm

Winch

Max lifting

1600kg

3000kg

Rolling lines

35m

Lifting speed

0.12-0.95m/s

0.3-1.9m/s

Line diameter

12.5mm

12.5mm

Drill mast height

6.5m

6.5m

Diesel engine

14.7kw/2200rmp

39kw/2400rmp

Mud pump

BW160

BW250

Truck type

4*2

4*2

Truck diesel

70KW

121KW

600m Geological Exploration Truck Mounted Drilling Machine

600m Geological Exploration Truck Mounted Drilling Machine

600m Geological Exploration Truck Mounted Drilling Machine

600m Geological Exploration Truck Mounted Drilling Machine
