Four Wheel 150m Portable Water Well Borehole Drilling Rig
Four Wheel 150m Portable Water Well Borehole Drilling Rig
Specifications
Place of Origin :
CHINA
Brand Name :
OEM
MOQ :
1 set
Price :
Negotiation
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Type :
Rotary Drilling Rig
Power Type :
Diesel
Dimension(L*W*H) :
5425*2250*2470 mm
Weight :
6000kg
Hole Dia :
115-300mm
Depth :
260 m
For Rock :
6-20 F
Usage :
Water Well
Air Pressure :
1.05-3.0 Mpa
Air Consumption :
16-30 m3/min
Rotation Torque (Max.) :
3900 N.m
Rotation Speed :
0-100 rpm
Lifting Power :
6.5 T
Mud Pump :
BW450/5
Height from the Ground(Max.) :
320
Selling Units :
Single item
Single package size  :
20X20X20 cm
Single gross weight :
60.000 kg
Certification :
ISO,CE
Packaging Details :
Wooden cases standard export package
Delivery Time :
10-20 days working days
Payment Terms :
T/T, L/C, T/T, Western Union
Supply Ability :
Based on the detailed quotation
Description

Four Wheel 150m Portable Water Well Borehole Drilling Rig

Product Description

SLY510 Borehole Drilling Rig is lightweight, efficient, multi-purpose drilling equipment, whichcan use air, foam or mud rotary for percussive drilling according to different textures. It is widelyused in industrial and agricultural water conservancy projects, such as drilling wells, testing wells orother exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet theengineering basis for reinforcement, loose gravel drilling rock formation connected with a variety ofengineering requirements.

Technical Specification

Bore Diameter (mm)

90-220

Bore Depth (mm)

150

Rock Hardness (F)

6-20

Air Pressure (Mpa)

1.05-3.0

Air Consumption (m³/min)

16-30

Once Promotion (mm)

2000

Maximun Height from The Ground (mm)

320

Rotation Speed (r/min)

0-100

Rotation Torque (NM)

3900

Dimension (L*W*H) (mm)

5425*2250*2470

Host Power (kW)

56/87 (Optional)

Weight (kg)

6000

Mud Pump (Optional)

BW450/5

Pump Speed (L/min)

172-450

Pump Pressure (Mpa)

2.0-5.0

Detailed Images

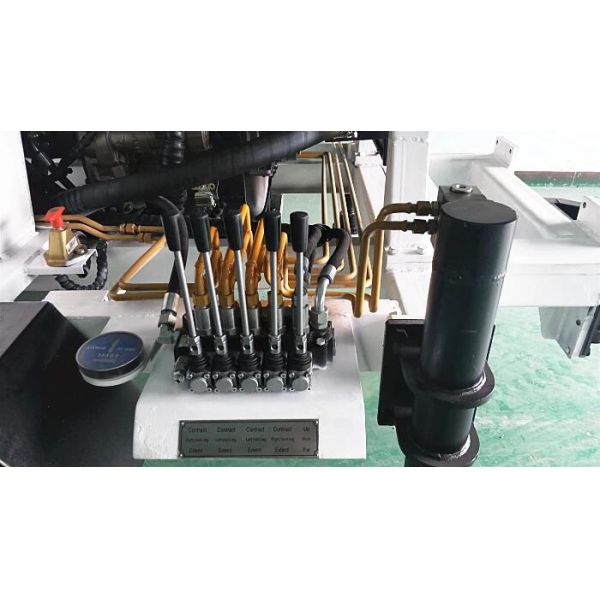

Four Wheel 150m Portable Water Well Borehole Drilling Rig

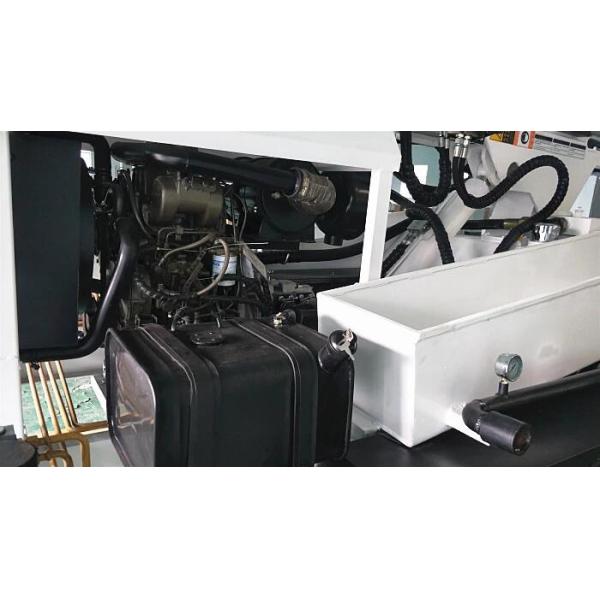

Four Wheel 150m Portable Water Well Borehole Drilling Rig

Product packaging

Four Wheel 150m Portable Water Well Borehole Drilling Rig
