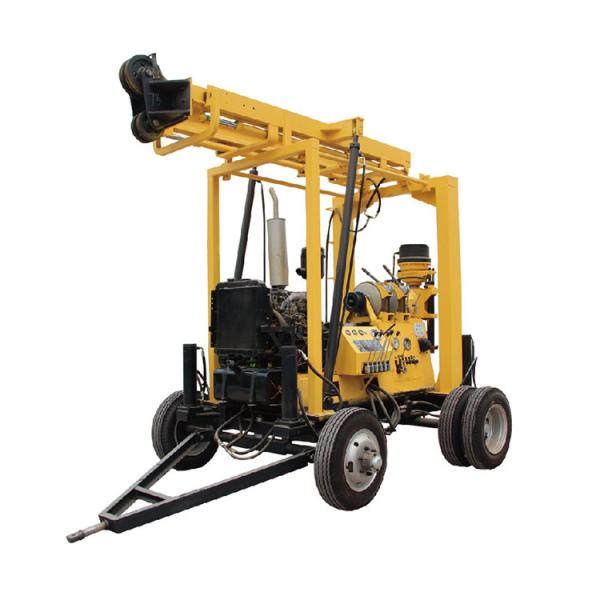

XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
Specifications
Name :
Rock Diamond Core Mining Drilling Rig Equipment Machine
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Farms
Type :
Core Drilling Rig
Power Type :
Electric
Usage :
Water Well
Voltage :
380V
Dimension(L*W*H) :
4500*2000*2700mm
Weight :
6200kg
Drilling depth :
600m
Open hole diameter :
325mm
End hole diameter :
75mm
Drill angle :
90-75°
Spindle Speed :
32-1057 r/min
Spindle Stroke :
600mm
Place of Origin :
CHINA
Brand Name :
OEM
Certification :
ISO,CE
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden cases standard export package
Delivery Time :
10-20 days working days
Payment Terms :
T/T, L/C, T/T, Western Union
Supply Ability :
Based on the detailed quotation
Description

XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine

Product Description
Brief Introduction of Core Drilling Rig:

XY-3 series drilling rig is a shallow/medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests.

It adopts electric motor or diesel engine as power unit.

The rig owns simple structure and is easy to operate.

Main Features of Core Drilling Rig:


1. The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.

2. The rig’s spindle inner diameter is 96mm,driven by mechanical system, can output big torque. The winch can lift max.3000kg with single line.

3. Hydraulic system controls the feeding pressure and speed of the spindle. The machine is equipped with pressure meter so that the workers can grasp hole situation.

Advantage of Core Drilling Rig:

1. To satisfy customers’special requirement, we design below new models based on OC-XY-3 original drilling rig OC-XYX-3 trailer-mounted drilling rig, OC-XYD-3 crawler-mounted self-propelled drilling rig(options: steel crawler and rubber crawler) and OC-XYC-3 truck-mounted drilling rig.

2. The machine can also adapt 1.5m high hydraulic cylinder jacks that can load & unload machine from truck.

3. Hydraulic drill mast saves the workers’labor and improves the working efficiency.

Technical Parameters of Core Drilling Rig
Whole machine technical parameters Model OC-XY-3 OC-XYD-3 OC-XYX-3
Drilling depth(m) 600 600 600
Open hole diameter(mm) 325 325 325
End hole diameter(mm) 75 75 75
Drill rod diameter(mm) 42-60 42-60 42-60
Drill angle(°) 90-75 90-75 90-75
Matching power(kw) YN27/39 YN33GBZ/65 YN27/39
Weight without power(kg) 1800 6200 3600
Dimension(m) 2.6*0.9*1.75 4.5*2*2.7 2.9*2.56*3.3
Spindle Speed(r/min) 32-1057 32-1057 32-1057
Stroke(mm) 600 600 600
Winch Max pull force(kg) 3000 4500 3000
Pull speed(m/s) 0.3-1.9 0.3-1.9 0.3-1.9
Rope diameter(mm) φ12.5 φ12.5 φ12.5
Roll capacity(m) 65 65 65
Drill Mast Rated load(ton) 18(Optional) 18 18
Height(m) 11 6.5 6.5

XYD-3 Deep Hole Hydraulic Mining Core Drilling Machine
