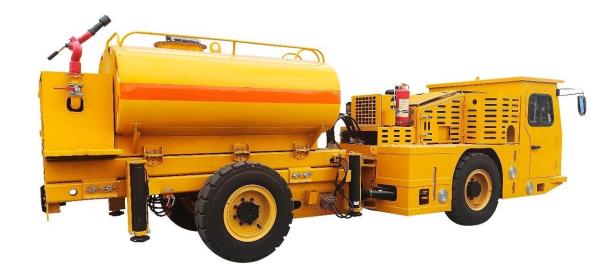

Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
Specifications
Model NO. :
JLFWB-6
Water Pump Range :
35-40m
Transport Package :
Bulk
Specification :
7795x1900x2235mm
Trademark :
Jarlo
Origin :
China
HS Code :
8428909090
Supply Ability :
1000 Sets/Year
Customization :
Available
After-sales Service :
12 Months
Warranty :
12 Months
Place of Origin :
China
MOQ :
1 set
Payment Terms :
LC, T/T
Description
JLFWB-6 Mining Crew Transporter
Overall dimensions
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm

Main technical parameters
Name Unit Parameters
Overall size L mm 7795
W mm 1900
H mm 2235
Overall mass kg 7930
Max. Track force KN ≥80
Min. Ground clearance mm 250
Gradeability % 25
Steering angle (º) ±40
Lateral swing angle (º) ±6~8
Axle track mm 1530
Wheel base mm 3500
Turning radius Inner mm 3850
Outer mm 6175
Max. Driving speed Gear I km/h 5±0.5
Gear II km/h 10±1
Gear III km/h 20±2
Effective volume of hydraulic oil tank L 140
Effective volume of diesel tank L 160
Operating ambient temperature °C -40~+30

Water tank parameters
Item Unit Parameters
Overall Size L mm 3163
W mm 1700
H mm 1296
Effective volume of water tank L 3000
Water pump lift m 35~40
Water tank working pressure / Normal pressure
Underground Fire Fighting Vehicle Water Tank Carrier for Mining 7795x1900x2235mm
