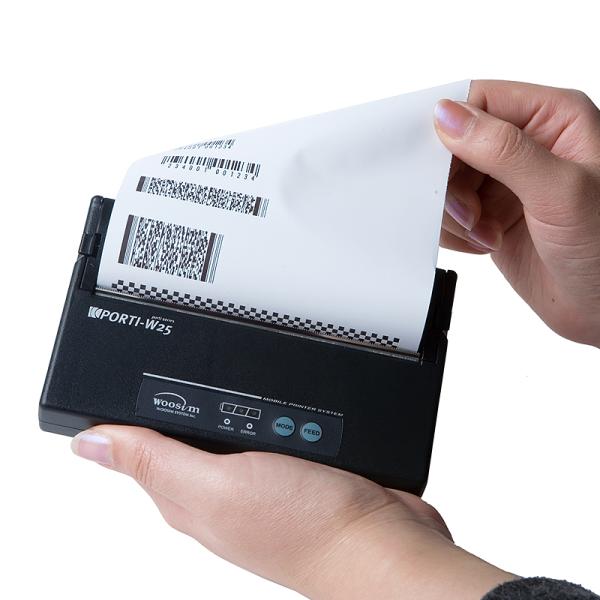

Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Android 4.0 Version 4 Inch Bluetooth Thermal Printer 203 Dpi 8 Dots / Mm Resolution
Specifications
Brand Name :
WOOSIM
Model Number :
PORTI-W25
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
carton, 16PCS/ carton
Printing method :
Direct thermal line printing
Interface :
Bluetooth Verv 4.0, USB 2.0
Resolution :
203dpi, 8dots/mm
Character :
Font Size A: 12X24 Font Size B : 9X24 Font Size C : 8X16
Paper Roll :
Thermal roll paper, (110mm wide, 50ø)
Printing width :
104mm
H/W Spec :
MCU -RX : 32bit, FLASH : 8M bytes, RAM : 16M bytes
Battery :
2400MAH(MAX)
Sensor :
Balck mark sensor, label sensor
SDK :
Android, IOS sdk
Driver :
Support driver
Description

4 Inch Cheaper Android Bluetooth 4.0 version thermal receipt printer

PORTI-W25

- Support text and graphic printing
- Easier paper roll loading by CLAMSHELL design.
- Easier maintenance with self-diagnostic.
- In field programming Update Firmware, Download Fonts and Logos
- Microsoft Widows XP / VISTA /10

- Windows CE, Linux, Android, Blackberry
- Free fall: 1 meter onto concrete (option 1.5 meter)
- Flow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer.

Item Specification
Printing Direct thermal printing
Paper loading Easy paper loading (CLAMSHELL design)
Characters per line 92cpl (MAX)
Optional Characters Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request.
Character size Eng. : 9x24dots, 12x24dots
Kor. : 16x24dots [24x24dots]
Resolution 203dpi, 8dots/mm
Print width 4-inch (104mm, 832dots)
Printing speed 50mm/sec (MAX)
Dimensions (WxDxH) 140 x 90.3 x 30.1 mm
Weight 306.4g
Interface · UART(RS-232C or TTL)
· Bluetooth Ver2.1 EDR
· USB
Paper supplied Thermal roll paper (117mm wide, 25ø),
Paper thickness : 60±5㎛
Barcode 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E,
EAN8, EAN13, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,
Truncated PDF417
Driver

Microsoft Widows XP / VISTA / 10

Windows CE, Linux, Android, Blackberry
Black mark Support black mark detection
H/W Spec. MCU : 32 bit RISC, FLASH : 4M bytes, RAM : 8M bytes
Receive buffer size 1M bytes
Battery Rechargeable 7.4V DC/ 1,400 mAh(Li-ion)
Battery duration 1 hour continuous printing
AC adapter Input (100~250VAC 50~60Hz),
Output (8.4VDC / 0.8A),
4 hours full charge time
Operating temperature -10°C ~ 50°C
Storage temperature -10°C ~ 70°C
MCBF(Mean Cycle Between failure) Mechanical 37,000,000 lines
Head Approximately 50Km
