Specifications
Brand Name :
WOOSIM
Model Number :
PORTI-T80/T200
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PCS/WEEK
Delivery Time :
5-8 work days
Packaging Details :
carton 12pcs/carton
Paper loading :
Auto paper loading
Cutter :
Auto-cutter
Printing :
Direct thermal line printing
Interface :
support USB
MCU :
32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes
Power :
12-24V, 0.6A
Driver :
support
Paper :
Thermal roll paper
Size :
small size
Receive buffer size :
1M
Description

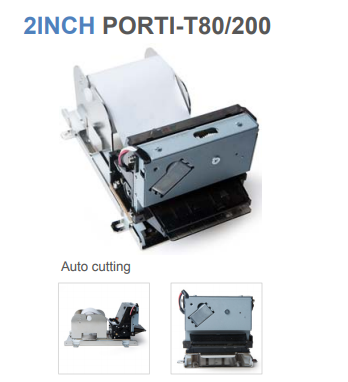

2 inch kiosk ticket receipt thermal printer with auto cutter

PORTI-T80/T200

- Very silent printing thru direct thermal printing method.

- High resolution(203dpi : 8dots/mm).

- UART(RS-232C or TTL), USB

- Low power consumption.

- Auto cutting.

Item Specification
Printing Direct thermal line printing
Paper loading Auto paper loading
Characters per line 42cpl(MAX)
Character size Eng. : 9x24dots, 12x24dots
Kor. : 16x24dots [24x24dots]
Resolution 203dpi, 8dots/mm
Print width 2-inch (48mm, 384dots)
Printing speed 60mm/sec(MAX)
Dimensions (WxDxH) T80 : 190x87.5x103mm [standard model]
T200 : 310x129x86mm
Weight T80 : 797g, T200 : 1,102g
Interface UART(RS-232C)
Paper supplied Thermal roll paper, label roll (60mm wide, 80ø or 200ø),
Paper thickness : 60±5㎛
Barcode supported 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E,
EAN8, EAN13, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix, Micro PDF417,
Truncated PDF417
Driver Microsoft Widows XP / VISTA / 7
Windows CE, Linux, Android, Blackberry
H/W spec MCU : 32bits RISC, FLASH : 4Mbytes, RAM : 8Mbytes
Receive buffer size 1M bytes
Input Power 12~24VDC, Standby 60mA and 3.0A
Option Sliding mount assembly [T80]
Operating temperature -10°C~50°C
Storage temperature -10°C~70°C
MCBF(Mean Cycle Between failure) Mechanical 37,000,000 lines
Head Approximately 50 Km

2 Inch Thermal Printer Mechanism With Auto Cutter Auto Paper Loading Support USB

2 Inch Thermal Printer Mechanism With Auto Cutter Auto Paper Loading Support USB

2 Inch Thermal Printer Mechanism With Auto Cutter Auto Paper Loading Support USB
