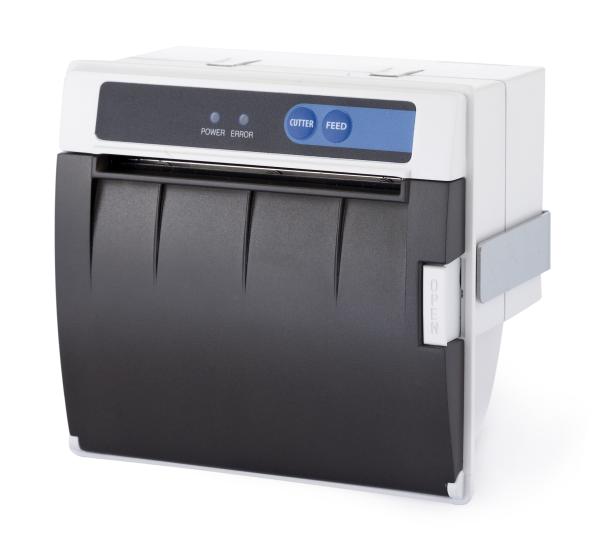

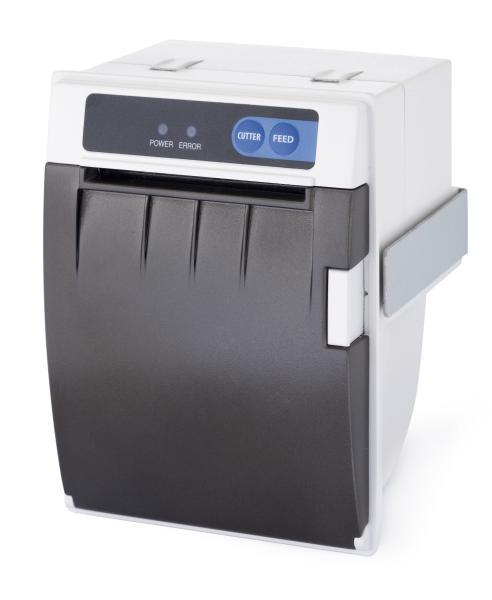

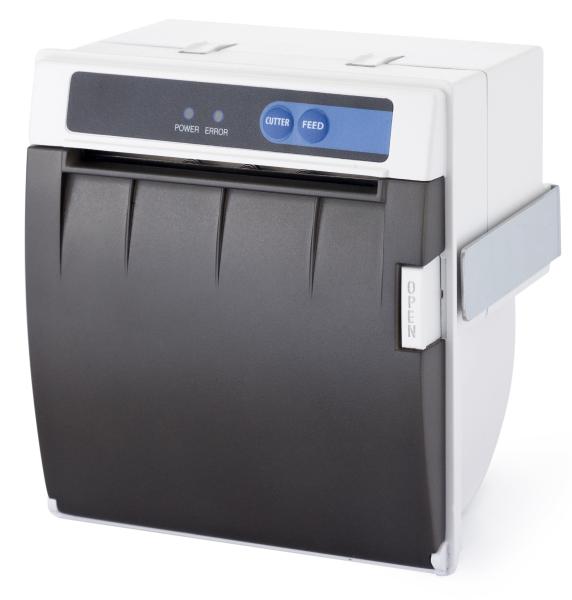

Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
Specifications
Brand Name :
WOOSIM
Model Number :
WSP-CP261/CP281
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C,T/T
Supply Ability :
10000PCS/MONTH
Delivery Time :
5-8 work days
Packaging Details :
carton, 20pcs/ carton
Size :
small 58mm thermal
Printing width :
48mm
Paper width :
58mm
Printing method :
Directly thermal
Interface :
RS232C, Parallel
Resolution :
203 dpi
Speed :
50mm/s
Drive :
support
Life :
50km
Input :
12-24v
Cutter :
auto paper cutter
Description

2 inches small size embedded thermal panel printer with auto cutter

WSP-CP261/281

- Ultra small size rack mount printer with Auto-cutter

- High speed (200mm/sec(24V), 70mm/sec(7V) MAX)

- High resolution (203dpi, 8dots/mm)

- USB interface, UART(RS-232C or TTL).

Item Specification
Printing Direct thermal line printing
Characters per line 42cpl (MAX)
Character size Eng. : 9x24dots, 12x24dots
Kor. : 16x24dots [24x24dots]
Optional Characters Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Greek, Japanese, Persian, Latin9 and Others upon request.
Resolution 203dpi, 8dots/mm
Print width 2-inch (54mm, 432dots)
Printing speed 200mm/sec (MAX)
Dimensions (WxDxH) CP260: 91.1 x 104.4 x 67.6mm CP261: 91.1 x 115.2 x 66.6mm
CP280: 91.1 x 122.4 x 88.5mm CP281: 91.1 x 136.2 x 90.1mm
Weight CP260: 286g CP261: 291g
CP280: 336g CP281: 331g
Interface UART (RS-232C or TTL), USB
Paper supplied Thermal roll paper, label roll (CP261: 58mm wide, 60ø, CP281: 58mm wide, 80ø),
Paper thickness : 60±5㎛
Barcode supported 1-dimension : Code128, Code39, I2/5, Code93, UPC-A, UPC-E,
EAN8, EAN13, CODABAR
2-dimension : PDF417, QR-Code, DATA Matrix, Micro PDF417,
Truncated PDF417
Driver Microsoft Windows XP / VISTA / 10
Windows CE, Linux, Android, Blackberry
H/W spec. MCU: 32 bits RISC, FLASH: 8M bytes, RAM: 16M bytes
Receive buffer size 1M bytes
Input Power 24VDC, 3A OVER / 7VDC, 3A OVER
Operating temperature -10°C~50°C
Storage temperature -10°C~70°C
MCBF(Mean Cycle Between failure) Mechanical 37,000,000 lines
Head Approximately 50 Km

Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter

Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter

Embedded Thermal Panel Printer , Panel Mount Printer With Auto Cutter
