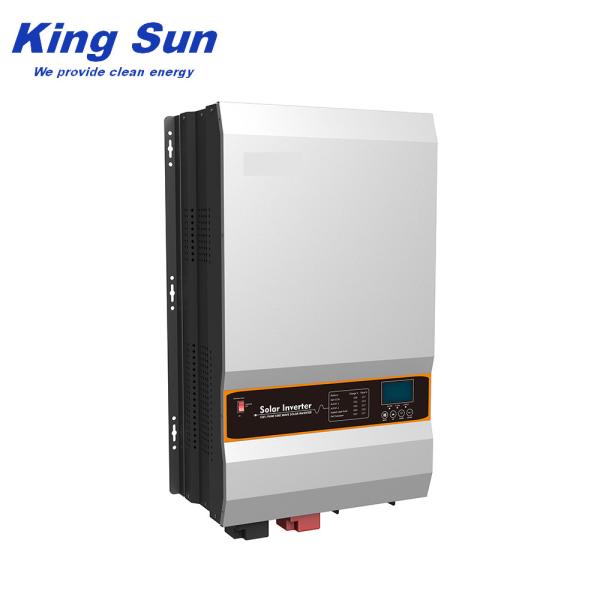

Off Grid Solar Inverters MPPT100A Solar Charge Controller 8kw Solar Inverters

1, Description:

• Pure sine wave output

• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

• Built-in MPPT 80A solar charge controller

• MAX PV Array Open Circuit Voltage: 450V

• Can provide the power to the load without battery

• Combining solar system, AC utility, and battery power source to supply continuous power

• Overload, short circuit and Deep discharge protection

• Cold start function

• Support USB, RS485 monitoring function with free CD

• WIFI remote monitoring (optional)

• Compatible to generator

• Can Run Without Battery

There are two major types of PV Off Grid Solar Inverters , transformer-less and transformer isolated ones. Transformer-less inverters can suffer from large ground leakage current and injected dc current because of large panel capacitance and lack of isolation between the PV panel and ac grid, as shown A dc component in the injected ac currents into the grid is less than desirable as it can potentially saturate distribution transformers. There are strict grid requirements for the amount of dc injection in many safety standards and, in some cases, transformer isolation is mandatory. Transformer isolation between the panel and grid would eliminate such a dc injection path arising from the voltage variation of the panel relative to the grid, as shown. Besides dc injection, grid-tied inverters need to meet other grid requirements, such as total harmonic distortion and individual harmonic current levels, power factor, and detection of island operation. The grid voltage and the current injected into the grid need to be monitored accurately. If the controller to perform MPPT and the gate driving function sits on the panel side, these measurements need to be isolated. To operate the PV panel for maximum efficiency, (MPPT) algorithms need to be used. To achieve MPTT, the panel voltage and current also need to be monitored. The panel voltage can get quite high as people try to connect many PV inverters in series to minimize the number of inverters needed. The current measurement from the high side terminal of the PV panels also needs to be isolated.

2, Parameters:

3, Usage with Solar Inverter:

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPP voltage is 150~450V, which Can help customers make full use of solar energy.

4, FAQ

Q one.Do you have MOQ?
Depands on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q two.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q three .How about the after sale service?
1)We will always keep the quality the same with the same and if there is something with the quality,we will make compensaton for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our coustomers.
Q four.When can I get a price?
We usually quote within 24hours after we get your inquiry.

5, More picture:

Delivery

Our design developers has more than 10 years working experience in solar energy field, all design engineers are working tirelessly to perfect our products to make its always in the leading level. We desire to solve 2B business, provide standardized products, core competencies is high cost performance. we also desire to solve the 2C business and provide personalized products. The core competencies are market, brand and sales channel. We are striving to build KingSun to be an international leading manufacturer of Solar terminal application products
