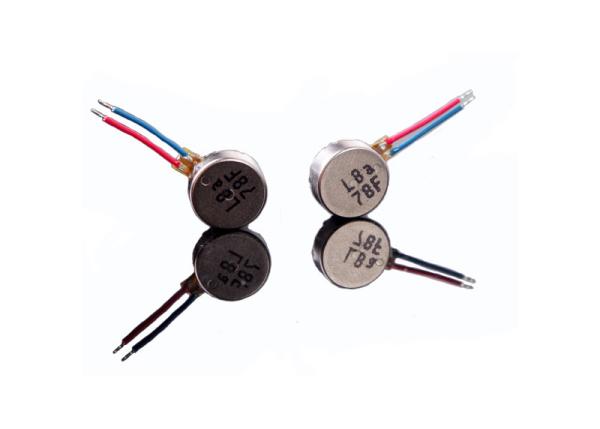

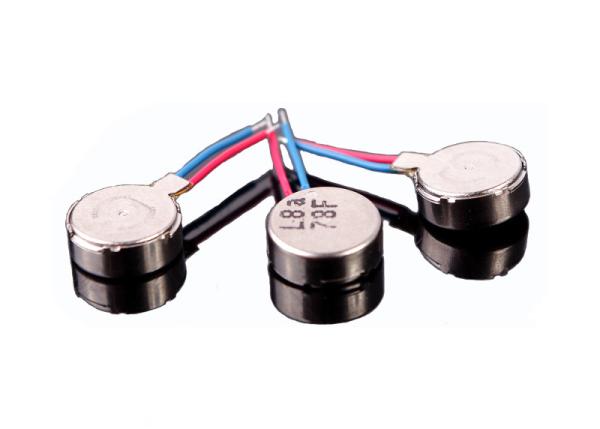

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current
Specifications
Brand Name :
LNLON
Model Number :
C0830L-066330017-0801
Certification :
ISO9001, ISO14001, QC080000, RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000000pcs per month
Delivery Time :
10 days
Packaging Details :
470*275*185mm carton with 4000pcs
Product type :
small vibrating motor
Size :
8*3mm
Rated Voltage :
3V DC
Rated Current :
90 mA Max
Rated Speed :
13000±3000 rpm
Vibration force :
1G @100g jig
Response time :
about 80ms
Life :
3.0V，2S on, 2S off，cycle for 96H
Commutation :
Brush
Usage :
brachet, mobile phone, watch, electronic cigarette, beauty instrument, toothbrush
Description

cell phone vibrating motor, small vibrating motor, vibrator motor used in mobile phone

Product Description​​:

model C0830L-066678999-3001
size Φ8*3mm
rated voltage 3V DC
starting voltage 2.3V DC Max
operating voltage 2.7v~3.3v DC
ratedspeed 13000±3000 rpm
rated current 90 mA Max
vibration 1G @100g jig
response time about 80mS
life 3.0V, 2S on, 2S off, cycle for 96H

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current


Outline drawing:
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

Application:
This small vibrating motor is widely used for brachet, watch, smart, phone, massager,cosmetic, toothbrush, electronic cigarette, etc.

Advantages​:

This small vibrating motor is specialized for
1. factory outlet, good price and short lead time;
2. available customization；
3. long-term technical support and customer service;
4. strict quality control and complete management system.
5. certificate of origin offered for some countries.

Except this small vibrating motor, we also have the following series:

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current
Certification:
The small vibrating motor is certificated for ISO 9001, ISO14001, QC08000 and RoHS.

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

Main Customer:
Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...

Our Company:
Our company is engaged in the development, manufacturing and marketing of micro vibration motor since 2003 with 0.18 billion annual output, covering an area of 35,000sqm.
Linglong has its own independent R&D team for vibration motor and automation equipment, which enhance to develop new product and lower cost. Also the mature and advanced production lines guarantee large capacity and good quality. We have built a complete system for process, management and sales-service to better serve our clients.
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

Workshop:
Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

Euipment:

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated CurrentSmall 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

Why Choose us?

Small 3V DC Cell Phone Vibration Motor Φ8 * 3mm 90 MA Max Rated Current

FAQ:
1. What is your main products?
We mainly specialize in small vibration motor, including dc coin motor, dc SMD motor, dc gear motor, dc stepper
motor and ac linear motor.

2. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order if sample without problem. You can contact us by anyway, email, skype, wechat, or phone.

3. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.

Packaging & Shipping
1. Packaging: 470*275*185mm carton with 4000pcs.
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.


For more small vibrating motors, please contact us.
