Specifications
Brand Name :
YOWO
Model Number :
1050
Certification :
CE, SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2000-2900 per TON
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
15-30 days after receiving deposit or Original LC
Packaging Details :
Standard exporting package
Type :
1050 aluminum strips
Alloy :
1050
Width :
20-1600mm
Hardness :
O
Grade :
1000 series
Brand :
YOWO
Sample :
can be provided for free
Temper :
O - H112
Description

1050 HO Aluminum Foil Aluminum Strip For Transformer Without Bur And Scratch

Specifications:

Product name Aluminum strip
Alloy / Grade 1000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 series
Temper 0-H112, T3-T8, T351-T851
Thickness 0.13-6.5mm
Width 3-2600mm
Length As per your requirements
Applications Industry, decorations, building, packing, pressing etc..
Surface treatment Mill finish, coated, powder coated, anodized, polished mirror, embossed etc..
Tolerances As per your requirements
Delivery time 7-30 days after receiving deposit or Original LC.
MOQ 500kgs
Loading port Shanghai port, Qingdao port
Coil ID As per your requirements.
Prices terms FOB, CIF, CFR(CNF), EXW etc.
Payment terms LC, TT, West Union etc.

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

Alloy Si Fe Cu Mn Mg Cr Zn Ti OTHERS OTHERS Al
1050 0.25 0.4 0.05 0.05 0.05 — 0.05 0.03 0.03 — 99.5
1070 0.2 0.25 0.04 0.03 0.03 — 0.04 0.03 0.03 — 99.7
1100 0.95 Si + Fe 0.05-0.20 0.05 — — 0.1 — 0.05 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.05 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 — — 0.1 — 0.05 0.15 Rem.
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 — 0.25 — 0.05 0.15 Rem.
3005 0.6 0.7 0.3 1.0-1.5 0.20-0.6 0.1 0.25 0.1 0.05 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 — 0.05 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 — 0.05 0.15 Rem.
5252 0.08 0.1 0.1 0.1 2.2-2.8 — 0.05 — 0.03 0.1 Rem.
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.05 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.05 0.15 Rem.

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

We(Henan YOWO Industrial) have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

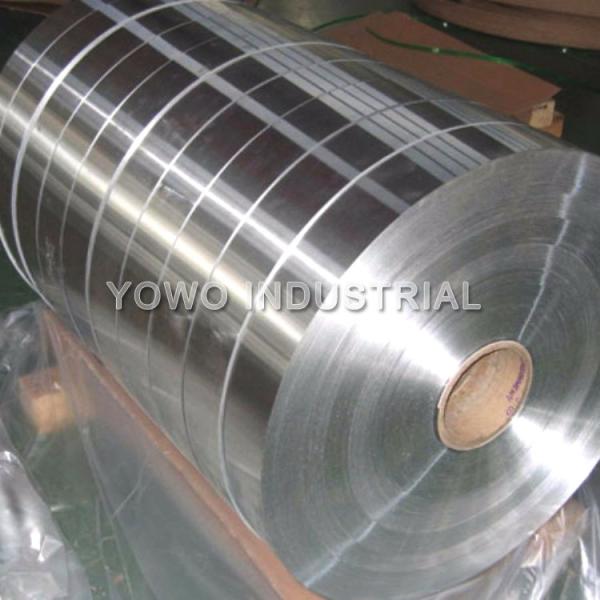

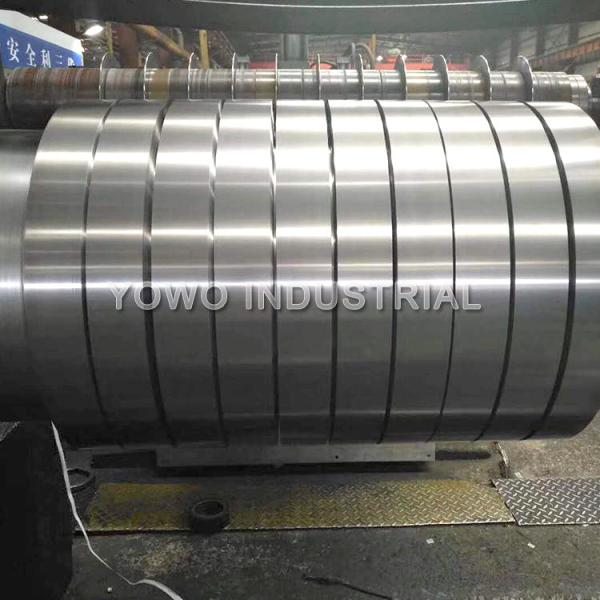

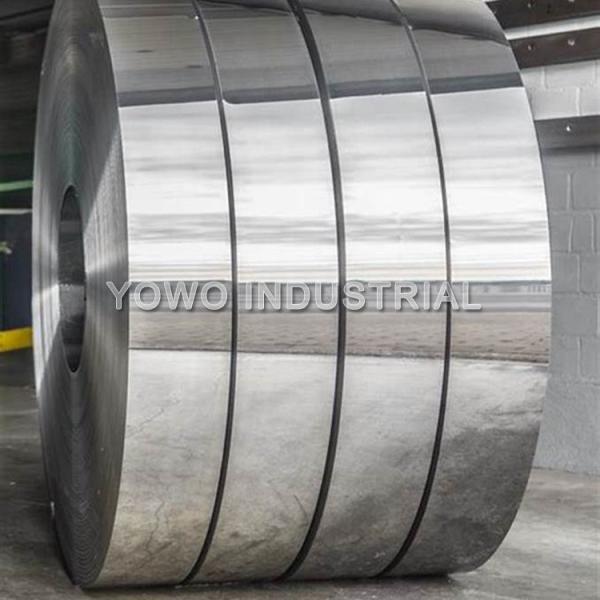

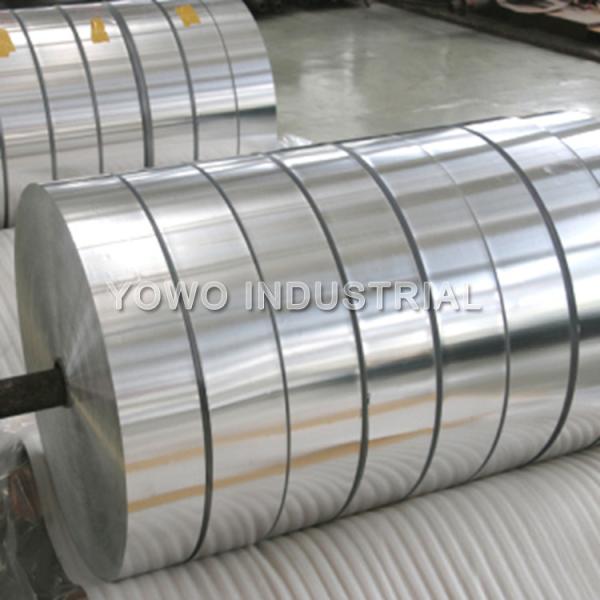

Detailed pictures display:

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer 1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer 1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer 1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer 1000mm Length 1050 HO Aluminum Alloy Strip For Transformer

1000mm Length 1050 HO Aluminum Alloy Strip For Transformer 1000mm Length 1050 HO Aluminum Alloy Strip For Transformer
