SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip
SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip
SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip
SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip
Specifications
Brand Name :
YOWO
Model Number :
1060-O
Certification :
CE, SGS
Place of Origin :
CHINA
MOQ :
7 MT
Price :
USD 2000-2900 per TON
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
15-30 days after receiving deposit or Original LC
Packaging Details :
Standard exporting package
Type :
aluminum strips
Alloy :
1060
Width :
20-1600mm
Hardness :
O
Grade :
1000 series
Brand :
YOWO
Sample :
can be provided for free
Temper :
O - H112
Description

1050 1060 1070 Alloy Aluminum Strips

Specifications:

Type Aluminum Sheet/Foil/Strip
Grade & Temper 1070/1060/1050/1350 O
Thickness

0.2-2.0mm

(other thickness can be produced)
Width 20-1650mm
Inner Diameter 150/300/400/500mm
Conductivity(%IACS) ≥61.5
Reisitivity number(Ω·mm2/m) ≤0.02825
Elongation(%) >23
Tensile Strength(Mpa) >76
Density in 20℃ 2.7g/cm3

Tolerance:

Aluminum Alloy 1070/1060/1050 O
Thickness(mm) 0.2-0.3 0.4-0.8 1.0-2.0 2.0-3.0
Tolerance(mm) ±0.015 ±0.02 ±0.03 ±0.06
Width(mm) 20-400 100-600 200-700 500-1600
Width Tolerance(mm) ±0.2 ±0.3 ±0.3 ±1

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

Why Choose us?

We have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy StripSGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy StripSGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip

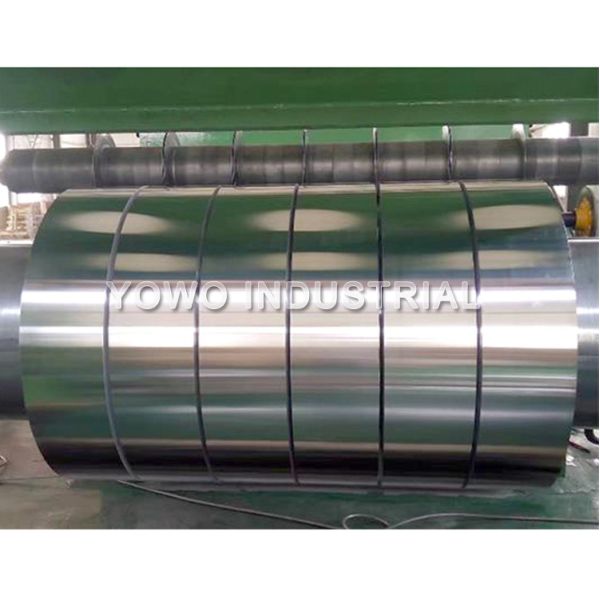

Product Display:

SGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy StripSGS Approved 0.5mm 1050 1060 1070 Aluminum Alloy Strip
