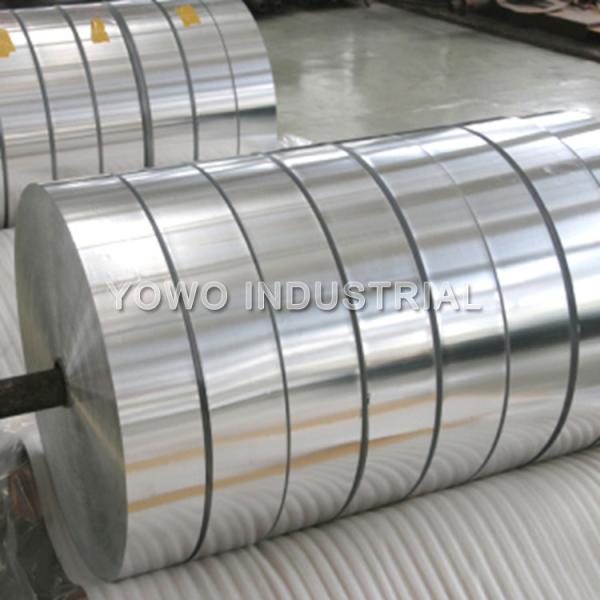

1500mm Length Temper T351 3000 Series Aluminium Flat Strips
1500mm Length Temper T351 3000 Series Aluminium Flat Strips
Specifications
Brand Name :
YOWO
Model Number :
3003
Certification :
CE, SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2000-2900 per TON
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons per month
Delivery Time :
15-30 days after receiving deposit or Original LC
Packaging Details :
Standard exporting package
Type :
aluminum strips
Alloy :
3003
Width :
20-1600mm
Hardness :
O
Grade :
1000 series
Brand :
YOWO
Sample :
can be provided for free
Temper :
O - H112
Description

Aluminum 3000 Series Aluminum Strips

Specifications:

Product name Aluminum strip
Alloy / Grade 1000 series, 3000 series, 5000 series, 6000 series, 7000 series, 8000 series
Temper 0-H112, T3-T8, T351-T851
Thickness 0.13-6.5mm
Width 3-2600mm
Length As per your requirements
Applications Industry, decorations, building, packing, pressing etc..
Surface treatment Mill finish, coated, powder coated, anodized, polished mirror, embossed etc..
Tolerances As per your requirements
Delivery time 7-30 days after receiving deposit or Original LC.
MOQ 500kgs
Loading port Shanghai port, Qingdao port
Coil ID As per your requirements.
Prices terms FOB, CIF, CFR(CNF), EXW etc.
Payment terms LC, TT, West Union etc.

Why Choose Aluminum for transformer?

1. Economic, means less cost for better achievements.

2. Conductivity of Copper is good, but Aluminum's is as double as copper at the same price.

3. Aluminum is more flexible that means it easier to wind and place in winding process.

4. Aluminum is lighter, easy to place.

In North America ,aluminum is the moost popular choice of winding material for low-voltage, dry-type transformers.

Mechanical Property
ALUMINUM Grade Normal Temper Tensile Strength Yield Strength Elongation% Brinell Hardness
ALLOY Temper N/mm² N/mm² Plate Bar HB
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
(2XXX) 2024 O,T4 T4 470 325 20 17 120
Al-Mn 3003 O 110 40 30 37 28
(3XXX) 3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg 5052 O,H112,H H34 260 215 10 12 68
(5XXX) 5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si 6061 O,T4,T6,T8 T6 310 275 12 15 95
(6XXX) 6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg 7003 T5 T5 315 255 15 - 85
(7XXX) 7075 O,T6 T6 570 505 11 9 150

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

We(Henan YOWO Industrial) have more than 10 years experiences of Aluminum sheet, Aluminum foil and Aluminum strip products. We fully understand our customers' needs and requirements, and strictly in accordance with international standards such as ASTM, EN_AB, JIS, GB for the production of various grades of aluminum products.

We make sure each piece of aluminum roll No Burrs, No Scratches of Round Edge to fit for transformer winding.

Any size can be customized. No matter you need large quantity or small quantity, or trial order, we'll all treat it seriously. Give us one chance to be your reliable supplier in the near future!

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips

1500mm Length Temper T351 3000 Series Aluminium Flat Strips
