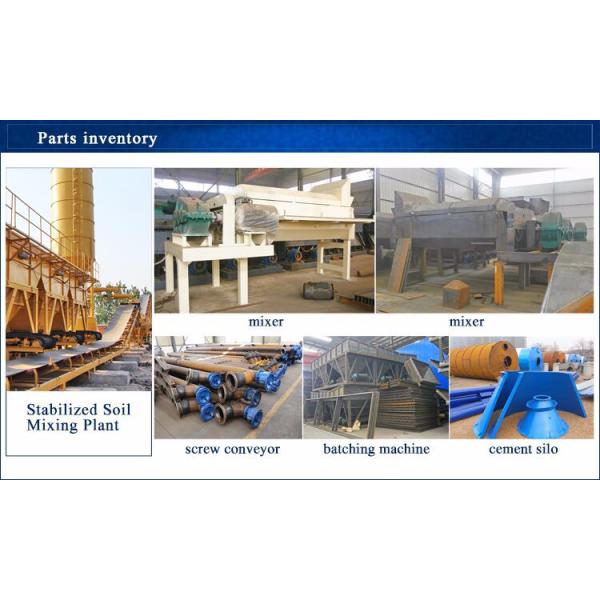

WCB 300 Stationary Stabilized Soil Mixing Plant
WCB 300 Stationary Stabilized Soil Mixing Plant
Specifications
Brand Name :
MITNIK
Model Number :
WCB 300
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiation
Supply Ability :
unlimited
Delivery Time :
15-20 days
Packaging Details :
Standard export packing
Description
WCB300 stabilized soil mixing plant (mixing station) belongs to the type of combination of the dis-assembly machine and the agitation type with twin-shaft compulsory continuous,which can be stabilized soil mixing gravel, lime stabilized soil, adapted to the highway, Ⅰ grade highways, Ⅱ grade highways, urban roads, airports, stadiums and other basic construction materials as well as used quicklime , slaked lime (10-15% moisture content), soil, sand, fly ash, cement and other raw materials, production of lime and other basic materials.
WCB 300 Stationary Stabilized Soil Mixing Plant
Advantages of WCB300 stabilized soil mixing plant:
1.WCB300 stabilized soil mixing station (mixing station) host using a continuous twin shaft mixer without lining, easy maintenance, spices uniform, high production efficiency.
2.Ingredients uses electronic weighing or volume measurement, accurate and reliable, the ratio changes rapidly.
3.Computer control system manages the entire process, manual and automatic selection, easy operation, good reliability.
4.Velocity modulation adopts international advanced frequency control mode or electromagnetic speed control, will be able to lower energy consumption, stepless, fully ensure the reliability of equipment operation.
5.Water system uses turbine flow-meter with intelligent, accurate calculation, intuitive displaying.
6.Aggregate, finished feed conveyor adopts seamlessvulcanized joint tape or large angle annular rib belt waveform, compact, stable, reliable, easy deviation, effectively improve the life of the belt.
7. Aggregate warehouse adopts modular building block combination, flexible, suitable for different levels of demand.
WCB 300 Stationary Stabilized Soil Mixing Plant
Parameters of WCB300 stabilized soil mixing plant:
Model WCB300 WCB400 WCB500 WCB600
Capacity 300t/h 400t/h 500t/h 600t/h
Total Power 90KW 100KW 140KW 140KW
Voltage AC380/220V AC380/220V AC380/220V AC380/220V
Frequency 50Hz 50Hz 50Hz 50Hz
AG Size ≤60mm <60mm ≤60mm ≤60mm
Weighing Way Electronic Dynamic weighing Electronic Dynamic weighing Electronic Dynamic weighing Electronic Dynamic weighing
Accuracy

AG:±1.5%

Soil:±1.5%

Lime:±1%

Cement:±1%

Water:±1.5%

AG:±1.5%

Soil:±1.5%

Lime:±1%

Cement:±1%

Water:±1.5%

AG:±1.5%

Soil:±1.5%

Lime:±1%

Cement:±1%

Water:±1.5%

AG:±1.5%

Soil:±1.5%

Lime:±1%

Cement:±1%

Water:±1.5%
Mixing Type Horizontal twin shaft continuously Horizontal twin shaft continuously Horizontal twin shaft continuously Horizontal twin shaft continuously
Control Way Centralized Control Centralized Control Centralized Control Centralized Control
Broken Mechanical/Gas Mechanical/Gas Mechanical/Gas Mechanical/Gas
Feeding Height 2.3m 2.3m 2.3m 2.3m
Discharge Height 3m 3m 3m 3m
Car Passing Width 3.5m 3.5m 3.5m 3.5m
Total Weight 32t 36t 45t 48t
Area 43×5(m) 43×5(m) 43×5(m) 43×5(m)
