LB1000 stationary asphalt mixing plant, bitumen mixing plant
LB1000 stationary asphalt mixing plant, bitumen mixing plant
Specifications
Brand Name :
MITNIK
Model Number :
LB1000
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiation
Supply Ability :
unlimited
Packaging Details :
Standard export packing
Description

LB1000 asphalt mixing equipment overall adopts structure of the containermodular design, easy disassembly quick and efficient transition; Dedusting system uses inertial dust and atmospheric blowback secondary baghouse dust collector, high environmental performance; applicable to any fuel burner; five aggregate screening; finished silo selection under the home, small footprint. The device is suitable for any level of asphalt concrete pavement construction, maintenance, and maintenance requirements.

LB1000 stationary asphalt mixing plant, bitumen mixing plant

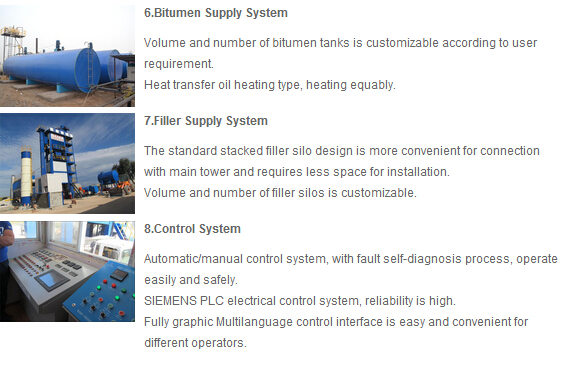

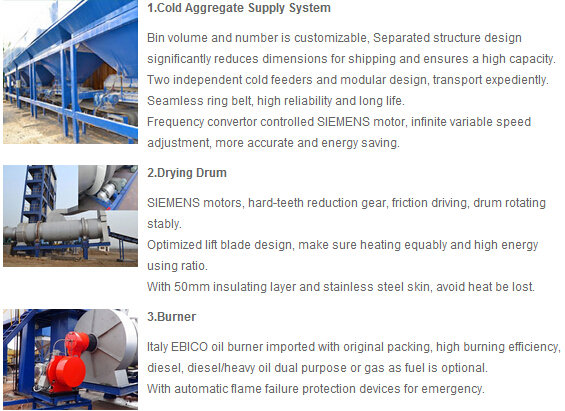

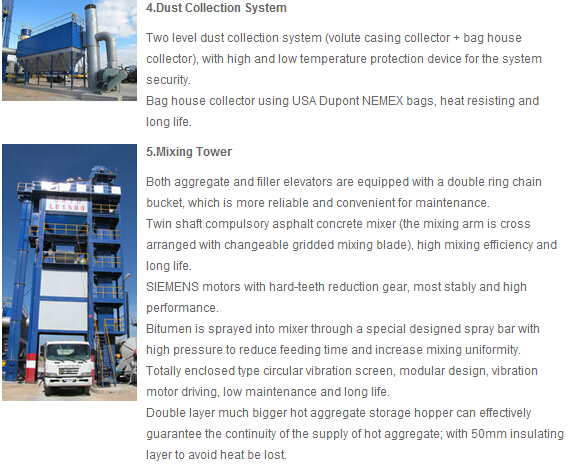

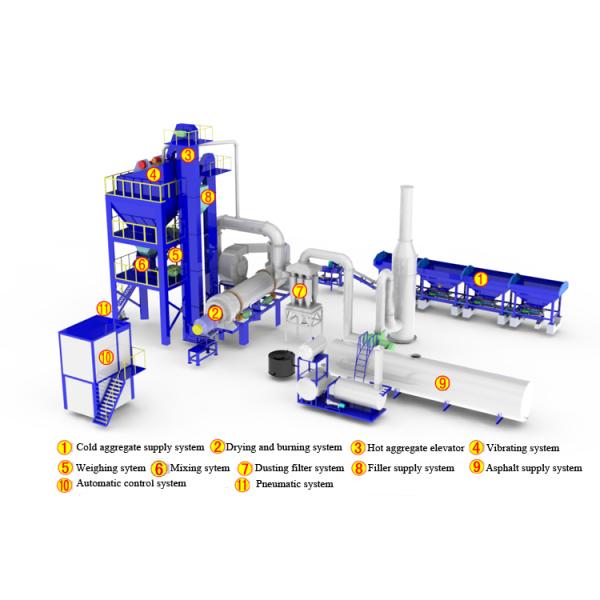

Characteristics of its Component Parts:

LB1000 stationary asphalt mixing plant, bitumen mixing plant

LB1000 stationary asphalt mixing plant, bitumen mixing plant

LB1000 stationary asphalt mixing plant, bitumen mixing plant

Parameters of LB1000 asphalt mixing plant:

Model LB1000 LB1500 LB2000 LB3000 LB4000
Rated Production Capacity 80t/h 120t/h 160t/h 240t/h 320t/h
Power 295kw 342kw 476kw 608kw 800kw
Cold Bin No. 4 4 5 5/6 6
Cold Bin Volume 10m3 10m3 13m3 15m3 15m3
Loading Width 3.5m 3.5m 3.6m 3.6m 3.6m
Feeding Weight Horizontal 3.15m Horizontal 3.15m Horizontal 3.4m Horizontal 3.5m Horizontal 3.5m
Fule&Comsuption

Light/Heavy Oil ≤ 6.5 kg / t;

gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t

 Light/Heavy Oil ≤ 6.5 kg / t;
gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t		 Light/Heavy Oil ≤ 6.5 kg / t;
gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t		 Light/Heavy Oil ≤ 6.5 kg / t;
gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t		 Light/Heavy Oil ≤ 6.5 kg / t;
gas ≤ 7.5m³/ t; Coal ≤ 14 kg / t
Vibrating Screen 4 Layers 4 Layers 4 Layers 5/6 Layers 6 Layers
Measurement Accuracy Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3% Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3% Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3% Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3% Aggregate ± 0.5%; asphalt ± 0.2%; powder ± 0.3%
Mixing Tank Capacity 1000kg 1500kg 2000kg 3000kg 4000kg
Transportion Car Power 30kw 37kw 45kw 55kw 75kw
Finished-product Hopper Capacity 100t 100t 150t 200t 200t /300t
Dust Emission Concentration ≤ 20mg/N.m3 ≤ 20mg/N.m3 ≤ 20mg/N.m3 ≤ 20mg/N.m3 ≤ 20mg/N.m3
Environmental Noise ≤80dB ≤80dB ≤80dB ≤80dB ≤80dB
Noise In Control Room ≤70dB ≤70dB ≤70dB ≤70dB ≤70dB
