7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer
7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer
7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer
7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer
Specifications
Brand Name :
Vison
Model Number :
VP-001
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
2000-4000 USD
Payment Terms :
T/T, L/C
Supply Ability :
30
Delivery Time :
15-20 days
Packaging Details :
Plywood case
Description

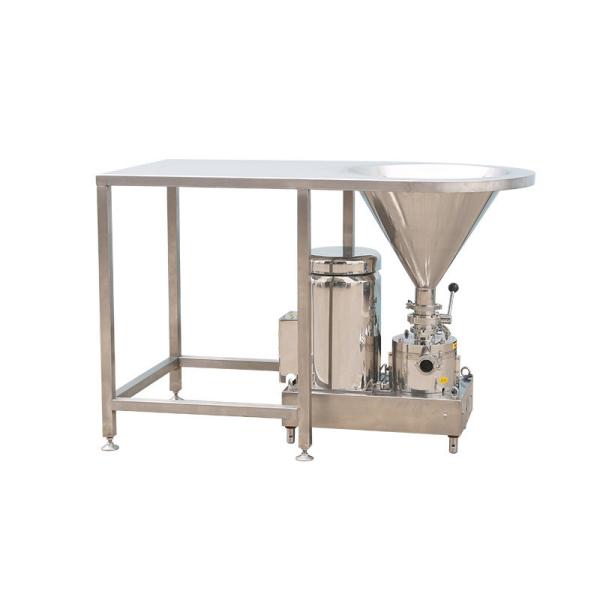

Liquid water powder mixer (desk type)

7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer

Product Specifications

Material:SS304/SS316L

Customize production available

Flow rate Motor power work pressure Inlet/outlet size Head diameter Machine weight Dimension
20T/H 5.5 0.3 Mpa 51mm 170mm 125kg
30T/H 7.5 0.3 Mpa 51mm 170mm 155kg

Product structure

The liquid-feed mixing pump is mainly composed of a feed hopper, a butterfly valve, a pump housing 1, II, an impeller, a main shaft, a mechanical seal, a water cooling jacket, a pump seat, a belt drive device, and a motor. All parts of the equipment that come into contact with the material are made of high-quality, corrosion-resistant stainless steel, which meets the requirements of food hygiene. When the equipment is working, the motor drives the main shaft and impeller through a belt, and the impeller rotates at high speed in the pump housing II to achieve the purpose of mixing the liquid. The impeller is made of Ocr19N19, which is easy to disassemble and wash to prevent bacteria from gathering. The mechanical seal consists of a static ring, a dynamic seal ring, a stainless steel spring, a compression seal ring, etc. There is also an external seal to prevent liquid leakage. The main shaft and the motor are driven by a V-belt, and are equipped with a water cooling jacket device and a tensioning device. The motor and wiring parts of this liquid-feed mixing pump can effectively avoid water accumulation and moisture, and meet the safety of electricity use. The motor and the pump seat are connected by bolts, and the whole machine can be moved arbitrarily without a fixed installation foundation.

7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer 7.5KW High Efficient Powder Liquid Mixing Water Salt Powder Mixer
