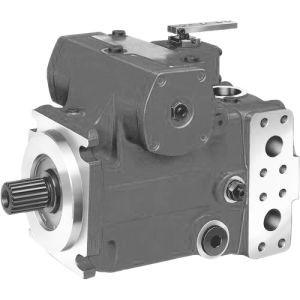

R902245413 R902155983 Electric Hydraulic Closed Circuit Pumps for High Pressure Needs
R902245413 R902155983 Electric Hydraulic Closed Circuit Pumps for High Pressure Needs
Specifications
Supply Ability :
500pieces/Year
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Brand Name :
Bosch Rexroth
Model Number :
R902245413
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
Delivery Time :
5days
Packaging Details :
Wooden box
Model NO. :
Rexroth
After-sales Service :
Free Warranty
Warranty :
Free Warranty
Structure :
Axial Plunger Pump
Cylinder Number :
Single Cylinder
Drive Mode :
Mechanically Driven Pump
Pump Shaft Position :
Horizontal
Type :
V Type
Power :
Electric
Straight Shaft Swashplate Piston Type :
Pressureoil
Radial Plunger Pump Type :
Valve with Flow
A4vtg071hw100/33mrnc4V81f0000as-0 :
A4vtg071hw100/33mrnc4V82f0000as-0
A4vtg071hw100/33mrnc4V82f0000as-0 :
A4vtg071hw100/33mrnc4V82fb2s4as-0
A4vtg071hw100/33mrnc4V82fb3s4as-0 :
A4vtg071hw10m/33mrnc4V81f0000as-S
A4vtg071hw10m/33mrnc4V82f0000as-S :
A4vtg071hw10t/33mrnc4c82fa2s2as-0
A4vtg071hw10t/33mrnc4V82fb2s4as-0 :
R902150567
R902196009 :
R902154529
R902155866 :
R902150516
R902245413 :
R902155983
R902220941 :
R902150514
R902149993 :
R902220534
R902132671 :
R902196215
R902220812 :
R902149871
R902149838 :
R902149875
R902149874 :
R902220629
R902149862 :
R902196206
Trademark :
MKS
Transport Package :
Wooden Box
Specification :
cast iron
Origin :
China
HS Code :
8413606090
Port :
Foshan, China
MOQ :
1 pcs
Price :
discussible
Description

R902245413 R902155983 Electric Hydraulic Closed Circuit Pumps for High Pressure Needs

Basic Info.

Model NO.
Rexroth
After-sales Service
Free Warranty
Warranty
Free Warranty
Structure
Axial Plunger Pump
Cylinder Number
Single Cylinder
Drive Mode
Mechanically Driven Pump
Pump Shaft Position
Horizontal
Type
V Type
Power
Electric
Straight Shaft Swashplate Piston Type
Pressureoil
Radial Plunger Pump Type
Valve with Flow
A4vtg071hw100/33mrnc4V81f0000as-0
A4vtg071hw100/33mrnc4V82f0000as-0
A4vtg071hw100/33mrnc4V82f0000as-0
A4vtg071hw100/33mrnc4V82fb2s4as-0
A4vtg071hw100/33mrnc4V82fb3s4as-0
A4vtg071hw10m/33mrnc4V81f0000as-S
A4vtg071hw10m/33mrnc4V82f0000as-S
A4vtg071hw10t/33mrnc4c82fa2s2as-0
A4vtg071hw10t/33mrnc4V82fb2s4as-0
R902150567
R902196009
R902154529
R902155866
R902150516
R902245413
R902155983
R902220941
R902150514
R902149993
R902220534
R902132671
R902196215
R902220812
R902149871
R902149838
R902149875
R902149874
R902220629
R902149862
R902196206
Trademark
MKS
Transport Package
Wooden Box
Specification
cast iron
Origin
China
HS Code
8413606090

Product Description

Technical data
Series 33.
Sizes NG71, 90.
Nominal pressure 400 bar.
Maximum pressure 450 bar.
Closed circuit.
For the drum drive in mobile concrete mixers.
Features
--Variable axial piston pump of swashplate design for hydrostatic drives in closed circuit
--The flow is proportional to the drive speed and displacement.
--The flow increases as the angle of the swashplate is adjusted from zero to its maximum value.
--Flow direction changes smoothly when the swashplate is moved through the neutral position.
--Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload.
--The high-pressure relief valves also function as boost valves.
--The integrated boost pump acts as a feed pump and control pressure supply.
--The maximum boost pressure is limited by a built-in boost pressure-relief valve.
Table of values
Size NG 71 90
Displacement variable pump Vg max cm3 71 90
boost pump (at p = 20 bar) Vg Sp cm3 20.5 27
Speed at Vg max nnom rpm 3300 3050
minimum nmin rpm 500 500
Flow at nnom H and Vg max qv max l/min 234 275
Power1) at nnom H, Vg max Dp = 400 bar Pmax kW 156 183
Torque1) at Vg max and Dp = 400 bar Tmax Nm 452 573
Dp = 100 bar T Nm 113 143
Rotary stiffness drive shaft V8 c Nm/rad 120900 -
drive shaft V9 c Nm/rad - 150896
Moment of inertia for rotary group JGR kgm2 0.0097 0.0149
Maximum angular acceleration a rad/s2 21000 18000
Filling capacity V L 1.3 1.2
Mass approx. (without through drive) m kg 51 53
