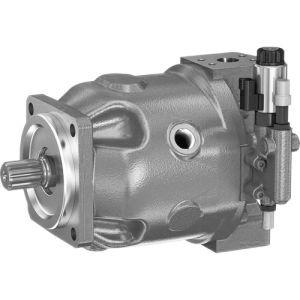

Al A10V O100 Drs /32L-Vwc12n00 Rexroth A10V O100 Hydraulic Pump for Medium Pressure
Al A10V O100 Drs /32L-Vwc12n00 Rexroth A10V O100 Hydraulic Pump for Medium Pressure
Specifications
Supply Ability :
500pieces/Year
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Brand Name :
Bosch Rexroth
Model Number :
Al A10V O100 Drs /32L-Vwc12n00
Certification :
GS, RoHS, CE, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
discussible
Delivery Time :
5days
Packaging Details :
Wooden box
Model NO. :
Rexroth
After-sales Service :
Free Warranty
Warranty :
Free Warranty
Structure :
Axial Plunger Pump
Cylinder Number :
Single Cylinder
Drive Mode :
Mechanically Driven Pump
Pump Shaft Position :
Horizontal
Type :
V Type
Power :
Electric
Straight Shaft Swashplate Piston Type :
Pressureoil
Radial Plunger Pump Type :
Valve with Flow
a A10vo100 Drs /32r-Vuc12n00 -S4043 :
a A10vo100 Drs /32r-Vuc12n00 -So833
Ah A10V O100 Dfr1/32L-Vwd73K68 -S3303 :
Ah A10V O100 Drs /32L-Vwd23K68 -S3459
Ah A10V O100ek2ds/32L-Vuc11n00 -S2212 :
Ah A10V O100ek2ds/32L-Vuc11n00 -S2324
Ah A10V O100ek2ds/32L-Vuc11n00 -S3061 :
Ah A10V O100ek2ds/32L-Vuc11n00 -S3620
Ah A10V O100ek2ds/32L-Vuc1n00p -S3977 :
Al A10V O100 Dr /32r-Vsc11n00
Al A10V O100 Drs /32L-Vuc11n00 -S4458 :
Al A10V O100 Drs /32L-Vuc11n00 -S4459
Al A10V O100 Drs /32L-Vwc12n00 :
Al A10V O100 Drs /32r-VSD12K07
Al A10V O100 Drs/32L-Vuc11n00 -S3997 :
Al A10V O100 ED72/32r-Vsc12K24p
Al A10V O100 ED72/32r-Vsc12n00p :
Al A10V O100 Ep1d/32L-Vuc11n00-S2896
Al A10V O100 La6d /32r-Vsc22u68h -S3814 :
Al A10V O100 La7d /32r-Vsc22u24h -S3814
Al A10V O100 La7d /32r-Vsc22u68h -S3814 :
Al A10V O100 La7d /32r-Vsc22u68h -S3814
Al A10V O100 La8d /32r-Vsc22u68h -S3814 :
Ap A10V O100 Drs /32r-Vsc44n00 -S4739
Ap A10V O100ek2ds/32L-Vuc11n00 -S2324 :
Ap A10V O100ek2ds/32L-Vuc11n00 -S3620
G A10V O100 Ov /32L-Vuc11n00 -S2467 :
G A10V O100 Ov /32L-Vwc12n00
G A10V O100 Ep /32r-Vuc11n00 :
Ap A10V O100 Drs /32L-Vwd23K68 -S3459
Trademark :
MKS
Transport Package :
Wooden Box
Specification :
cast iron
Origin :
China
HS Code :
8413606090
Port :
Foshan, China
Description

Al A10V O100 Drs /32L-Vwc12n00 Rexroth A10V O100 Hydraulic Pump for Medium Pressure

Basic Info.

Model NO.
Rexroth
After-sales Service
Free Warranty
Warranty
Free Warranty
Structure
Axial Plunger Pump
Cylinder Number
Single Cylinder
Drive Mode
Mechanically Driven Pump
Pump Shaft Position
Horizontal
Type
V Type
Power
Electric
Straight Shaft Swashplate Piston Type
Pressureoil
Radial Plunger Pump Type
Valve with Flow
a A10vo100 Drs /32r-Vuc12n00 -S4043
a A10vo100 Drs /32r-Vuc12n00 -So833
Ah A10V O100 Dfr1/32L-Vwd73K68 -S3303
Ah A10V O100 Drs /32L-Vwd23K68 -S3459
Ah A10V O100ek2ds/32L-Vuc11n00 -S2212
Ah A10V O100ek2ds/32L-Vuc11n00 -S2324
Ah A10V O100ek2ds/32L-Vuc11n00 -S3061
Ah A10V O100ek2ds/32L-Vuc11n00 -S3620
Ah A10V O100ek2ds/32L-Vuc1n00p -S3977
Al A10V O100 Dr /32r-Vsc11n00
Al A10V O100 Drs /32L-Vuc11n00 -S4458
Al A10V O100 Drs /32L-Vuc11n00 -S4459
Al A10V O100 Drs /32L-Vwc12n00
Al A10V O100 Drs /32r-VSD12K07
Al A10V O100 Drs/32L-Vuc11n00 -S3997
Al A10V O100 ED72/32r-Vsc12K24p
Al A10V O100 ED72/32r-Vsc12n00p
Al A10V O100 Ep1d/32L-Vuc11n00-S2896
Al A10V O100 La6d /32r-Vsc22u68h -S3814
Al A10V O100 La7d /32r-Vsc22u24h -S3814
Al A10V O100 La7d /32r-Vsc22u68h -S3814
Al A10V O100 La7d /32r-Vsc22u68h -S3814
Al A10V O100 La8d /32r-Vsc22u68h -S3814
Ap A10V O100 Drs /32r-Vsc44n00 -S4739
Ap A10V O100ek2ds/32L-Vuc11n00 -S2324
Ap A10V O100ek2ds/32L-Vuc11n00 -S3620
G A10V O100 Ov /32L-Vuc11n00 -S2467
G A10V O100 Ov /32L-Vwc12n00
G A10V O100 Ep /32r-Vuc11n00
Ap A10V O100 Drs /32L-Vwd23K68 -S3459
Trademark
MKS
Transport Package
Wooden Box
Specification
cast iron
Origin
China
HS Code
8413606090

Product Description

Technical data
Optimized medium pressure pump for high power machines.
Sizes 45 to 180.
Nominal pressure 280 bar.
Maximum pressure 350 bar.
Open circuit.
Features
Variable displacement pump with axial piston rotary group of swashplate design for hydrostatic drives in open circuit.
Flow is proportional to the drive speed and displacement.
Flow can be infinitely varied by controlling the swashplate angle.
Hydrostatically unloaded cradle bearing.
Port for measurement sensor on high pressure port for all sizes with port plate 22 and 32.
Low noise level.
Increased functional reliability.
High efficiency.
Good power to weight ratio.
Universal through drive for all sizes with port plate 22 and 32.
Optional pulsation damping.
Technical data
Size NG 45 71 100 140 180
Geometric displacement, per revolution Vg max cm3 45 71.1 100 140 180
Maximum rotational speed at Vg max nnom rpm 3000 2550 2300 2200 1800
Flow at nnom and Vg max qv l/min 135 181 230 308 324
Power at nnom, Vg max and Δp = 280 bar P kW 63 85 107 144 151
Torque at Vg max and Δp = 280 bar M Nm 200 317 446 624 802
at Vg max and Δp = 100 bar M Nm 72 113 159 223 286
Rotary stiffness S c Nm/rad 37500 71884 121142 169537 171107
Drive shaft R c Nm/rad 41025 76545 - - -
U c Nm/rad 30077 52779 91093 on request -
W c Nm/rad 34463 57460 101847 165594 -
Moment of inertia of the rotary group JTW kgm2 0.0035 0.0087 0.0167 0.0242 0.033
Maximum angular acceleration α rad/s² 4000 2900 2400 2000 2000
Case volume V L 1.0 1.6 2.2 3.0 2.7
Weight (11N00 and 12N00 without through drive) approx. m kg 25.8 40.4 56.4 70.5 75.2
Weight (12Kxx) approx. m kg 27.4 43.3 62.6 79.5 -
Weight (22Uxx/32Uxx) approx. m kg 32.6 51.8 76 90.2 89.4
Al A10V O100 Drs /32L-Vwc12n00 Rexroth A10V O100 Hydraulic Pump for Medium PressureAl A10V O100 Drs /32L-Vwc12n00 Rexroth A10V O100 Hydraulic Pump for Medium Pressure
