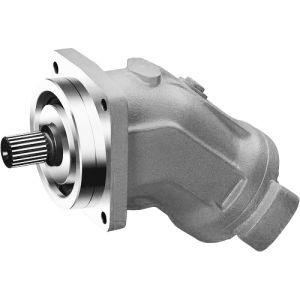

R902215441 A2FM5/60W-Vbb030 Rexroth Hydraulic Axial Piston Fixed Motor for High Speed
R902215441 A2FM5/60W-Vbb030 Rexroth Hydraulic Axial Piston Fixed Motor for High Speed
Specifications
Certification :
GS, RoHS, CE, ISO9001
Supply Ability :
500pieces/Year
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Brand Name :
Bosch Rexroth
Model Number :
A2FM5/60W-Vbb030
Place of Origin :
China
MOQ :
1 pcs
Price :
discussible
Delivery Time :
5days
Packaging Details :
Wooden box
Model NO. :
Rexroth
Excitation Mode :
Excited
Power Rating :
4000W
Casing Protection :
Open Type
Number of Poles :
12
Speed :
High Speed
Type :
Plunger Type
R902215441 :
A2FM5/60W-Vbb030
R902222048 :
A2FM5/60W-Vcb030
R902217689 :
A2FM5/60W-Vcb030-Y
R902233986 :
A2FM5/60W-Vcb030-Y
Trademark :
MKS
Transport Package :
Wooden Box
Specification :
cast iron
Origin :
China
HS Code :
8412291000
Port :
Foshan, China
Description

R902215441 A2FM5/60W-Vbb030 Rexroth Hydraulic Axial Piston Fixed Motor for High Speed

Basic Info.

Model NO.
Rexroth
Certification
GS, RoHS, CE, ISO9001
Excitation Mode
Excited
Power Rating
4000W
Casing Protection
Open Type
Number of Poles
12
Speed
High Speed
Type
Plunger Type
R902215441
A2FM5/60W-Vbb030
R902222048
A2FM5/60W-Vcb030
R902217689
A2FM5/60W-Vcb030-Y
R902233986
A2FM5/60W-Vcb030-Y
Trademark
MKS
Transport Package
Wooden Box
Specification
cast iron
Origin
China
HS Code
8412291000

Product Description

Technical data
All-purpose high pressure motor
Size 5 … 1000
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuits
Metric version
Features
Large variety of available nominal sizes allows exact adjustment to the application
High power density
Very high total efficiency
High starting efficiency
Working ports SAE flange or thread
Optional with integrated pressure relief valve
Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
Bent-axis design
Table of values
Size 5 10 12 16 23 28 32 107 125 160 180
Displacement geometric, per revolution Vg cm³ 4.93 10.3 12 16 22.9 28.1 32 106.7 125 160.4 180
Nominal pressure pnom bar 315 400 400 400 400 400 400 400 400 400 400
Maximum pressure pmax bar 350 450 450 450 450 450 450 450 450 450 450
Maximum speed nnom rpm 10000 8000 8000 8000 6300 6300 6300 4000 4000 3600 3600
nmax rpm 11000 8800 8800 8800 6900 6900 6900 4400 4400 4000 4000
Inlet flow at nnom qV l/min 49 82 96 128 144 177 202 427 500 577 648
Torque at pnom M Nm 24.7 66 76 102 146 179 204 679 796 1021 1146
Rotary stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 11.2 11.9 17.4 18.2
Moment of inertia for rotary group JTW kg·m² 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0116 0.0116 0.022 0.022
Maximum angular acceleration α rad/s² 5000 5000 5000 5000 6500 6500 6500 4500 4500 3500 3500
Case volume V l 0.17 0.17 0.17 0.2 0.2 0.2 0.8 0.8 1.1 1.1
Weight (approx.) m kg 2.5 5.4 5.4 5.4 9.5 9.5 9.5 32 32 45 45
Size 200 250 355 500 710 1000
Displacement geometric, per revolution Vg cm³ 200 250 355 500 710 1000
Nominal pressure pnom bar 400 350 350 350 350 350
Maximum pressure pmax bar 450 400 400 400 400 400
Maximum speed nnom rpm 2750 2700 2240 2000 1600 1800
nmax rpm 3000
Inlet flow at nnom qV l/min 550 675 795 1000 1136 1600
Torque at pnom M Nm 1273 1393 1978 2785 3955 5570
Rotary stiffness c kNm/rad 57.3 73.1 96.1 144 270 324
Moment of inertia for rotary group JTW kg·m² 0.0353 0.061 0.102 0.178 0.55 0.55
Maximum angular acceleration α rad/s² 11000 10000 8300 5500 4300 4500
Case volume V l 2.7 2.5 3.5 4.2 8 8
Weight (approx.) m kg 66 73 110 155 325 336

R902215441 A2FM5/60W-Vbb030 Rexroth Hydraulic Axial Piston Fixed Motor for High SpeedR902215441 A2FM5/60W-Vbb030 Rexroth Hydraulic Axial Piston Fixed Motor for High Speed
