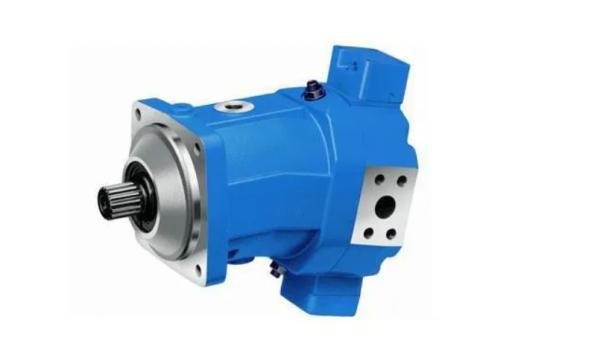

Bosch Rexroth Axial piston variable pump A7VO Series 63 Injection molding machine, hydraulic press,

Characteristics

– Variable displacement axial piston elements with tapered piston rotor group in helical design for open circuit hydraulic drives

– For mobile machine operation and industrial applications

– The flow rate of the hydraulic pump is proportional to the speed and displacement of the pump and varies infinitely from qv max to qv min = 0

– Wide control range and adjustment device

– Compact, robust bearing system with long service life

– Long-life bearings available for special oils and extremely long service life requirements

– Pressure control as standard

Control mode

DR pressure control

DRG remote pressure control

LRD power control with integrated pressure control

LRG with remote pressure control

LRDH with hydraulic stroke limitation

LRDN with hydraulic stroke limitation

HD.D hydraulic control, related to pilot pressure

HD.D with integrated pressure control

HD.G with remote pressure control

EP.D electric control with proportional valve

EP.D with integrated pressure control

EP.G with remote pressure control

Safety information
- The A7VO(LO) pumps are designed for operation in open circuits
- System design, installation and commissioning must be carried out by trained technicians or dealers.
- All hydraulic ports may only be used to install hydraulic working lines.
- The housing (especially the solenoid) may be very hot during and shortly after operation of the pump, so burns must be avoided; take appropriate safety precautions (wear protective clothing).
- Depending on the operating conditions (operating pressure, oil temperature) of the axial piston element, deviations in the performance curves may occur.
- Pressure ports:
All materials selected and port threads designed to withstand peak pressures.
Machine and system manufacturers must ensure that the safety factors of all connecting elements and hydraulic lines are suitable for the actual operating conditions (pressure, flow, oil, temperature).
- All data and information provided with the product must be observed.
- The product is not certified as a component in accordance with the requirements of the safety concept of the entire machine system in accordance with DIN EN ISO 13849.
- The following tightening torques apply:
• Threaded holes in the axial piston unit:
The maximum permissible tightening torque MGMax is the maximum value for the threaded holes in the pump housing and must not be exceeded. The values ​​are given in the table below.
• Accessories:
Observe the manufacturer's information on the maximum permissible tightening torques for the accessories used.
• Fastening screws:
For fastening screws in accordance with DIN 13, we recommend that you check the permissible tightening torques in the individual case in accordance with VDI 2230.
• Locking screws:
For the locking screws supplied with the axial piston unit, the following required minimum tightening torques MV should be applied.

For more detailed parameters of A7VOand other models, please contact our sales staf
