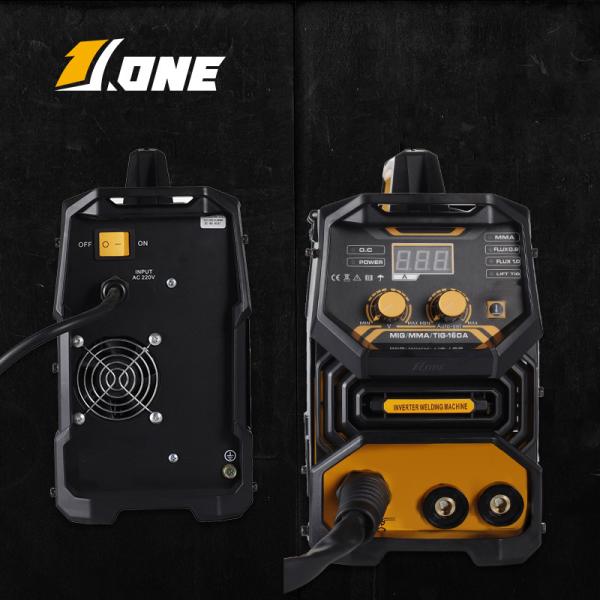

IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1
IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1
Specifications
Brand Name :
JONE
Model Number :
MIG/MMA/TIG-160B
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
500
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS per /month
Delivery Time :
4 WEEKS
Packaging Details :
CARTON
Type :
IGBT <1KG ,Gas/Gasless
AC Input Power Capacity(KVA) :
220V
Rated Input Power Capacity(KVA) :
5
Output current range(A) :
20-160
Efficiency(%) :
85%
Protection class of case :
IP21
Quick joint Size(mm) :
10-25
Input power cable(m) :
1.8
N.W./G.W.(kg) :
7.6/9.4
Machine Size(L*W*H) :
420*160*310 MM
Warranty :
24Months
Description

High Efficiency 5 In 1 All In One Welder 220 Volt Mig 160 Welder

MIG welding, or MIG, is an abbreviation for "Metal Inert Gas" which is more formally known as "Gas Metal Arc Welding" or "GMAW". This process uses a wire feed to feed solid filler wire to the weld joint. Before the wire creates an arc there needs to be a shielding gas feed through the system.

Welding is a manufacturing process that involves the use of heat and/or pressure to form a durable joint between two separate pieces of material. Depending on the part and production specifications, industry experts employ different welding techniques to create the required components. MIG and TIG welding are the two most commonly used welding methods. The following blog post compares the two, outlining what they are, their pros and cons, materials used, and typical industrial applications.

MIG welding is a type of arc welding in which the work piece is passed through a high voltage source and electrical power source to complete the weld process. The MIG (Metal Inert Gas) welding process uses gaseous shielding gases and inert filler wires to transfer a molten layer of metal from one piece to another. This process works best with light gauge materials such as stainless steel, aluminum and mild steel. MIG welding requires a clean surface before beginning any work. You should also be sure that there are no burrs on the edge of your weld or other parts that you want to cover with the finish coating or paint.
IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1

technical parameter

ModelMIG/MMA/TIG-160B
TypeIGBT ≤1kg gas/gasless
Real Amp(A)120
AC Input Voltage(V)220V (110V can do)
Rated Input Power Capacity(KVA)5
Input Frequency(Hz)50/60
Non-load Voltage(V)44
Output current range(A)20-160
Rated Duty Cycle(%)60%
Efficiency(%)85%
Class of InsulationF
Protection class of caseIP21
Wire diameter(mm)0.8/1.0
Wire weight(kg)≤ 1kg
Quick joint Size(mm)10-25
Input power cable(m)1.8
N.W./G.W.(kg)7.6/9.4
Machine Size(LxWxH mm)420*160*310
Package(LxWxH mm)/ 8 in 1455*270*355 kraft paper box
Accessories1.8M 16mm2 200A holder
1.2M 16mm2 300A clamp
2m Build-in Torch
Brush, Mask, Manual






IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1




IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1




IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1
IGBT Mini Mig Welding Machine , 220 Volt Mig 160 Welder 5 In 1
