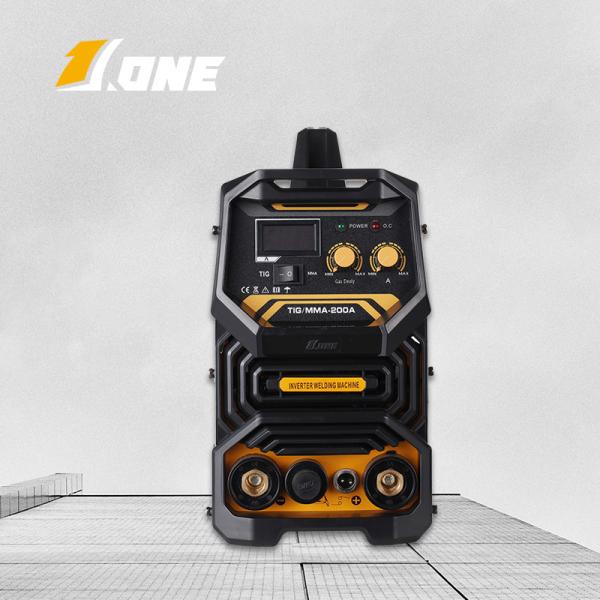

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
Specifications
Brand Name :
JONE
Model Number :
TIG/MMA-200A
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
300
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS /month
Delivery Time :
4 WEEKS
Packaging Details :
CARTON
Price :
Negotiate
Type :
IGBT 1 PCB
AC Input Power Capacity(KVA) :
220V
Rated Input Power Capacity(KVA) :
7
Input Frequency(Hz) :
50/60
Non-load Voltage(V) :
56
Output current range(A) :
20-200
Rated Duty Cycle(%) :
60%
Efficiency(%) :
85%
Class of Insulation :
F
Protection class of case :
IP21
Quick joint Size(mm) :
35-50
Input power cable(m) :
1.8M
N.W./G.W.(kg) :
4.5/8.3kg
Accessories :
4M WP-17 Black Torch、clamp、holder、 mask、brush、manual
Usage :
welding
Condition :
New
Machine Size(L*W*H) :
420*160*310 MM
Warranty :
24Months
Description

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

TIG welding article is a type of fusion in which an arch is formed between a non-fragile tungsten electrode and the metal being fused. It has lots of benefits as well as drawbacks. When you are handling a manufacturing business where consumer product's appearance is one of the main important things, then the solo option has to be TIG. Some of the works that need code requirements such as piping; nuclear work and high profile consumer products regularly require at least the primary weld in the pipe joint to be TIG for an efficient connection

TIG (Tungsten Arc Welding) is a type of fusion in which an arc is formed between a non-fragile tungsten electrode and the metal being fused. Tungsten generates high temperature and it has high melting power as well as superior electrical characteristic, which is one of the reasons it is used for electrode.

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

technical parameter

Model TIG/MMA-200A
Type IGBT 1PCB
Real Amp(A) 160
AC Input Voltage(V) 220V(110V/220V can do)
Rated Input Power Capacity(KVA) 7
Input Frequency(Hz) 50/60
Non-load Voltage(V) 56
Output current range(A) 20-200
Rated Duty Cycle(%) 60%
Efficiency(%) 85%
Class of Insulation F
Protection class of case IP21
Quick joint Size(mm) 35-50
Input power cable(m) 1.8
N.W./G.W.(kg) 4.5/8.3KG
Machine Size(LxWxH mm) 420*160*310
Package(LxWxH mm) 455*270*355 kraft paper box+ foam
Accessories 1.8M 16mm2 200A holder
1.2M 16mm2 300A clamp
4M WP-17 Black Torch
Brush, Mask, Manual

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment

Professional Digital Igbt Tig Welder 160Amp Tig Welding Equipment
