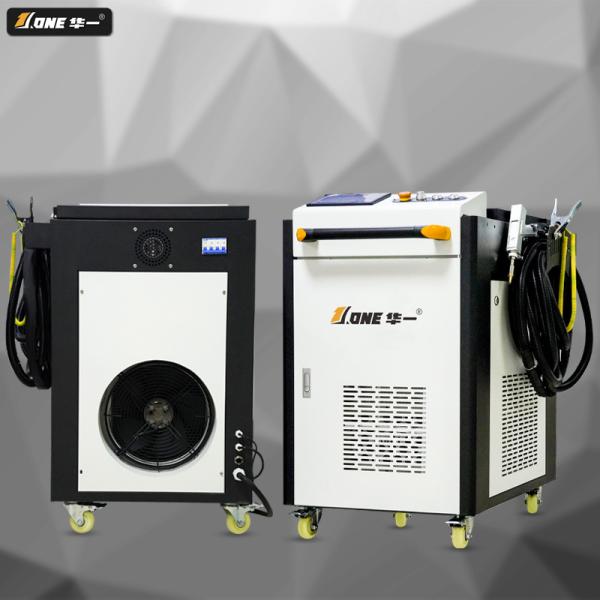

0.2-3.5mm Thick 1KW Handheld Fiber Laser Welding Machine For Metal
0.2-3.5mm Thick 1KW Handheld Fiber Laser Welding Machine For Metal
Specifications
Brand Name :
JONE
Model Number :
HY-1000W
Certification :
ISO9001,CE,CCC
Place of Origin :
China
MOQ :
1PC
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union,D/A, D/P
Supply Ability :
5 thousand pieces per year
Delivery Time :
30days
Conduction Type :
fiber
Voltage（HZ) :
220V±10%50Hz
Laser Wavelength(nm) :
1080±3nm
Laser Power(W) :
1000W
Pulse Frequency(KHz) :
50-30KHz
Laser Output Focal Length(mm) :
120/150mm
Cooling System :
water cooling
Fiber Cable length(M) :
10
Type Of Shielding Gas :
Argon nitrogen mixture
Power Consumption(KW) :
6KW
Air Pressure Requirements(Bar) :
welding1-2Bar/cutting3-4Bar
Machine Size(cm) :
97*54*102
Working Ambient Temperature(℃) :
-10C-40C
Weld Thickness(MM) :
0.2-3.5mm
Welding Gap(MM) :
≤0.5mm
Description

Handheld Metal Optical 1000W 1500W Fiber Laser Welding Machine Lazer Welders Stainless Steel Fiber Laser Welding

Handheld Fiber Laser Welding Machine Features:

  • The Laser welder has focused high energy, and the welding intensity is very high. The welding speed is super fast. A handheld laser welding machine can replace the output of 3 to 5 welders. Welding is without consumables, saving costs in production. The operation is simple, unexperienced people can also use it quickly.

Handheld Fiber Laser Welding Machine Specification:

​

MODEL HY-1000C
Conduction Type fiber
Voltage(HZ) 220V±10%50Hz
Laser Wavelength(nm) 1080±3nm
Laser Power(W) 1000W
Pulse Frequency(KHz) 50-30KHz
Laser Output Focal Length(mm) 120/150mm
Cooling System water cooling
Fiber Cable length(M) 10
Type Of Shielding Gas Argon nitrogen mixture
Power Consumption(KW) 6KW
Air Pressure Requirements(Bar) welding1-2Bar/cutting3-4Bar
Machine Size(cm) 97*54*102
Working Ambient Temperature(℃) -10C-40C
Weld Thickness(MM) 0.2-3.5mm
Welding Gap(MM) ≤0.5mm
Machine Weight(KG) 125KG
Wire Feeder Weight(KG) 17KG



0.2-3.5mm Thick 1KW Handheld Fiber Laser Welding Machine For Metal

FAQ

Q:What makes you different from other welding machines companies?
A:We work in the hardware capital of China and we know most of the welding machines factories working methods, culture, business style, key persons and other relevant details. We look beyond a welding machines business which is just product based. We strongly believe that having a good positive working culture and put together a skilled and motivated team can reflect on our welding products and the service provided to our customers.


Q:How do your factory do regarding quality control?
A:Our factory has gained the certificate and ISO9001 authentication. Quality makes us who we are today. We focus on the welding machines quality from the very beginning to the end.

Q:Can you offer welding machines for testing?

A:Yes, we can offer welding machines for the test.
