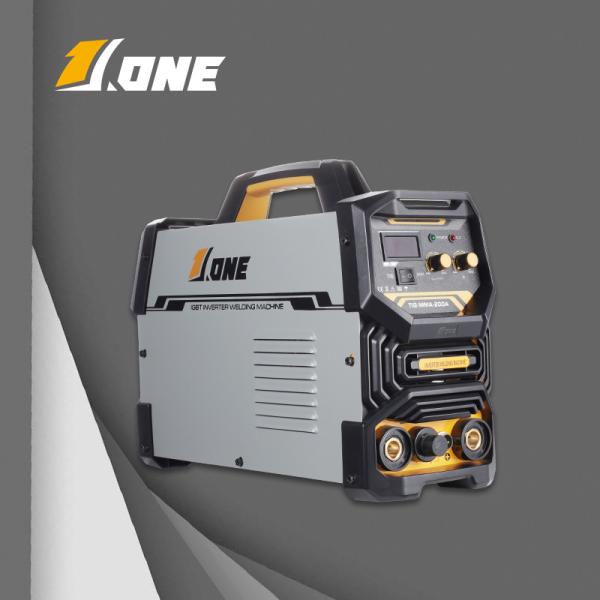

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty
WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty
Specifications
Brand Name :
JONE
Model Number :
TIG/MMA-200A
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
300
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS /month
Delivery Time :
4 WEEKS
Packaging Details :
CARTON
Price :
Negotiate
Type :
IGBT 1 PCB
AC Input Power Capacity(KVA) :
220V
Rated Input Power Capacity(KVA) :
7
Input Frequency(Hz) :
50/60
Non-load Voltage(V) :
56
Output current range(A) :
20-200
Rated Duty Cycle(%) :
60%
Efficiency(%) :
85%
Class of Insulation :
F
Protection class of case :
IP21
Quick joint Size(mm) :
35-50
Input power cable(m) :
1.8M
N.W./G.W.(kg) :
4.5/8.3kg
Accessories :
4M WP-17 Black Torch、clamp、holder、 mask、brush、manual
Usage :
welding
Condition :
New
Machine Size(L*W*H) :
420*160*310 MM
Warranty :
24Months
Description

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

TIG welding is the most common welding process. There are a number of reasons why this is. Innovative and attractive, TIG welding can be used to seal difficult-to-weld areas such as those on the underside of sinks and in aprons.

1. The new closed-loop control circuit achieves the formation of a low-splash arc.

2. Adopt inverter technology, stable welding.

3. New arc control technology, arc choose is easy and efficient.

4. Wide range of welding current adjustment, under high-speed welding performance excellent, stable.

technical parameter

Model TIG/MMA-200A
Type IGBT 1PCB
Real Amp(A) 160
AC Input Voltage(V) 220V(110V/220V can do)
Rated Input Power Capacity(KVA) 7
Input Frequency(Hz) 50/60
Non-load Voltage(V) 56
Output current range(A) 20-200
Rated Duty Cycle(%) 60%
Efficiency(%) 85%
Class of Insulation F
Protection class of case IP21
Quick joint Size(mm) 35-50
Input power cable(m) 1.8
N.W./G.W.(kg) 4.5/8.3KG
Machine Size(LxWxH mm) 420*160*310
Package(LxWxH mm) 455*270*355 kraft paper box+ foam
Accessories 1.8M 16mm2 200A holder
1.2M 16mm2 300A clamp
4M WP-17 Black Torch
Brush, Mask, Manual

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty

WS-200A High Frequency Aluminum Tig Welder 220V 24 Months Warranty
