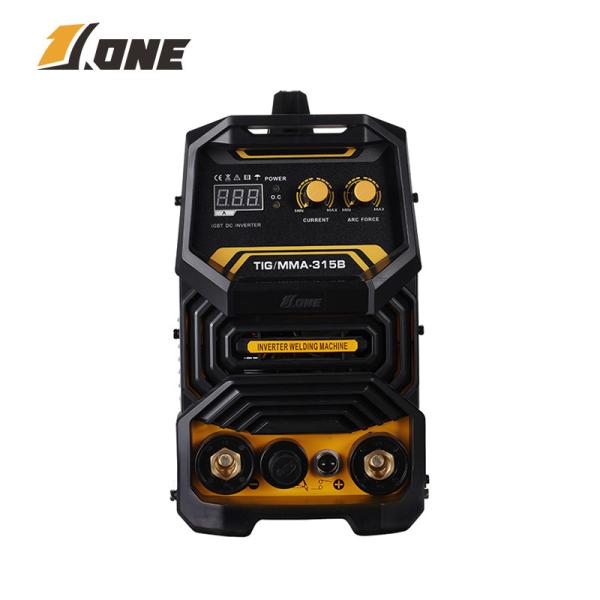

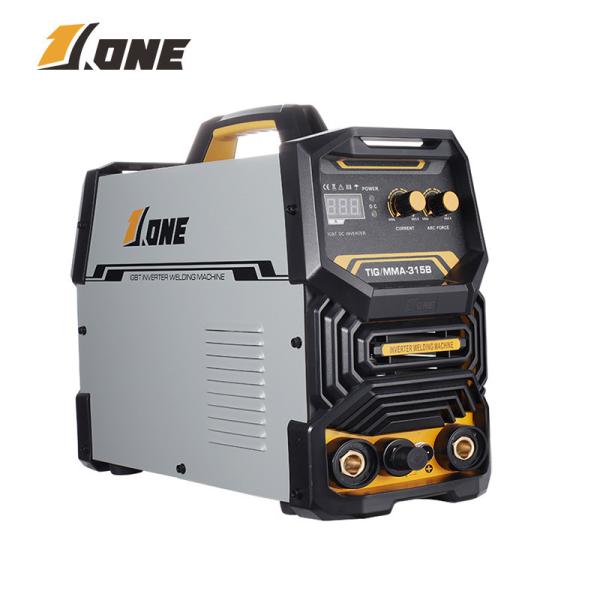

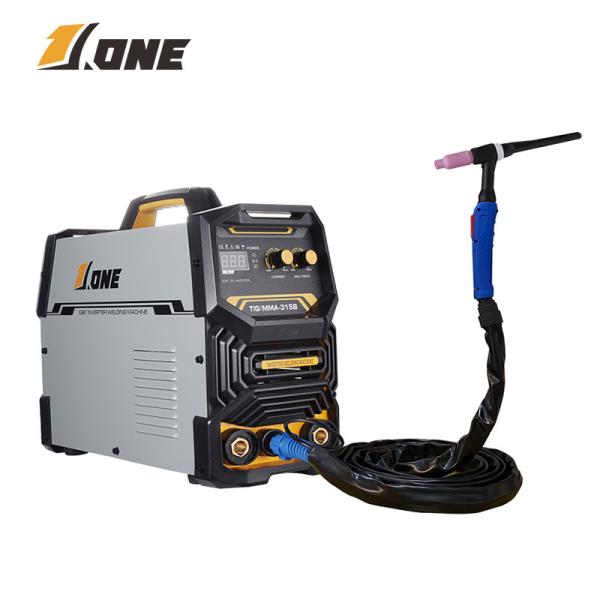

High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B
Specifications
Brand Name :
JONE
Model Number :
TIG/MMA-315B
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
100
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS+per /month
Delivery Time :
4 WEEKS
Packaging Details :
CARTON
Type :
MOS 3 PCB
AC Input Power Capacity(KVA) :
220V
Rated Input Power Capacity(KVA) :
9.2
Input Frequency(Hz) :
50/60
Non-load Voltage(V) :
56
Output current range(A) :
20-315
Rated Duty Cycle(%) :
60%
Efficiency(%) :
85%
Class of Insulation :
F
Protection class of case :
IP21
Quick joint Size(mm) :
35-50
N.W./G.W.(kg) :
11/15kg
Accessories :
4M WP-26 Blue Torch、clamp、holder、 mask、brush、manual
Usage :
welding
Condition :
New
Machine Size(L*W*H) :
480*215*380 MM
Warranty :
24Months
Description

JONE soldador tig mma aluminum MOS welding machine tig/mma 315B

  • The TIG/MMA 200 Inverter Welding Machine offers a duty cycle of 60% at 200 A welding current with inverter technology for low weight and high power.
  • The HF high-frequency ignition ignites the arc during TIG welding without touching the workpiece.
  • The JONE TIG MOS multi-purpose welding machine TIG/MMA is designed for arc welding.
  • The powerful and effective inverter allows a duty cycle of 60% at 200A welding current

High Efficiency 9.2KVA MOS TIG MMA Welder Aluminum Tig Machine 315B

technical parameter

Model TIG/MMA-250B TIG/MMA-315B
Type MOS 3PCB MOS 3PCB
AC Input Voltage(V) 220V(110V/220V can do) 220V
Output current range(A) 20-200 20-315
Rated Input Power Capacity(KVA) 7 9.2
Input Frequency(Hz) 50~60 50~60
Non-load Voltage(V) 56 56
Rated Duty Cycle(%) 60% 60%
Efficiency(%) 85% 85%
Class of Insulation F F
Protection class of case IP21 IP21
Quick joint Size 35-50 35-50
GW/NW(KG) 6/10KG 11/15KG
Machine Size(LxWxH mm) 420*160*310 480*215*380
Package(LxWxH mm) 455*270*355 kraft paper box+ foam 540*295*425 kraft paper box+ foam
Accessories 1.8M 16mm2 200A holder 1.8M 25mm2300A holder
1.2M 16mm2 300A clamp 1.2M25mm2 300A clamp
4M WP-17 Black Torch 4M WP-26 Blue Torch
Brush, Mask, Manual Brush, Mask, Manual
