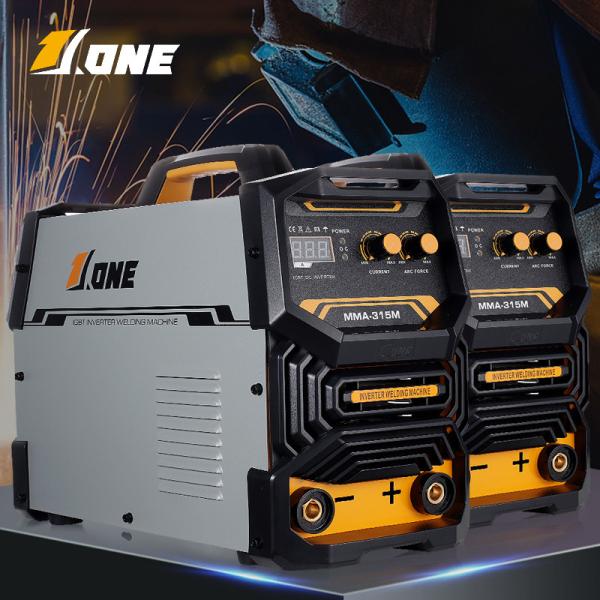

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder
Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder
Specifications
Brand Name :
JONE
Model Number :
MMA-250M 280M 315M
Certification :
ISO9001,CE,CCC
Place of Origin :
China
MOQ :
100PCS
Payment Terms :
L/C, T/T, Western Union,, D/A, D/P
Supply Ability :
1 million pieces per year
Delivery Time :
30days
Packaging Details :
455*270*355 kraft paper box
Price :
Negotiate
Type :
MOS 3 PCB
AC Input Voltage(V) :
220V (110V/220V can do)
Real Amp(A) :
160A/180A/220A
Non-load Voltage(V) :
56
Rated Input Power Capacity(KVA) :
7
N.W./G.W.(kg) :
5.3/6.8
Machine Size(LxWxH mm) :
420*160*310
Package(LxWxH mm) :
455*270*355 kraft paper box
Description

Compact maquina de soldar portable mos mma250/280/315M dc arc inverter welding machine 110v machinery dual voltage mma

Description

  • This series is MOS inverter DC MMA welding machine with 3 PCB technology, with single phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. The inverter arc welding machine features energy saving, multiple functions, portability and user friendly. It adopt the most advanced inverter technology, that guarantees superior welding performance, nice welding result and minimum post-welding treatment.

  • This series is MOS inverter DC MMA welding machine with 3 PCB technology, with 1 phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. Machine is small and lightweight while welding performance is powerful.

Features

  • minimum post welding process

  • wide usage for metal workshops

  • excellent welding performance

​​​MMA inverter welder characteristics

  • The MMA-315M is ergonomically-designed so that you don’t have to contort yourself into any awkward positions while you work.

  • It’s water-resistant design means that it can withstand heavy rain without getting damaged or losing power; it also keeps out dust and other debris so that your workspace stays clean and tidy.

Model MMA-250M MMA-280M MMA-315M
Type MOS 3PCB MOS 3PCB MOS 3PCB
Real Amp(A) 160 180 220
AC Input Voltage(V) 220V (110V/220V can do) 220V (110V/220V can do) 220V (110V/220V can do)
Rated Input Power Capacity(KVA) 7 7.7 9.2
Input Frequency(Hz) 50/60 50/60 50/60
Non-load Voltage(V) 56 56 56
Output current range(A) 20-250 20-280 20-315
Rated Duty Cycle(%) 60% 60% 60%
Efficiency(%) 85% 85% 85%
Class of Insulation F F F
Protection class of case IP21 IP21 IP21
Electrode diameter (mm) 1.6-4.0 1.6-5.0 1.6-5.0
Quick joint Size(mm) 35-50 35-50 35-50
Input power cable(m) 1.8 1.8 1.8
N.W./G.W.(kg) 5.3/6.8 6/7.5 11/13
Machine Size(LxWxH mm) 420*160*310 420*160*310 480*215*380
Package(LxWxH mm) 455*270*355 kraft paper box 455*270*355 kraft paper box 540*295*425 kraft paper box
Accessories 1.8m 16mm2 200A holder 1.8m 16mm2 200A holder 1.8m 25mm2 300A holder
1.2m 16mm2 300A clamp 1.2m 16mm2 300A clamp 1.2m 25mm2 300A clamp
Brush,Mask,Manual Brush,Mask,Manual Brush,Mask,Manual

Advantages Of Electric Welding Machine

  • Our electric welding machine is widely used in various fields, including the manufacture of storage gas and liquid containers. After heat treatment, the weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength.Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

Compact 7KVA Dc Inverter MMA Welder Dual Voltage 110v Mma Welder

FAQ

Q:Do you have quality assurance and certificates?

A:Yes, every machine is tested 5 times before it is born and at least 20 minutes before shipping. Strict quality control is performed in every procedure from material sourcing, processing and testing to packaging.And we have certificates if you want it, contact us and give us your E-mail address we will send you.

Q:May I get some samples first?

A:Yes my friend,It’s our pleasure to provide you samples. After price and large order confirmed, the samples fee will be regressed.

Q:Payment

A:30% deposit,70% balance.T/T, L/C,WESTERN UNION, Trade Assurance is recommended, you could pay through Trade Assurance on Alibaba.
