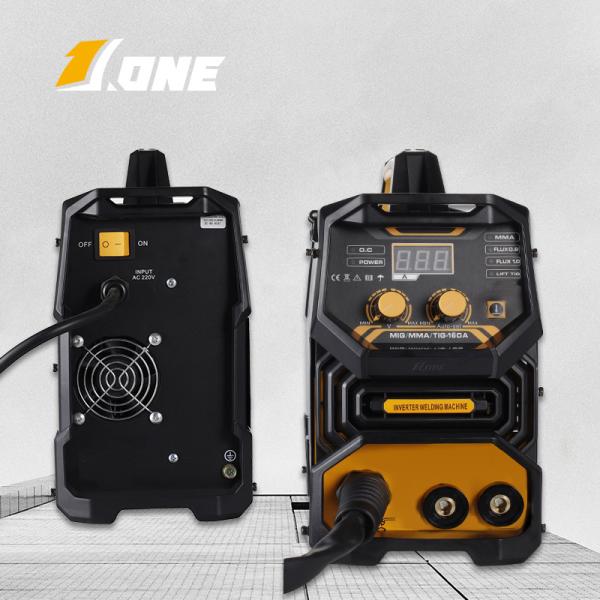

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine
Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine
Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine
Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine
Specifications
Brand Name :
JONE
Model Number :
MIG/MMA/TIG-160A
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
70000 PCS per /month
Delivery Time :
4 WEEKS
Packaging Details :
CARTON
Price :
Negotiate
Type :
IGBT <1KG ,Gasless
AC Input Power Capacity(KVA) :
220V
Input Frequency(Hz) :
50/60
Output current range(A) :
20-160
Rated Duty Cycle(%) :
60%
Input power cable(m) :
1.8
N.W./G.W.(kg) :
7.4/9.2
Accessories :
holder、clamp、2M Build-in Torch mask、brush、manual
Condition :
New
Machine Size(L*W*H) :
420*160*310 MM
Description

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine

MIG welding is a great choice for those who want to create a strong bond without the risk of damaging their materials. The MIG gun uses a wire feed to feed solid filler wire to the weld joint. The wire take is connected to a constant voltage power supply that creates the arc to melt the wire when it hits the weld joint. Before the wire creates an arc there needs to be a shielding gas feed through the system.

The Mig welding machine is a handy welding system that is commonly used by all welders. It has three basic components: wire, wire feed and constant voltage power supply. The wire is fed through the gun and into the work piece using an adjustable cutting wheel. When using a MIG gun, you need to shut off the power source when not in use to avoid over overheating of your welding tip and power source.

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine

Model MIG/MMA/TIG-160A
Type IGBT≤ 1kg, Gasless
AC Input Voltage(V) 220V (110V can do)
Rated Input Power Capacity(KVA) 5
Input Frequency(Hz) 50/60
Non-load Voltage(V) 68
Output current range(A) 20-160
Rated Duty Cycle(%) 60%
Efficiency(%) 85%
Class of Insulation F
Protection class of case IP21
Wire diameter(mm) 0.8/1.0
Wire weight(kg) ≤ 1kg
Quick joint Size(mm) 10-25
Input power cable(m) 1.8
N.W./G.W.(kg) 7.4/9.2
Machine Size(LxWxH mm) 420*160*310
Package(LxWxH mm)/ 8 in 1 455*270*355 kraft paper box
Accessories 1.8M 16mm2 200A holder
1.2M 16mm2 300A clamp
2m Build-in Torch
Brush, Mask, Manual

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine

Stainless Steel MIG MMA Welder 3 In 1 Intelligent Multifunctional Welding Machine
