portable tool or a heavy-duty machine
You'll enjoy our digital signal processing and synergic system, which ensure that your welds are exactly where they need to be—and no matter what kind of wire you're using—you'll always get an excellent weld. And because we want our customers to be able to get their work done without worrying about post-welding processes or other unnecessary hoops, we've designed our machines so that they can be used without gas!

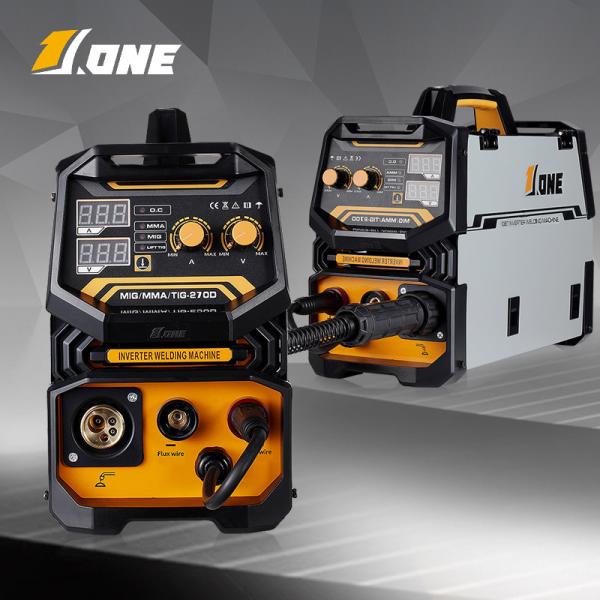

Model | MIG/MMA/TIG-270D |
Type | IGBT, ≤ 5kg, Gas/Gasless type |
Real Amp(A) | 200 |
AC Input Voltage(V) | 220V |
Rated Input Power Capacity(KVA) | 8 |
Input Frequency(Hz) | 50/60 |
Non-load Voltage(V) | 52 |
Output current range(A) | 20-200 |
Rated Duty Cycle(%) | 73% |
Efficiency(%) | 85% |
Class of Insulation | F |
Protection class of case | IP21 |
Wire diameter(mm) | 0.8/1.0 |
Wire weight(kg) | ≤ 5kg |
Quick joint Size(mm) | 35-50 |
Input power cable(m) | 3 |
N.W./G.W.(kg) | 9.4/13 |
Machine Size(LxWxH mm) | 420*190*370 |
Package(LxWxH mm) | 535*265*450 kraft paper box+ foam |
Accessories | 3M 16mm2 300A holder |
3M 16mm2 300A clamp | |
3m 15AK Torch | |
3M lift-tig Torch | |
Brush, Manual |
Q: Are you a factory or trading company?
A: We are trading company with our own factory with more than 10 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9001 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
Q:Payment
A:30% deposit,70% balance.T/T, L/C,WESTERN UNION, Trade Assurance is recommended, you could pay through Trade Assurance on Alibaba.
