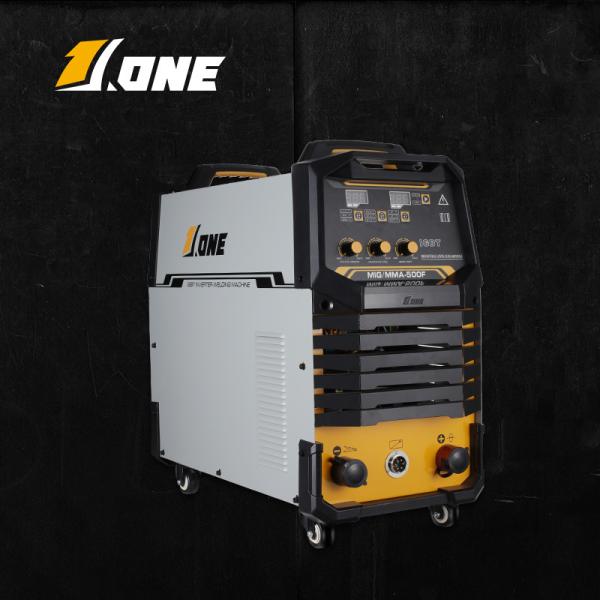

15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500
Specifications
Brand Name :
JONE
Model Number :
MIG/MMA-350F 500F
Certification :
CE、ISO9001
Place of Origin :
GUANGDONG,CHINA
MOQ :
10
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000 pieces per year
Delivery Time :
30 days
Packaging Details :
kraft paper box with foam
Type :
IGBT MODULE
AC Input Power Capacity(KVA) :
380V
Input Frequency(Hz) :
50/60
Non-load Voltage(V) :
54
Output current range(A) :
50-350A
Welding-wire diameter (mm) :
0.8, 1.0, 1.2
Rated Duty Cycle(%) :
35℃/40%
Efficiency(%) :
93%
Quick joint Size(mm) :
50-70
Type of the wire feeder :
DC24V-350A
Machine Size(LxWxH mm) :
580*330*600
Package Dimension(LxWxH mm) :
670*330*585
Description

15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500

The MIG weld is a thin joint between two pieces of metal. It is created by melting a piece of solid wire in to the work piece, creating an arc that melts the materials together. The process starts with a wire feed then rapidly moves through power settings including constant current and constant voltage increasing the heat in the joint. A shielding gas feeds through the system creating an arc until it reaches the weld joint and melts the materials together making them one strong piece of steel or copper.

MIG welding is a familiar and popular process that offers many benefits to the owner of a weld shop. These include the ability to produce complex shapes, reduced rework time, lower cost and quality of work, longer lasting welds due to less overheating and difficult-to-maintain electrode contamination, as well as providing a larger range of materials than stick welding. The process of MIG welding also provides new types of equipment with which you can use in your business.

15kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-50015kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-50015kg Wire Built In Wide Voltage Industrial MIG Welder With Spool Gun MIG-500

technical parameter

Model MIG/MMA-350F MIG/MMA-500F
Type of the wire feeder IGBT MODILE 15KG MIG WIRE IGBT MODILE 15KG MIG WIRE
Real Amp(A) 350 500
AC input Voltage(V) AC 380V AC 380V
Rated Input Power Capacity(KVA) 14 25
Input Frequency(Hz) 50/60 50/60
Non-load Voltage(V) 54V 56V
Output current range(A) 50-350A 50-500A
Welding-wire diameter (mm) 0.8, 1.0, 1.2 0.8,1.0, 1.2,1.6
Rated Duty Cycle(%) 35℃/40% 35℃/60%
Efficiency(%) 93% 93%
Class of Insulation F F
Protection class of case IP21S IP21S
Quick joint Size(mm) 50-70 50-70
Type of the wire feeder DC24V-350A DC24V-500A
Wire-feeding speed (m/min) 3.6--12 3.6--20
Post flow time (S) 0.5 0.5
N.W./G.W.(kg) 25/29 32/36
Machine Size(LxWxH mm) 580*330*600 650*330*630
Package Dimension(LxWxH mm) 670*330*585 kraft paper box+foam 765*425*680mm kraft paper box+foam
