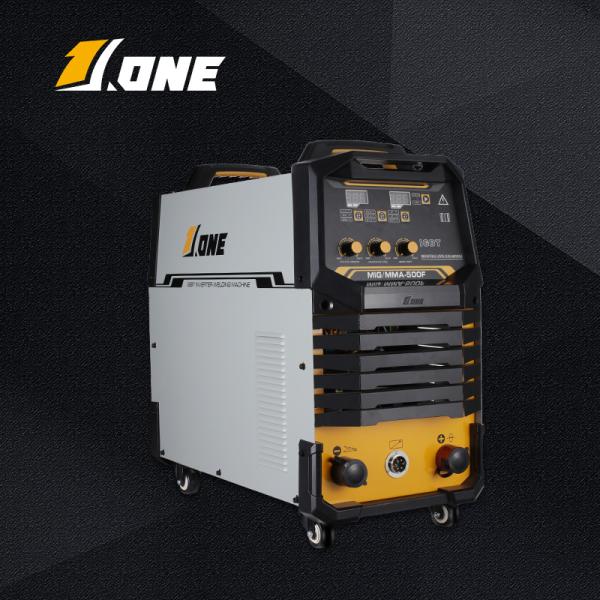

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel
IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel
Specifications
Brand Name :
JONE
Model Number :
MIG/MMA-350F 500F
Certification :
CE、ISO9001
Place of Origin :
GUANGDONG,CHINA
MOQ :
10
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000 pieces per year
Delivery Time :
30 days
Packaging Details :
kraft paper box with foam
Type :
IGBT MODULE
AC Input Power Capacity(KVA) :
380V
Input Frequency(Hz) :
50/60
Non-load Voltage(V) :
54
Output current range(A) :
50-350A
Welding-wire diameter (mm) :
0.8, 1.0, 1.2
Rated Duty Cycle(%) :
35℃/40%
Efficiency(%) :
93%
Quick joint Size(mm) :
50-70
Type of the wire feeder :
DC24V-350A
Machine Size(LxWxH mm) :
580*330*600
Package Dimension(LxWxH mm) :
670*330*585
Description

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

  • Wide range of welding current adjustment, under high-speed welding performance excellent, stable.
  • Multiple protection functions: output short-circuit protection, overheat protection, inverter overcurrent or overvoltage protection.
  • The longest output cable is 100m, satisfy long distance welding.
  • Panel function design is reasonable, the welding regulates design is easy, intuitive, operate conveniently.
  • Reasonable whole machine structure design has good rainproof and dustproof function, suit the bad environment of welding, especially the high-temperature environment.
  • Welding machine stably works when the voltage or arc fluctuates.

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless SteelIGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless SteelIGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

technical parameter

Model MIG/MMA-350F MIG/MMA-500F
Type of the wire feeder IGBT MODILE 15KG MIG WIRE IGBT MODILE 15KG MIG WIRE
Real Amp(A) 350 500
AC input Voltage(V) AC 380V AC 380V
Rated Input Power Capacity(KVA) 14 25
Input Frequency(Hz) 50/60 50/60
Non-load Voltage(V) 54V 56V
Output current range(A) 50-350A 50-500A
Welding-wire diameter (mm) 0.8, 1.0, 1.2 0.8,1.0, 1.2,1.6
Rated Duty Cycle(%) 35℃/40% 35℃/60%
Efficiency(%) 93% 93%
Class of Insulation F F
Protection class of case IP21S IP21S
Quick joint Size(mm) 50-70 50-70
Type of the wire feeder DC24V-350A DC24V-500A
Wire-feeding speed (m/min) 3.6--12 3.6--20
Post flow time (S) 0.5 0.5
N.W./G.W.(kg) 25/29 32/36
Machine Size(LxWxH mm) 580*330*600 650*330*630
Package Dimension(LxWxH mm) 670*330*585 kraft paper box+foam 765*425*680mm kraft paper box+foam

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel

IGBT MODULE Mig Arc Welder 50-350A Mig Welding Machine For Stainless Steel
