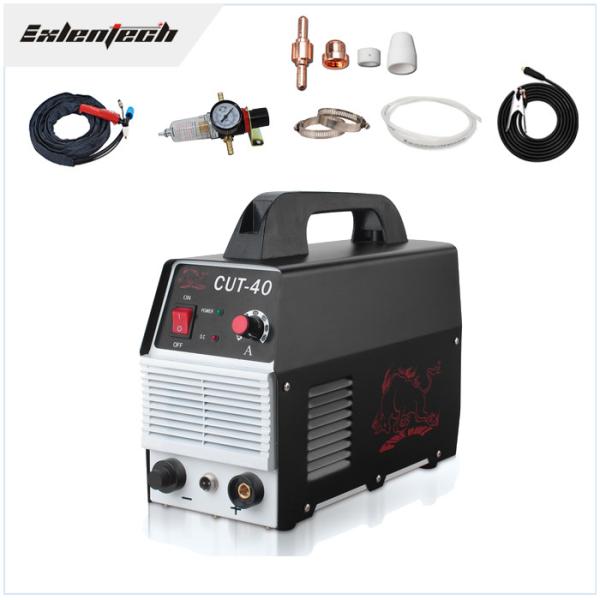

Mini Cut 40A Portable Cnc Plasma Cutter 50Hz For Carbon Steel
Mini Cut 40 Portable Air Plasma Cutting Machine Welder Plasma Cutter Max Cutting 10mm
Portable plasma cutter features:
1. Intensive arc, high cutting speed, narrow and smooth kerf, continuous current regulation, little distortion for work-piece, safety and reliable for operation;
2. Applicable to automatic cutting equipment;
3. Suitable for carbon steel, stainless steel, aluminum, copper, etc.
4. Complete accessories: air cooling cutting torch, earth clamp, compressed air regulator, etc.
Model | CUT-40 |
Input power Voltage Frequency(V,Hz): | AC220(single phase)±15%,50/60 |
Rated input power capacity(KVA): | 4.8 |
No-load voltage(V): | 230 |
Output current range.(A): | 10-40 |
Rated output voltage(V): | 96 |
Duty cycle (%)(25ºC): | 60 |
No-load loss(w): | 40 |
Arc-starting: | H/F |
Efficiency(%): | 85 |
Power factor (COSφ): | 0.93 |
Insulation class: | F |
Weight(KG): | 9 |
Overall dimension(mm): | 365×138×238 |
Case protection degree : | IP21S |
Air compressor displacement(S): | 0.17 |
Fine cutting thickness(mm): | 5 |
Max cutting thickness(mm): | 12 |
MOQ:
· If you need OEM service or need to distribute our brand? the quantity will be different accordingly,and different model with different MOQ. Please Contact us for more information.
· If you need small quantity for your own use, and you can accept our brand,small quantity could be acceptable.
Payment:
· TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
· Around 20 days after confirming the payment
Sample Issue
First time to use this kind of machine
· There is an English manual or guide video that show you how to use machine.
· If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
What about the after sales service?
