High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons
High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons
High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons
High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons
Specifications
Brand Name :
JN
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
200 sets per month
Delivery Time :
within 20 days
Packaging Details :
Usually wooden case for small size, Container for big size.
Belt Width :
500/550/650/800/1000mm
Conveying Distance :
3-30m
Voltage :
220/380/415V/440V
Work environment humidity :
-40℃~45℃
Continuous working time :
not less than 24 hours
Belt Speed :
0.80/1.00/1.25/1.60/2.00/2.50m/s
Lifting Height :
0.8~12.5m
Capacity :
25~550m³
Description

High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons

Description & Application:

Mobile Conveyor Belt System were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines.

Specification / Techincal Parameter :

High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons

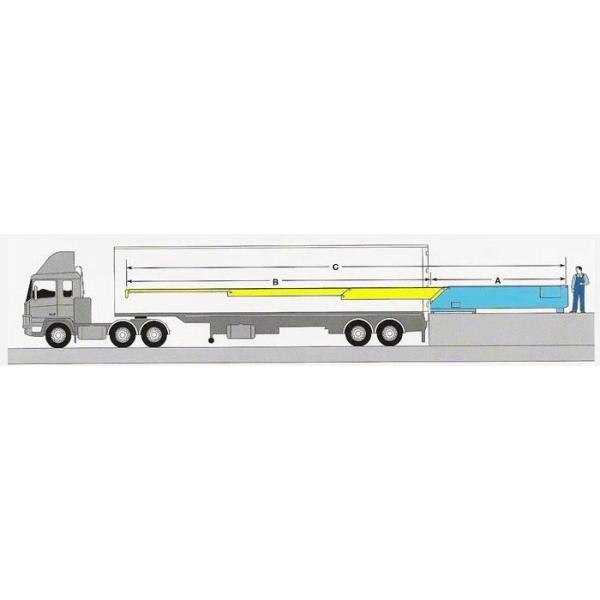

Model Section

Base length

A (mm)

Extension Length

B (mm)

Total Length

C (mm)

Belt-W

(mm)

 Minimum H (mm)
JN-A2-6/4 2 sections 6000 4000 10000 600/800 700
JN -A3-5/7

3 sections

 5000 7000 12000 600/800 700
JN -A3-6/8.5 6000 8500 14500 600/800 700
JN -A3-7/10 7000 10000 17000 600/800 700
JN -A4-5/10

4 sections

 5000 10000 15000 600/800 800
JN -A4-6/12.5 6000 12500 18500 600/800 800
JN -A4-7/15 7000 15000 22000 600/800 800
JN -A4-7.5/16 7500 16000 23500 600/800 800
JN -A5-6/15 5 sections 6000 15000 21000 600/800 950
JN-A6-4.5/12.5 6 sections 4500 12500 17000 600/800 1100

Benefits:
· Reduce the distance between the manual and the handling material
· Shorten the time of loading and unloading
· Reduce the rate of damage and broke down

Features:


· Easy operation : breaks artificial moving back and forth, reduce labor intensity.

· Efficient operation: The Maximum loading amount up to 2250 per hour if based on standard loading speed of 30 m/min for carton.
· Standard work : loading, storage field in an orderly and effectively operations to avoid the mess phenomenon.
· Save labor: artificial can reduce more than 2/3 based on original loading way.
· Safety operation: bring the lowest accident rate in the process of loading, even at zero incidences.
· Promote the enterprise image: standard automation equipment conform to the requirements of

modern enterprise.

According to your vehicle length/ warehouse condition, we have several models for your reference.

High Performance Mobile Telescopic Belt Conveyor with Hydraulic Lift For Bags Basket And Cartons
