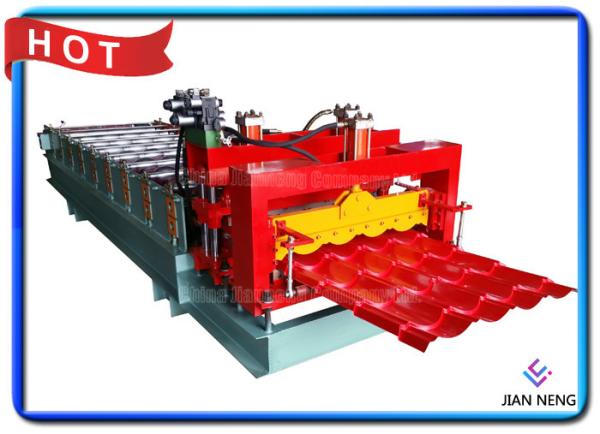

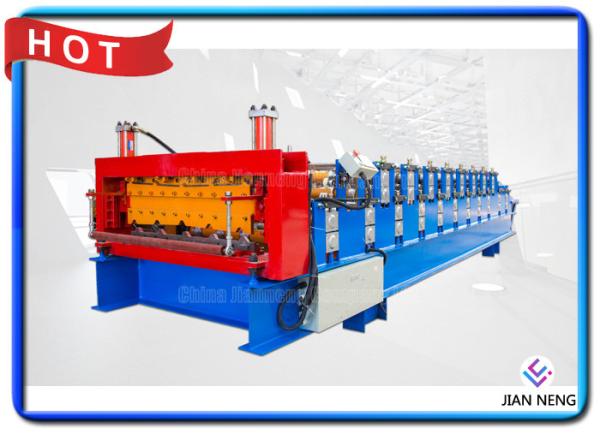

IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness
IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness
IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness
IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.2-0.8mm
Raw Material :
PPGI, PI, CR, Q235
Usage :
Roof, Floor, Wall ect.
Workers needed :
2 Person
Electrical control system :
Auto PLC
Working time :
Can be 24 hours
Coil width :
Custom-made, 1000/1200 /1250 mm
Forming Stations :
13-22 Stations ( Depend on Profiles )
Description

IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Maching

Reference Specifications of Glazed Tile Roll Forming Machine:

No. Main parameter of Glazed Tile Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 1200mm
3 Rollers 12 rows
4 Dimensions 7200*1550*1510m
5 Power 4+4kw
6 Rolling material 45# steel(plated chrome on surface)
6 Thickness of the plate 0.3-0.6mm
7 Productivity 4m/min
8 Diameter of the roller Φ70mm
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control

Main Components

· Decoiler -------------------------------------------------- 1 Unit

· Film covering device --------------------------------- 1 Unit

· Feeding guide ------------------------------------------ 1 Unit

· Main roll forming machine --------------------------- 1 Unit

· Hydraulic pressing device --------------------------- 1 Unit

· Hydraulic cutting device ------------------------------ 1 Unit

· Hydraulic Station --------------------------------------- 1 Unit

· PLC computer control --------------------------------- 1 Unit

· Output table ----------------------------------------------- 1 Unit

Working Flow


Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Feature & Advantages of Metal Roof Panel Roll Forming Machine:

1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Considerate service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness

IBR Corrugated Roof Sheet Roofing Glazed Tiles Roll Forming Making Machine 0.2-0.8mm Thickness
