Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H
Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H
Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H
Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H
Specifications
Brand Name :
JN
Model Number :
Movable
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
200 sets per month
Delivery Time :
within 20 days
Packaging Details :
Usually wooden case for small size, Container for big size.
Belt Width :
500/600/650/800/1000mm
Conveying Distance :
3-30m
Voltage :
220/380/415V/440V
Work environment humidity :
-40℃~45℃
Continuous working time :
not less than 24 hours
Belt Speed :
0.80/1.00/1.25/1.60/2.00/2.50m/s
Lifting Height :
0.8~12.5m
Capacity :
25~550m³
Description

Heat Resistant Flat Rubber Belt Conveyor For Coal Mining 130 - 320 T/H

Specification:

Model JN75-B500-10M
HS 8428330000
Belt Width 500mm
Conveyor Length 10 meters
Belt Speed 1.0m/s-2.0m/s
Capacity 80 Tons/Hour
Power 4KW
Voltages 220V/230V/380V/415V

Belt conveyor is the conveying equipment that has big throughput, low operating cost, wide range of application , According to the support structure, there are fixed type and mobile type. According to the conveying belt, there are rubber belt, plastic belt and steel belt.

Features

1.Simple structure and easy installation.

2.Low rate of breakdown and adapt to different use condition.

3.Various design form can meet different industries.

4.Cheap cost and long working life.

5.Easy move with special wheels.

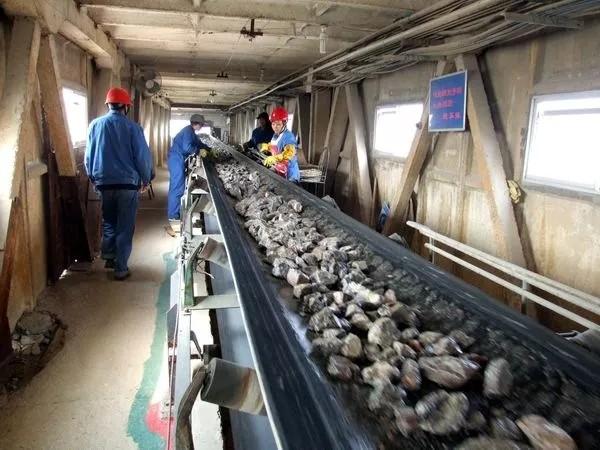

Fixed belt conveyor widely used in mining,gravel field, metallurgy, building materials,chemical industry,mineral processing,coal mining and other industries.It can convey bulk material like coal,cement,sand,cereal etc.And can convey lump material,such as rock,also it can convey 50kg bags.

Parameter Sheet:

Belt Width (mm) Conveyor Length
(m)		 Power(KW) Speed
(m/s)		 Capacity (Tons/hour)
500 <12 3 1.3-1.6 78-191
12-20 4-4.5
20-30 5.5-7.5
650 <12 4 1.3-1.6 131-323
12-20 5.5
20-30 7.5-11
800 <6 4 1.3-1.6 278-546
6-15 5.5
15-30 7.5-15
1000 <10 5.5-7.5 1.3-2.0 435-853
10-20 7.5-11
20-40 11-22
1200 <10 7.5 1.3-2.0 655-1284
10-20 11
20-40 15-30
1400 <10 11 1.3-2.0 893-1745
10-20 18.5
20-40 22-37
1600 <10 15 1.3-2.0 1069-2195
10-20 22
20-40 30-45

Notes:The parameter above is just for reference.More models please inquiry us directly.

How to confirm the model:

1.The capacity that you require?

2.Whats the material to be conveyed?

3.The conveying length and the width of the belt?

4.The conveying angle?
