3m* 2m * 2m Steel Safety Construction Cage , Scaffolding Step Ladder Cage With Safey Wire Guard
3m* 2m * 2m Steel Safety Construction Cage , Scaffolding Step Ladder Cage With Safey Wire Guard
3m* 2m * 2m Steel Safety Construction Cage , Scaffolding Step Ladder Cage With Safey Wire Guard
3m* 2m * 2m Steel Safety Construction Cage , Scaffolding Step Ladder Cage With Safey Wire Guard
Specifications
Brand Name :
JN
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2000 PCS per month
Delivery Time :
withhin 15 days
Packaging Details :
Seaworthy Package
Model Number :
4m*2m*2m or 3m*2m*2m
Material :
Q235
Cage dimension :
3m*2m*2m or 4m*2m*2m
Max. working height :
100m
Load capacity :
2000kgs
Type :
Box / Closed Type With Satety Wire Guard
Application :
Highway And Bridge Engineering Foundation Pit Construction
Description

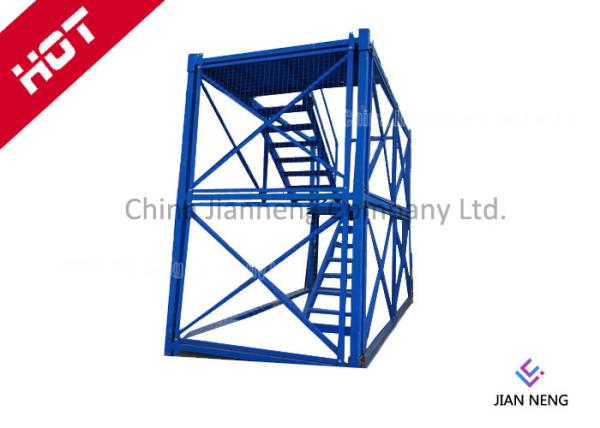

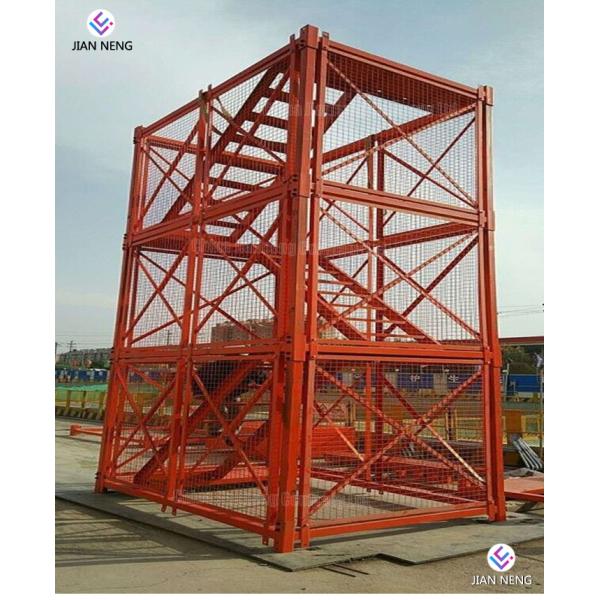

3m* 2m * 2m Steel Safety Construction Scaffolding Step Ladder Cage With Safey Wire Guard

Brief Introduction

Construction scaffolding safety step ladder cage is mainly composed of steel frame, ladder, handrail and wire guard, which has high loading capacity and stability. Widely used in the construction of bridge, subway construction and highway, providing safe and easy access to higher level of scaffolding platform.

Feature

1.Construction Ladder Cage is made of Q235 steel pipe which has high loading capacity and stability.

2. Provides easy access to higher level of scaffolding platform.

3. Welded by CO2 arc which can be used with any kinds of scaffolding system for stepping high.

4. Weled with hooks which make the step ladder more sturdy .

5. Wide and strong enough for walk through.

6. Specifications are available as your requirement .

Technical Parameter

 Ladder cage dimension (m)

 3*2*2

 Main frame square tube (mm)

 80*80*3.75

 Connection framework square tube (mm)

 100*100*5.5

 Stair tread & Platform diamond plate (mm)

 3

 Connection of stair & frame (mm)

 80*80*5

 Angle steel of protective netting (mm)

 50*4

 Diameter & mesh size of protective netting (mm)

 3*50*50

 Weight of each meter (KGS)

 230
