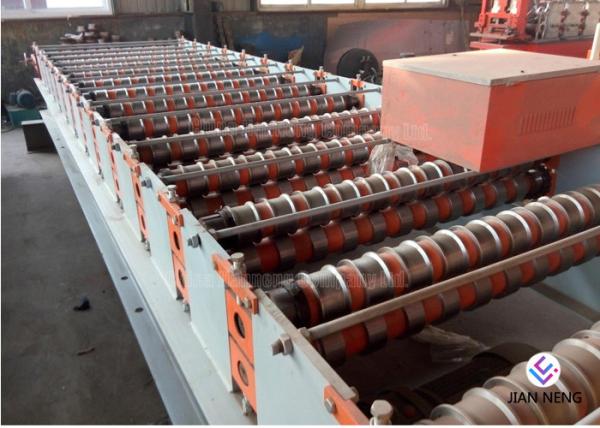

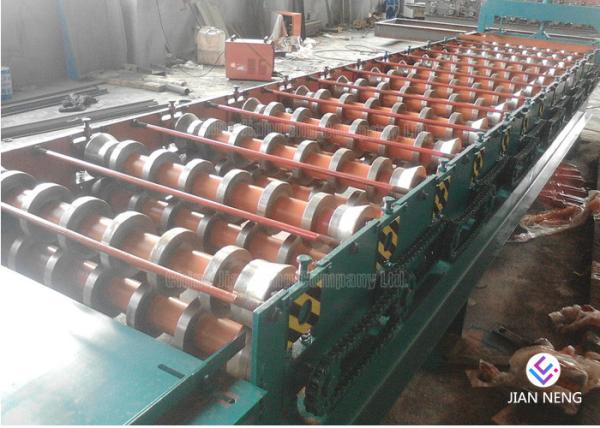

Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.4-0.7mm
Yield Strength :
235MPa 345MPa And 550MPa.
Automatic: :
PLC controlled, full automatic
Usage :
Roof / Wall
Rolling shaft material :
45 # Steel
Speed :
8-15M/Min
Description

Customized Metal Roofing Roll Forming Machine Color Coated Surface Treatment

Description & Application :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.

Specification / Technical Parameter

Series Details Parameter


Roll forming machine


Guiding&leveling device

 Placed on the machine by seller
Shaft numbers:11pcs
Shaft diameter:80mm
Shaft material: 45# steel
Drive power:5.5kw
Rolling shaft material 45# STEEL
Shaft diameter 90mm
Roller material GB-Cr15 with heat treatment
Rolling station 15 stations
Machine frame Cast iron vertical structure
Machine body 400# H steel welded
Bearing Chinese famous brand Harbin
Work power 22kw


Control system

 Frequency brand Delta from Taiwan
PLC brand Delta from Taiwan


Hydraulic system

 Work type Hydraulic
Punch mode Four pillar hydraulic powered punching system
Driving method By Cylinder
Motor power 22kw
Mold material GB-Cr12
Mold quantity 2 sets
Punching frame 1 set
Press power 80T
Cutting length tolerance ±1.5mm

Components of Metal Roofing Machine / Curving Machine

1.Manual De-coiler or Hydraulic De-coiler 5t (optional)

2.Feeding device

3.Straightenting device

4.Roll Forming Machine

5.Cutting device

6.PLC control system

7.Exit Rack

8.Hydraulic Station

Feature & Advantages:

Customized Metal Roofing Roll Forming Machine Color Coated Surface Treatment

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. Powerful driving system: big inch train,or gear box driving system.

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine

Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine

Customized Metal Roof Roll Forming Machine , Color Coated Surface Roof Forming Machine
