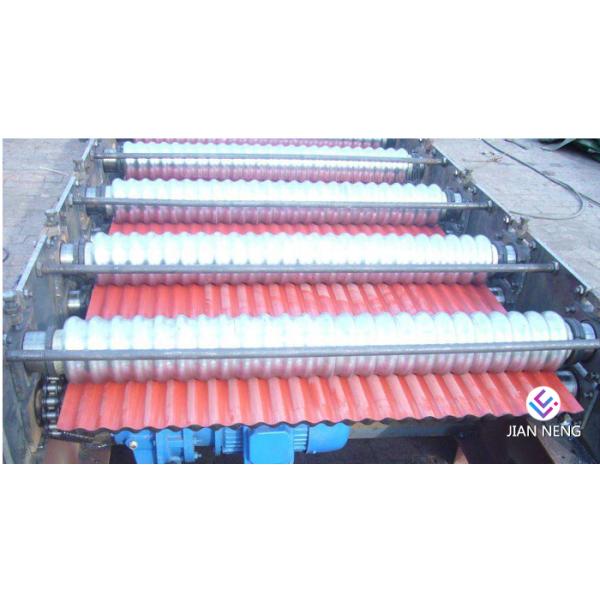

Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment
Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment
Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment
Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 30 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.3-0.8mm
Working speed :
8 - 25m/min
Automatic: :
Auto PLC Control Hydraulic
Material :
GI,PPGI.AL
Roller Material :
45# steel
Name :
Automatic Color Steel Sheet Roller Shutter Roll Forming Machine
Description

Automatic Color Steel Sheet Roller Shutter Roll Forming Machine With 0.3 - 0.8mm Thickness ​


Description and Application:

Automatic Color Steel Sheet Roller Shutter Roll Forming Machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.

Rolling shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses.

Main Material Used

1. Material: Color steel ,galvanized steel or Aluminum
2. Feeding width:300mm
3. Material thickness:0.8-1.5mm
4. Yield strength:235-450mpa

Technical Parameter:

Suitable material color steel sheet;0.3-0.7mm,
Working speed about 8-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 3Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)
Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment

Automatic Cold Roof Forming Machine , 0.3 - 0.8mm Thickness Roll Forming Equipment













































Product tags

roofing roll forming machine

,

roofing sheet roll forming machine

,

metal sheet roof roll forming machine
