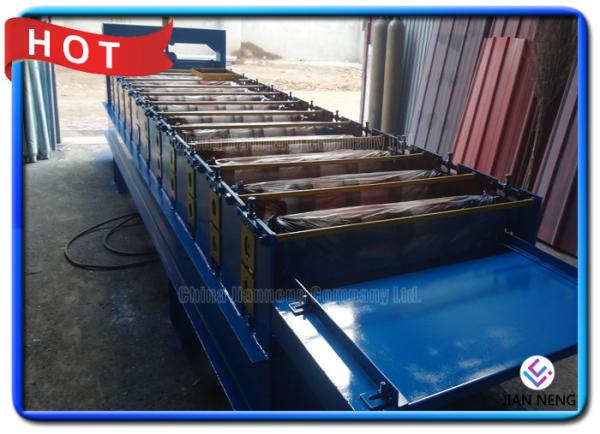

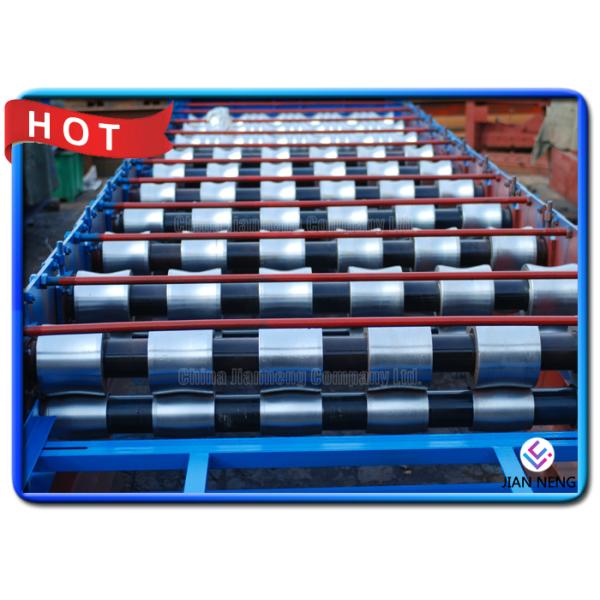

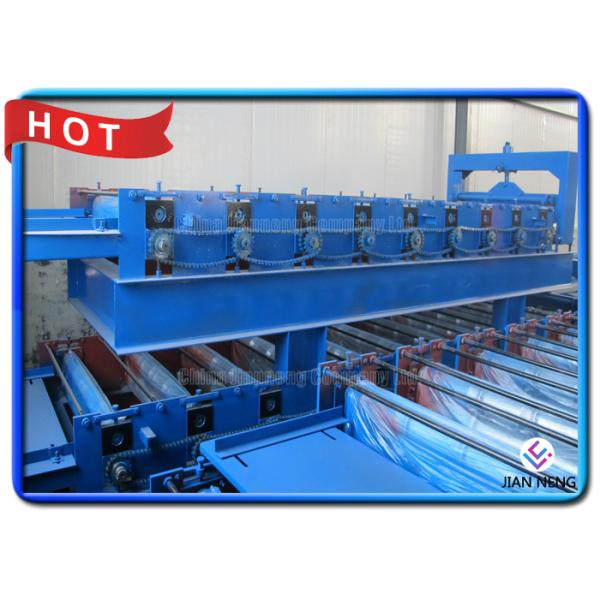

0.3-0.8mm Thickness Metal Rollforming Systems , Wall And Roof Steel Roofing Machine
0.3-0.8mm Thickness Metal Rollforming Systems , Wall And Roof Steel Roofing Machine
0.3-0.8mm Thickness Metal Rollforming Systems , Wall And Roof Steel Roofing Machine
0.3-0.8mm Thickness Metal Rollforming Systems , Wall And Roof Steel Roofing Machine
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.3-0.8mm
Material Tension Grade :
550MPa
Automatic: :
Auto PLC Control Hydraulic
Forming Rollers :
45# Steel, Hard Chrome Coated
Weight :
8000KGS
Usage :
For wall and roof
Description

0.3-0.8mm Thickness Corrugated Roll Forming Machine For Wall And Roof Use

Application:

This wall & roof panel roll forming machine used as the roofing of factory, warehouse. It is easy to realize the reliable and safety installation.

Working Flow of Machine

Decoiler--- Feeding---- Roll Forming ---- Cutting ---- output

Feature:

Different roof panel machines can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.
The complete corrugated roof panel machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the wave panel machine produces it automatically. The machines are easy to operate and running stable.

Specification / Technical Parameter

Suitable material color steel sheet;0.3-0.8mm,
Working speed about1.5-5m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)

Advantages:

0.3-0.8mm Thickness Corrugated Roll Forming Machine For Wall And Roof Use

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5. Automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. Powerful driving system: big inch train,or gear box driving system.

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
