IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power
IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power
IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power
IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power
Specifications
Brand Name :
JN
Model Number :
Customize
Certification :
CE ISO
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 Sets per month
Delivery Time :
about 20 days
Packaging Details :
Seaworthy Packing
Material Thickness :
0.3-0.8mm
Yield Strength :
235MPa 345MPa And 550MPa.
Automatic: :
PLC controlled, full automatic
Material :
PPGI,Color Steel,GI
Voltage :
380V - 440V
Usage :
Roof sheet, Wall Panel
Main Power :
5.5KW
Forming Speed :
8 ~ 12m/min
Cutting :
Hydraulic
Control system :
PLC
Description

South Africa IBR 686 And Corrugated 762 Roofing Machine Roll Forming Machine 4KW

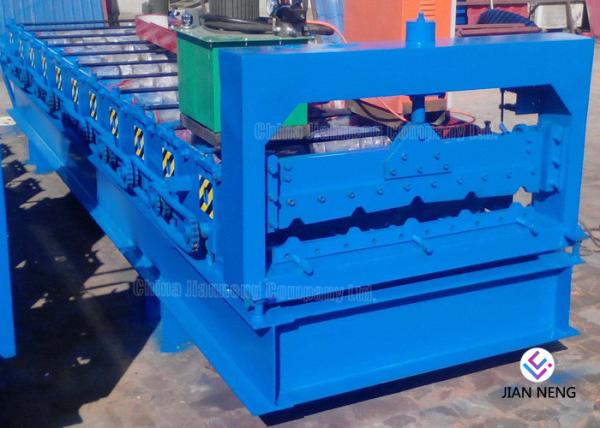

Description of Roofing Building Making Machine:

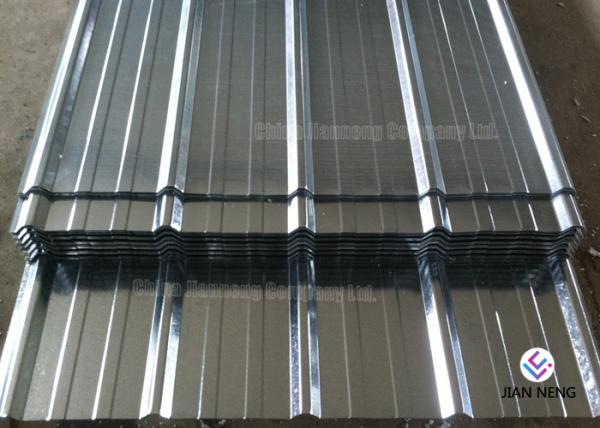

The GI / PPGI wall and roof roll forming machine for cold roll forming can produce various of galvanized and prepainted steel roof and wall panel, the panels are widely used as the roof and wall of building constructions, such as warehouse, garage, gymnasium, exhibition center, cinema, theatre wall and roof buildings, etc.

The wall and roof roll forming machine can work 16-24 hours per day, motor perform good.

(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 18groups

(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 350 H-section steel

(8) Motor Power: 5.5kw

(9) Driven type: 1.0＂Chain

(10) Speed: 4m/min

Specification / Technical Parameter

1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.8mm
3 Feeding Coil width 1000mm/1200mm
4 Effective width 800mm/1000mm
5 Under frame 350H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7 Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm
8 Thickness of middle plate Guide pillar memorial archway
9 Forming stations 16
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 4kw with Cycloidal reducer, Lichao, Shanghai
12 Power of pump station 4kw, Lichao, Shanghai
13 Forming speed About 15-20m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN / Mitsubishi, Japan
16 Material of cutting blade Cr12Mov, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).
18 Switch CHNT

Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.

IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power

IBR 686 And Corrugated 762 Roofing Sheet Roll Forming Machine 4KW Power
