Truck / Taxi 4G GPS Navigation Tracker 5M3 shockproof For Fleet Management
Truck / Taxi 4G GPS Navigation Tracker 5M3 shockproof For Fleet Management
Truck / Taxi 4G GPS Navigation Tracker 5M3 shockproof For Fleet Management
Truck / Taxi 4G GPS Navigation Tracker 5M3 shockproof For Fleet Management
Specifications
Brand Name :
UniStrong
Model Number :
E9650-10
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
THD
Packaging Details :
GIFTBOX PACKAGE
Host cable :
M１～M５interface cable
M1 PORT :
1０pin Micro connector Female B＋，Ｂ－，ＡＣＣ（９～３６V）
M2 PORT :
８pin Micro connector male AHD camera
M３ PORT :
８pin Micro connector Female AHD camera
M４ PORT :
８pin Micro connector Female LVDS camera
M５ PORT :
１０pin Micro connector male FPD LINK LCD Monitor transmission RS232
SIM Card :
3G/4G SIM card
TF Card :
Extended external storage
GNSS :
GPS+BD,Ublox8030
GNSS antena interface :
Fakra C interface*1
WiFi antena interface :
Fakra K interface*１
4G antena interface :
Fakra D interface*1
Description

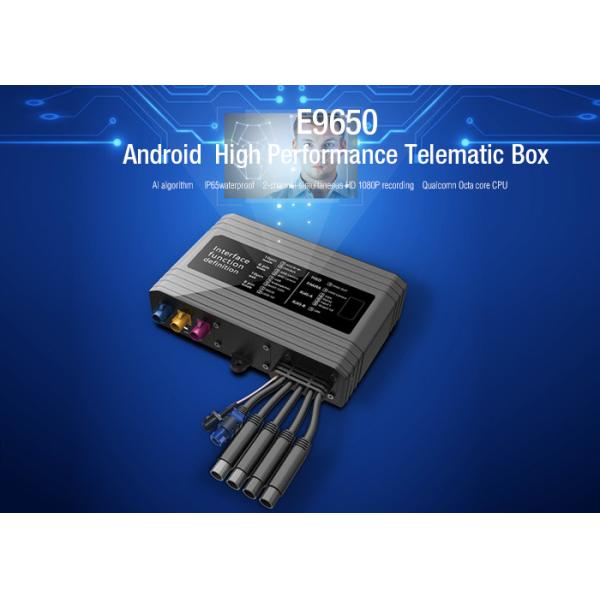

E9650 Truck/Taxi 4G navigation vehicle tracker for fleet management ADAS and face AI algorithm

Product feature:

1. Device IP65 rated with 5M3 shockproof and shockproof certification

2. 9-36V wide voltage and wide temperature operation of the whole machine (-20 ~70 °C/)

Passed CE, E-mark RoHs certification

Product application

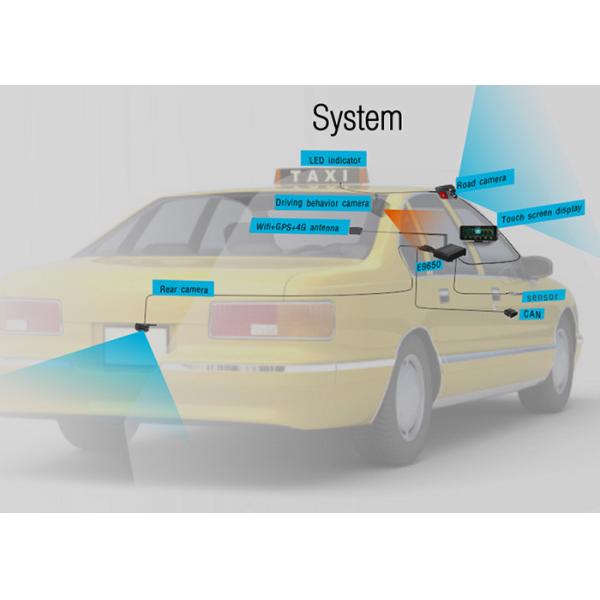

1. E9650 is designed to allow vehicle owners to track the location of their properties over smart phones and provide real-time cartracking for vehicles or entire fleets..

2. The E9650 telematics box provides vehicle monitoring and fleet management application solutions to assist fleet owners to track truck movement resources and manage truck scheduling more effectively.

3. The E9650 has functions like ACC detection, vibration alarm, SOS emergency call, remotely cut-off petrol/electricity, if connected with microphone, the user can hear what is happening around vehicle.

Specification

Product appearance
Item Parameter Standard configuration
IP level 　 IP65
Indicator 　 １:GPS　LED＊１　Yellow
２:４G　LED＊１　Green
３:WiFi　LED＊１　Red
Hardware configuration
Item Parameter Description
CPU Type Qualcomm MSM8953,Octa core ; Cortex A53 64bit processor
Frequency 2.0GHz
GPU Type Adareno 506
RAM DDR3 2GB LPDDR3
ROM EMMC 16GB EMMC5.0
SENSOR Accelerometer 3-aixs Accelerometer
WLAN Communication
Type Parameter Description
WIFI WIFI module 2.4GHz/5.8GHz；802.11 a/b/g/n/ac
Bluetooth In-build BT2.1+EDR/3.0/4.1/4.2 BLE
GNSS In-build GPS+BD,Ublox8030
3G/4G In-build
Module:EC60-CE cat6 (LTE 4G China)
FDD LTE:B1/B3/B5/B8
TDDLTE:B34/B38/B39/B40/B41
TDSCDMA:B34/B39
WCDMA :B1/B8
CDMA2000 : 1X/EVDO:BC0
GSM:900/1800MHz
M1～M５Cable interface function extension
Type Parameter Description
M1 PORT (1０pin Micro connector Female) Extension B＋,Ｂ－,ＡＣＣ(９～３６V)
M2 PORT (８pin Micro connector male) Extension AHD camera
M３ PORT(８pin Micro connector Female) Extension AHD camera
M４ PORT(８pin Micro connector Female) Extension LVDS camera
M５ PORT(１０pin Micro connector male) Extension FPD LINK LCD Monitor transmission
RS232
Other extension interface
Type Parameter Description
SIM Card 3G/4G SIM card nano-SIM card interface x1
TF Card Extended external storage Supported
GNSS antena interface Fakra Fakra C interface*1
WiFi antena interface Fakra Fakra K interface*１
4G antena interface Fakra Fakra D interface*1
Accessories
Type Parameter Description
Host cable 　 M１～M５interface cable
GNSS/4G/WiFI antena External antena GNSS/4G/WiFI Three-in-one antenna
Camera LVDS camera LVDS１０８０P camera＊１
Software configuration
Type Parameter Description
Operating system Version of OS Android 7.1
Package
Package Package requirement Logo,Manual:Chinese-English
SN Device SN Device SN:E9650CN1805000001~E9650CN1805000043,05 means production week
Certification
Type Parameter Description
Certification 3C Yes, support
ROHS Yes, support
CE Yes, support
E-mark We can get E-mark but we will check the cost
Reliability
Type Parameter Description
Working environment Working Temperature -20℃~+70℃ Humidity:0%~90%RH
Storage Temperature -30 °C to 80 °C
Vibration ISO16750 / MIL-STD-810G

Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;

FAQ
1. Question: How to contact you for detail information?
Answer: You can contact us through "Contact" button. Or you can write email to us at: mk.hu@unistrong.com

2. Question: Are you manufacture?
Answer: Yes, we are the original manufacture. We have 50-person R&D team to support various customer’s demands.

3. Question: Will the sample provide software SDK?
Answer: Yes, we will support software debug according to your demands and requirements.

4. How fast you could make the delivery?
Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.
