Specifications
Brand Name :
UniStrong
Model Number :
E9650-18
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
THD
Packaging Details :
GIFTBOX PACKAGE
application :
It can be used in many fields
CAN interface :
CAN 2.0 support SAEJ1939 and ISO15765 protocols To collect data as below
Safety performance :
20%
Save time :
25%+
Working time :
20%+
ROM :
16GB EMMC5.0
WIFI module :
2.4GHz/5.8GHz;802.11 a/b/g/n/ac
Bluetooth :
BT2.1+EDR/3.0/4.1/4.2 BLE In-build
GNSS :
GPS+BD,Ublox8030
Description

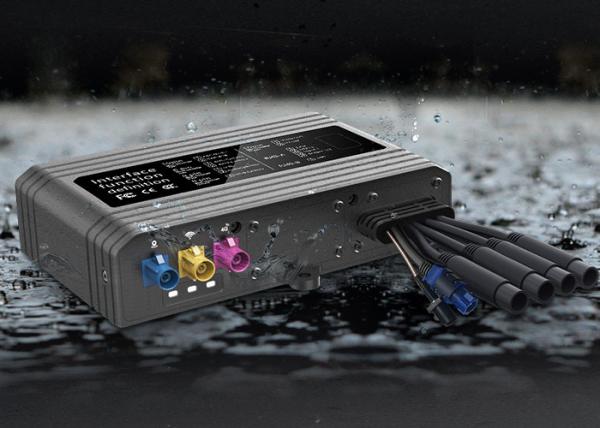

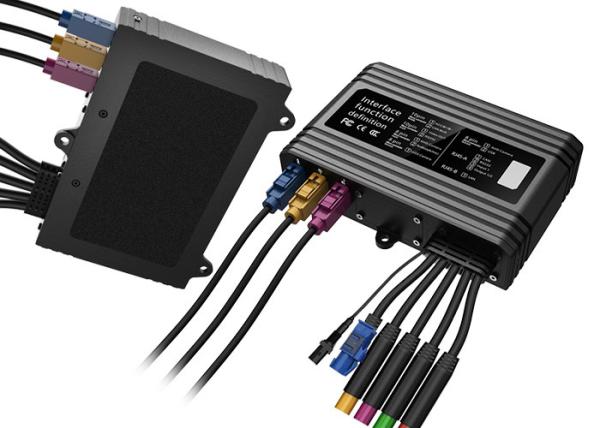

E9650 Vehicle telematics remote tracking and monitoring, vehicle control, security detection 4G LTE T-box for Vehicle

Product feature:

1. Android 9.0 operation system, which features OTA update capabilities. This gives users the ability to remotely upgrade devices with the latest security updates, bug fixes, system patches, cloud management and others.

2. 4G,GPS,WIFI indicator equipped allows user understand working status.

3. Professional industrial design, using Amphenol connectors, Fakra connectors for waterproof and steady connections.

Product application

1. 9-36V wide voltage and wide temperature operation of the whole machine (-20 ~70 °C/)

2. The E9650 has functions like ACC detection, vibration alarm, SOS emergency call, remotely cut-off petrol/electricity, if connected with microphone, the user can hear what is happening around vehicle.

3. Through the professional industrial design, wide operating temperature range and extremely powerful mechanical design, it supports the execution of tasks in harsh working environments.

Specification

Product appearance
Item Parameter Standard configuration
IP level   IP65
Indicator   1:GPS LED*1 Yellow
2:4G LED*1 Green
3:WiFi LED*1 Red
Hardware configuration
Item Parameter Description
CPU Type Qualcomm MSM8953,Octa core ; Cortex A53 64bit processor
Frequency 2.0GHz
GPU Type Adareno 506
RAM DDR3 2GB LPDDR3
ROM EMMC 16GB EMMC5.0
SENSOR Accelerometer 3-aixs Accelerometer
WLAN Communication
Type Parameter Description
WIFI WIFI module 2.4GHz/5.8GHz;802.11 a/b/g/n/ac
Bluetooth In-build BT2.1+EDR/3.0/4.1/4.2 BLE
GNSS In-build GPS+BD,Ublox8030
3G/4G In-build
Module:EC60-CE cat6 (LTE 4G China)
FDD LTE:B1/B3/B5/B8
TDDLTE:B34/B38/B39/B40/B41
TDSCDMA:B34/B39
WCDMA :B1/B8
CDMA2000 : 1X/EVDO:BC0
GSM:900/1800MHz
M1~M5Cable interface function extension
Type Parameter Description
M1 PORT (10pin Micro connector Female) Extension B+,B-,ACC(9~36V)
M2 PORT (8pin Micro connector male) Extension AHD camera
M3 PORT(8pin Micro connector Female) Extension AHD camera
M4 PORT(8pin Micro connector Female) Extension LVDS camera
M5 PORT(10pin Micro connector male) Extension FPD LINK LCD Monitor transmission
RS232
Other extension interface
Type Parameter Description
SIM Card 3G/4G SIM card nano-SIM card interface x1
TF Card Extended external storage Supported
GNSS antena interface Fakra Fakra C interface*1
WiFi antena interface Fakra Fakra K interface*1
4G antena interface Fakra Fakra D interface*1
Accessories
Type Parameter Description
Host cable   M1~M5interface cable
GNSS/4G/WiFI antena External antena GNSS/4G/WiFI Three-in-one antenna
Camera LVDS camera LVDS1080P camera*1
Software configuration
Type Parameter Description
Operating system Version of OS Android7.1
Package
Package Package requirement Logo,Manual:Chinese-English
SN Device SN Device SN:E9650CN1805000001~E9650CN1805000043,05 means production week
Certification
Type Parameter Description
Certification 3C Yes, support
ROHS Yes, support
CE Yes, support
E-mark We can get E-mark but we will check the cost
Reliability
Type Parameter Description
Working environment Working Temperature -20℃~+70℃ Humidity:0%~90%RH
Storage Temperature -30 °C to 80 °C
Vibration ISO16750 / MIL-STD-810G

Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;

FAQ
1. Question: How to contact you for detail information?
Answer: You can contact us through "Contact" button. Or you can write email to us at: mk.hu@unistrong.com

2. Question: Are you manufacture?
Answer: Yes, we are the original manufacture. We have 50-person R&D team to support various customer’s demands.

3. Question: Will the sample provide software SDK?
Answer: Yes, we will support software debug according to your demands and requirements.

4. How fast you could make the delivery?
Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.
