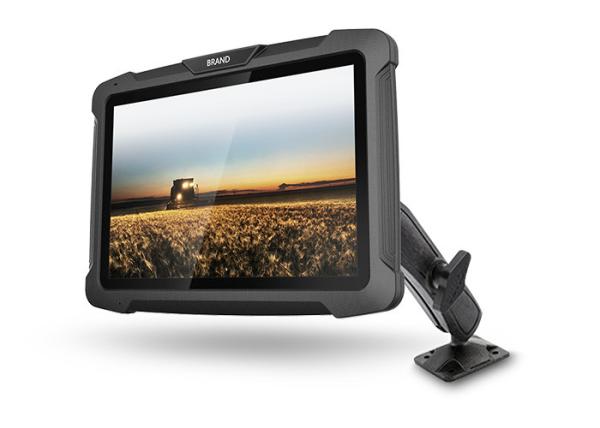

2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
2GB RAM 1.8GHz 10.1 Inch Rugged Android Auto Car Tablet For Car Navigation
Specifications
Brand Name :
UniStrong
Model Number :
E9668-A3
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
TBD
Packaging Details :
GIFTBOX PACKAGE
CPU :
Hardware configuration Qualcomm SDM450,Octa-core ARM Cortex-A53 64-bit CPU Qualcomm SDM450,Octa-core ARM Cortex-A53 64-bit CPU
main frequency :
1.8GHz
RAM/ROM :
2GB/16GB
GPU :
Qualcomm Adreno 506 GPU
WIFi :
2.4G+5G WiFi,IEEE802.11 g/b/n /ac
Working temperature :
-20℃~+70℃ humility:0%~90%RH"
Storage temperature :
-30℃ ~ 85℃
Description

E9668-A Android OS vehicle RAM mounted terminal IP66 waterproof tablet built in GPS 4G communication

Product application

E9668 highly meets the demand in agricultural/industrial display needs;

Product advatages


1. E9668 is a10.1-inch highlight Android display terminal dedicated to vehicles;
2. Qualcomm 8-core 64-bit processor with main frequency 1.8GHZ;
3. Highlight display makes it easily visible under sunshine;

Product features /Specification

Product appearance
Type Detail Standard configuration
IP Rate Waterproof IP66
LCD Dimension 10.1",1280*800 with 750cd/M2
TP Touch panel Support 10 points capacitive screen,G+G
Speaker Build in 4Ω/2W
Super capacitor Build in 5.4V/10F
Hardware cnfiguration
Type Detail Standard configuration
CPU Model Qualcomm SDM450,Octa-core ARM Cortex-A53 64-bit CPU @ 1.8 GHz
RAM 　 2GB
ROM 　 16GB
Sensor 　 Accelerometer
Wireless communication
Type Detail Standard configuration
WIFI WIFI module 2.4G+5G WiFi,IEEE802.11 g/b/n /ac
Bluetooth built in BT2.1+EDR/3.0/4.1/4.2 BLE
GNSS built in GPS+BD
3G/4G built in
Module:SC60CEYB-16GB-UGAD cat6 (LTE 4G CHINA)
LTE FDD :B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
TD-SCDMA:B34/B39
WCDMA :B1/B8
CDMA2000/EVDO:BC0
GSM:900/1800MHz

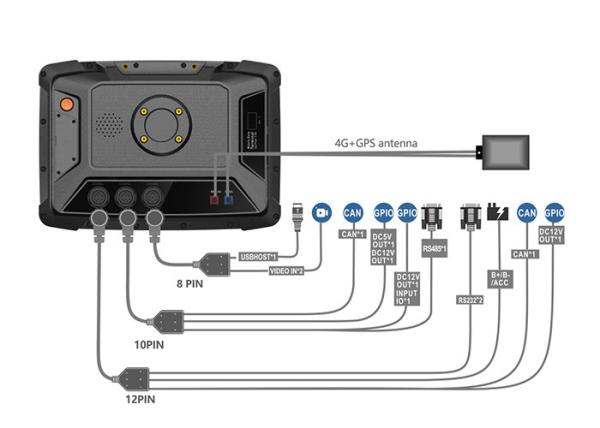

M1,M2,M3 port function extension
Type Detail Standard configuration
M1 PORT(12pin) Extend RS232 UART*2
DC11V output 500mA*3
Input IO(9-36V)*1
RS485*1
M2 PORT(10pin) Extend CAN *2
1 input IO(2-36V)*1
power input,B+,B- ,ACC (9-36V input)
M3 PORT(8pin) Extend USB-HOST*1
Camera*2
Interfaces
Type Detail Standard configuration
USB device USB Micro-USB X1
USB HOST USB HOST USB type-A x1
Double SIM Card 3G/4G SIM card Standard SIM card interface x1+E-SIM card
TF Card TF Support SDHC*1 max:128GB
GNSS Fakra Fakra C interface*1
4G Fakra Fakra D interface*1
M1,M2,M3 port Extend 12pin/10pin/8pin
Button button Power button
Accessory
Type Detail Standard configuration
M1 cable full function E9638_12pin full functional cable
M2 cable full function E9638_10pin full functional cable
M3 cable full function E9638_8pin full functional cable
GNSS antenna external 1575.42±1.023MHZ 1602±8MHZ, DC current:10mA,FAKRA C head；80cm length
LTE antenna external 4G LTE,central frequency 824MHz~960MHz,1710MHz~2200MHz,2300MHz~2700MHz；FAKRA D head,80cm length
Camera Optional Optional 1080P AHD camera
Software Configuration
Type Detail Standard configuration
OS version Android 9.0
Reliability test
Type Detail Description
Working environment Working temp -20℃~+70℃ humidity:0%~90%RH
Storage temp -30 °C to 85 °C
vibration ISO16750 / MIL-STD-810G


Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;

FAQ
1. Question: How to contact you for detail information?
Answer: You can contact us through "Contact" button. Or you can write email to us at: mk.hu@unistrong.com

2. Question: Are you manufacture?
Answer: Yes, we are the original manufacture. We have 50-person R&D team to support various customer’s demands.

3. Question: Will the sample provide software SDK?
Answer: Yes, we will support software debug according to your demands and requirements.

4. How fast you could make the delivery?
Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.
