Specifications
Brand Name :
UniStrong
Model Number :
E9651-20
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
20000
Delivery Time :
THD
Packaging Details :
GIFTBOX PACKAGE
OS :
Android 9.0 (Quectel SC600Y)
Video Format :
mp4
Front cam TP :
5point capacitor screen,G+G
LCD Size :
4'' Screen
Car charger :
OBDII to usb type C (3M length)
Front cam display :
4" , 480*800, 16:9
WIFI :
support
BT :
Support Input: Micro USB Input: MicroSD Card Slot Input: SIM card Slot Standard accessory:OBD II cable (type C),installation tool, user manual
Description

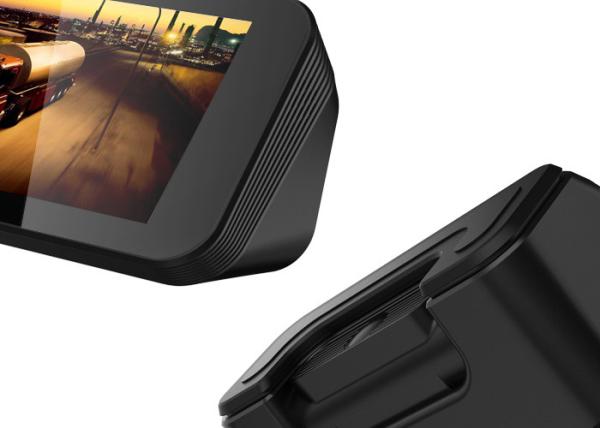

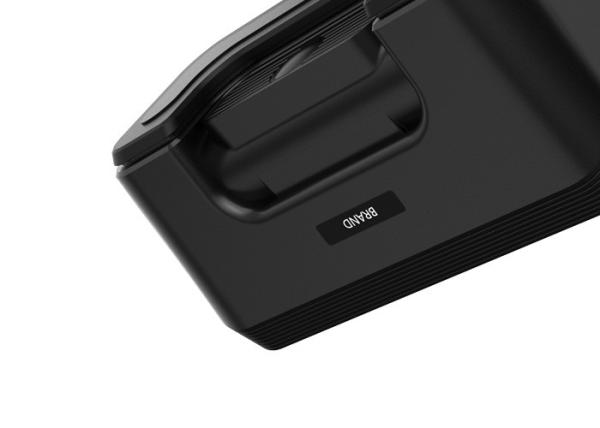

ADAS+DMS+face recognize high performance 4G DashCam with parking monitoring

Product feature:

1. 4inch high light touch screen, Infrared night vision,the video is clearly visible in the dark environment in the car.

2. Video Format H265,Save 40% storage space than H264.same image quality,save half of the data for network transmission.

3. Support dual TF card recording,Support 32G/64G/128G/256G/512G high speed TF card.

4. Special file system,loop recording,ensure the safety and stability of video files.

Specification

Appearance
Item Description Specification
LCD Front cam display 4" , 480*800, 16:9
TP Front cam TP 5point capacitor screen,G+G
Camera Front Sony IMX 291 sensor, F1.8,FOV140°
1080P @30fps
Lens Lens Sunny Optical
Camera Rear Sony IMX307 FOV140°
1080P @30fps
Speaker Built in 8Ω/1W
LED Built in LED indicator
Mic Built in Mic
Button Built in Power / quick recording
Hardware
Item Description Specification
CPU type Qualcomm SDM450 Octa-Core Cortex-A53
speed Max 1.8GHz
GPU type Adreno 506
RAM DDR3L 2GB LPDDR3
ROM Emmc 16GB EMMC5.1
G-sensors sensors 3-axis accelerometer
Wlan
Item Description Specification
Wifi Built in 2.4G+5.8GHz WiFi,IEEE802.11 g/b/n/ac
Bluetooth Built in BT2.1+EDR/3.0/4/1/4.2/LE
GPS Built in GPS+GLONASS (6m)
3G/4G Built in LTE FDD :B2/B4/B5/B7/B12/B13/B14/B25/B26 LTE TDD :B41 WCDMA:B1/B2/B5/B8 GSM:850/1900MHZ
Interfaces
Item Description Specification
USB OTG OTG Micro USB x1
TF card External Support SDHC/SDXC x1 Max:128G
SIM card Sim slot Standard SIM
Accessory(Optional)
Item Description Specification
Car charger Standard OBDII to usb type C (3M length)
USB cable Standard USB cable(0.5M length)
Installation tool Standard Installation tool for routing connection wire
SD card Optional micro class 10 , Max 256GB
Software
Item Description Specification
OS OS version Android 9.0
Reliability
Item Description Specification
Reliability Working temperature ‘-20 °C to 70 °C
Storage temperature ’-30 °C to 85 °C
Humidity Humidity: 95% Non-Condensing

Service

1. Standard free 1 year warranty for the product;

2. Sample test and debug and technical support;

3. ODM/Customized requirements assessment and quotation;

4. Product ID design ;

5. For certain quantity order, free spare parts support;

6. We have an active team with more than 30 R&D engineers, we will provide qualified service throughout the process.

FAQ

1. Question: How to contact you for detail information?

Answer: You can contact us through "Contact" button. Or you can write email to us at: mk.hu@unistrong.com

2. How fast you could make the delivery?

Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.

3. Q: Can i choose multiple function into 1 device?

A: Yes, you can choose multiple function into one device, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

4. Q: How to order and pay?

A: We accept T/T (bank transfer),

5. Q: What's Your Products Warranty?

A: We Offer 12 Months Warranty after shipment sent.

6. Q: Can I extend the warranty?

A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

7. Q: How long it will take for delivery?

A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

8. Q:How to repair the device if any problem ?

A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.

9. Q: Can you do customized and preload our software?

A:Yes, We are professional rugged device manufacture with 11 years experiences and our technical team could do customized requirements.

10. Q: Could we customize brand name (logo) ?
A:Yes, we have 10 years professional experience on OEM&ODM for mobile data terminal device.

11. Q:How are quality control and warranty?

A: All products have been 100% strictly Quality Checked in the house before packing.
